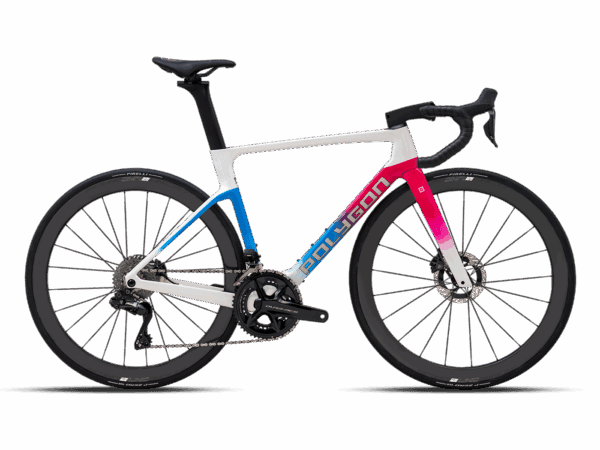

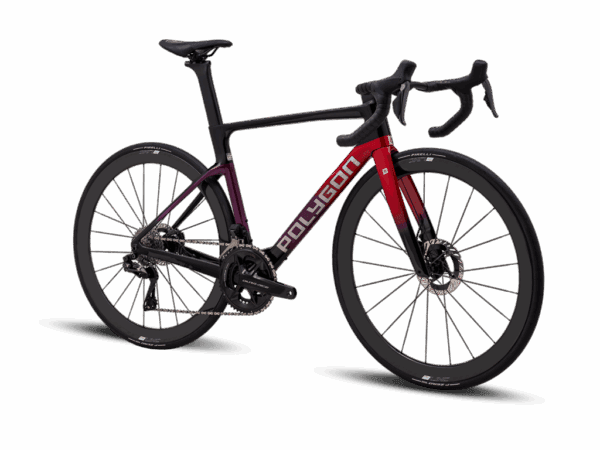

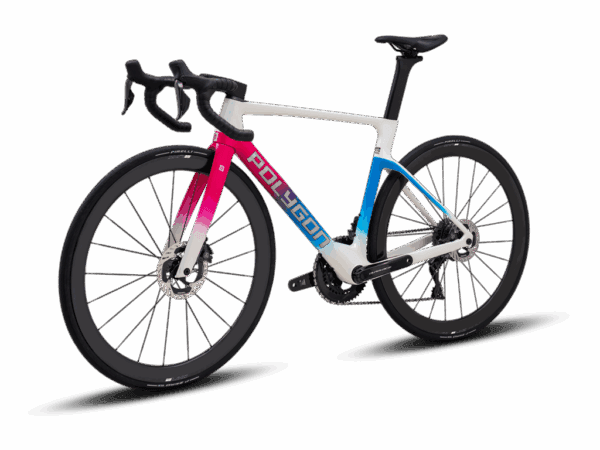

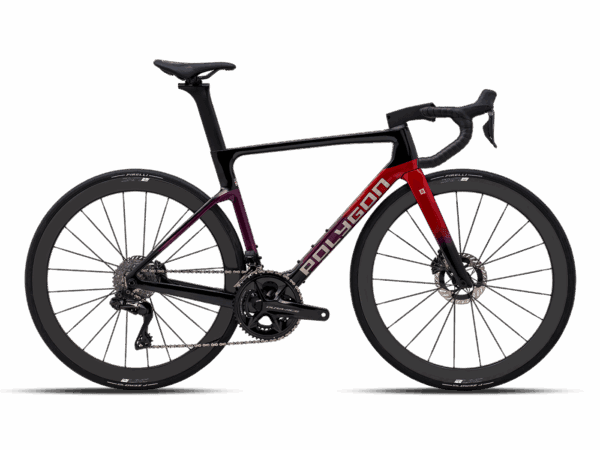

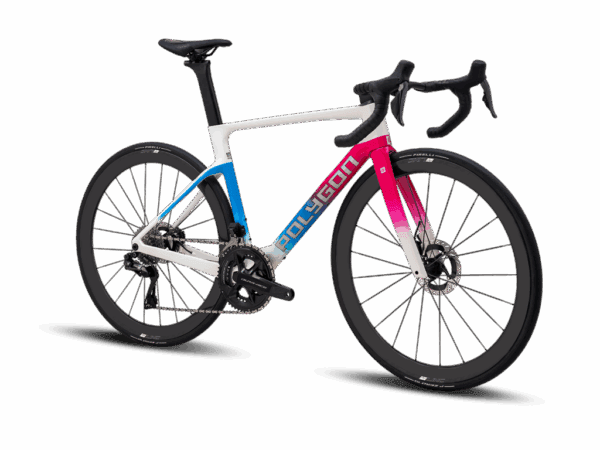

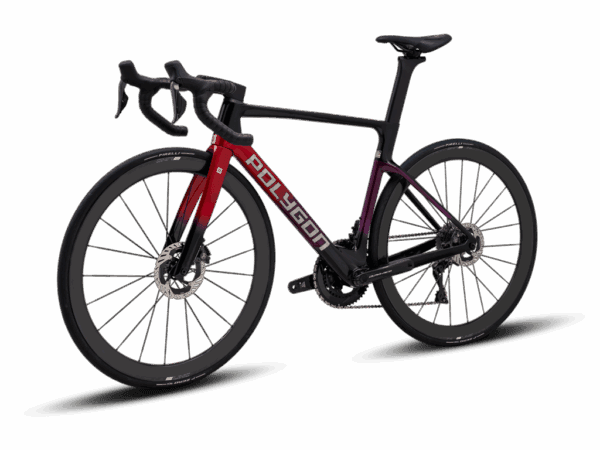

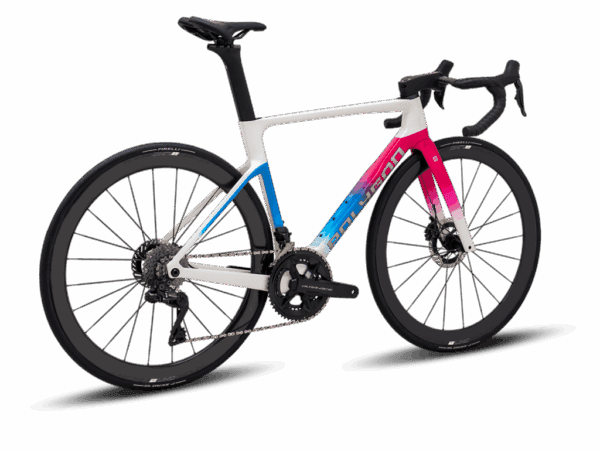

Polygon Helios A9 Di2

kr 72999,00

En proffklar landeveissykkel med Shimano Dura-Ace Di2, karbonhjul, og en stiv, lett ACX-karbonramme. Perfekt for ryttere som ønsker presisjon, fart og effektivitet – både i ritt og på trening. 7.52 kg

Frame & Fork ACX Performance UCI Approved

Shimano Dura-Ace Di2 2×12 Speed Drivetrain

Pirelli Pzero Road TLR 7 700x28C Tire

Linc Beta Carbon Wheelset

På leverandørlager. Ta kontakt for levering

Ny ramme utviklet over 3 år med input fra produkttestere og lag. 150gram (880gram) lettere enn forrige generasjon! Plass til 34mm dekk.





Introducing the all-new Helios A—the pinnacle of aerodynamic engineering and racing performance. Developed over three years of relentless testing and perfected with the elite UCI Continental Team, TSG, the Helios A is built to dominate any race condition.​

The Helios A is meticulously optimized for speed, agility, and control. Whether battling headwinds or slicing through tight corners, its cutting-edge aerodynamics and balanced stiffness deliver an unmatched ride.​

This isn’t just a bike—it’s your competitive edge.​

  • It’s light​
    Weight is a decisive criteria when it comes to justifying the quality of a top-of-the-range road bike. Saving a few grams on a frame while retaining its stiffness and quality presents a real challenge. Our engineers have taken up this challenge by redesigning the ACX carbon construction of our frame and fork to achieve a fantastic result, saving almost 300 grams on its frame.
  • Superior Power Transfer ​
    We’ve reinforced the bottom bracket for instant power transfer and adopted a T47 threaded system for added stiffness, smooth pedaling, and zero creaks—while up front, a shortened, reinforced head tube sharpens cornering for a decisive edge in every sprint.​
  • From racing admiration to engineering the ultimate aerodynamic machine​
    ​The downtube, as the bike’s aerodynamic core, now features dual bottle cage mounting positions—low for large bottles, high for smaller ones—to reduce drag across setups. Paired with a newly redesigned, sleeker fork, the Helios A now cuts through air more efficiently than ever.​
  • This is performance, perfected.​
    With the new Helios A, Polygon redefines adaptability in road biking. The frame supports both an aero seat post (included) and a 27.2mm round option for added comfort—giving riders full control, whether tackling fast sprints or rough courses. It also fits tires from 28c to 34c, making it ultra-versatile for varying road conditions, and comes equipped with a 45mm carbon rim for balanced performance across the series.​
  • It’s innovative​
    The complete series features a new semi-integrated carbon cockpit—handlebar, stem, and wheels—designed by us and proudly branded under our new component line, LINC. Built to balance performance and comfort, LINC wheels make the bike lighter, faster, and more stable in crosswinds, while maximizing speed on flats. Ideal for modern cyclists who value both performance and elegance.​

Spesifikasjoner

Ramme

ACX PERFORMANCE UCI APPROVED

Gaffel

ACX PERFORMANCE UCI APPROVED

Salpinne

CARBON AERO, DxL: AERO 35 x 351mm

Girhendel

SHIMANO DURA-ACE Di2 ST-R9270, 2×12-SPEED

Kranksett

SHIMANO DURA-ACE FC-R9200 52/36T

Kassett

SHIMANO DURA-ACE CS-R9200-12 11-34T

Bakgir

SHIMANO DURA-ACE Di2 RD-R9250

Framgir

SHIMANO DURA-ACE Di2 FD-R9250

Hjulsett

LINC ALPHA CARBON DISC (45mm) W/ TUBELESS TAPE INSTALLED

Dekk

PIRELLI PZERO ROAD TLR 700x28C

Bremser

SHIMANO DURA-ACE HYDRAULIC DISC

Rotor

SHIMANO DURA-ACE CL900 F:160mm / R:140mm CENTER LOCK

Sal

LINC FLUX2, CR-MO ø 7mm

Styre

LINC CARBON, W: 400mm (XXXS, XXS, XS) / 420mm (S, M) / 440mm (L, XL), BB: 31.8mm, R/D: -134.2 mm (XXXS, XXS, XS) / -138.2mm (S, M, L, XL), B/R: 92.5mm (XXXS, XXS, XS) / 89.7mm (S, M, L, XL)

Stem

CARBON, EXT: 90mm (XXXS) / 100mm (XXS, XS) / 110mm (S, M) / 120mm (L, XL), BB: 31.8mm, R/D: -7.5degree



Geometri

Model

Frame Size

Rider Size Chart

Seat tube length

Seat tube angle

Effective seat tube angle

Head tube length

Head tube angle

Effective top tube

BB Height

BB offset

Chainstay length

Wheelbase

Frame reach

Frame stack

Standover height

Helios A

XXXS

143-153

395

75.0

75.0

90

71.0

502

266.0

78.0

410

969

370

493

662

Helios A

XXS

150-160

420

74.7

74.7

100

71.3

513

266.0

78.0

410

976

375

503

685

Helios A

XS

157-167

457

74.3

74.3

110

71.5

529

268.5

75.5

410

988

385

511

720

Helios A

S

164-174

489

74.0

74.0

120

72.3

540

271.0

73.0

410

985

390

523

752

Helios A

M

171-181

499

73.7

73.7

130

72.5

556

271.0

73.0

410

996

400

533

761

Helios A

L

178-188

518

73.3

73.3

150

72.8

570

272.5

71.5

410

1005

405

551

780

Helios A

XL

185-195

536

73.0

73.0

170

73.0

598

272.5

71.5

410

1024

420

571

799



Størrelse

XXXS, XXS, XS, S, M, L, XL

Farge

Candy, Velvet Ember
