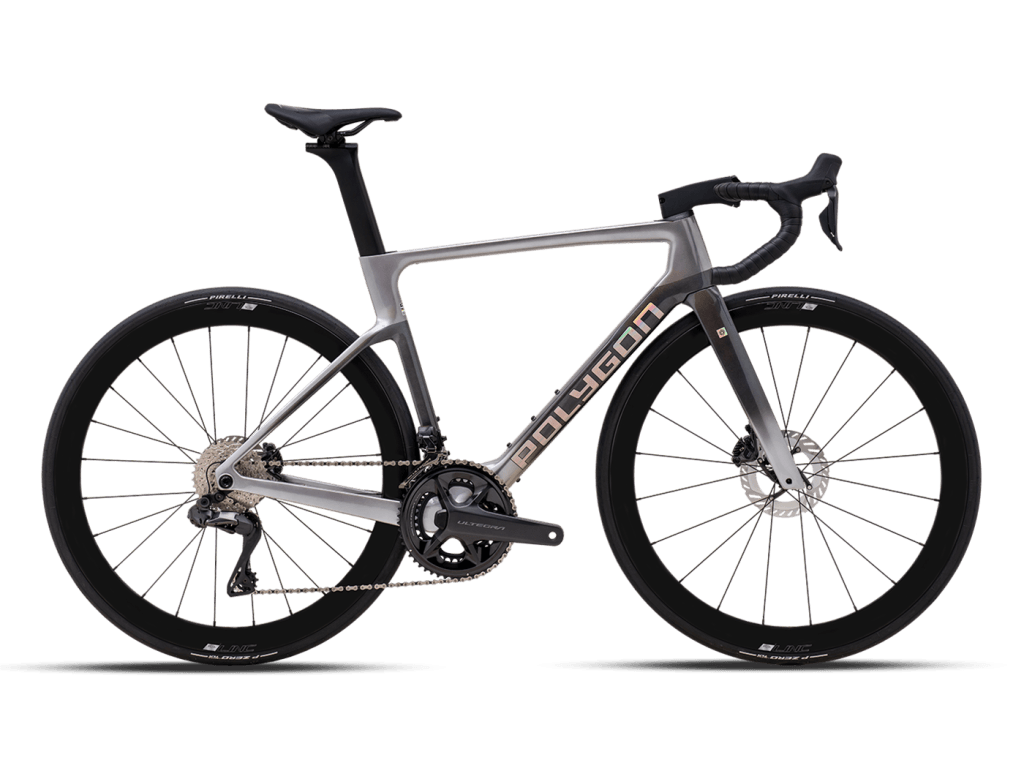

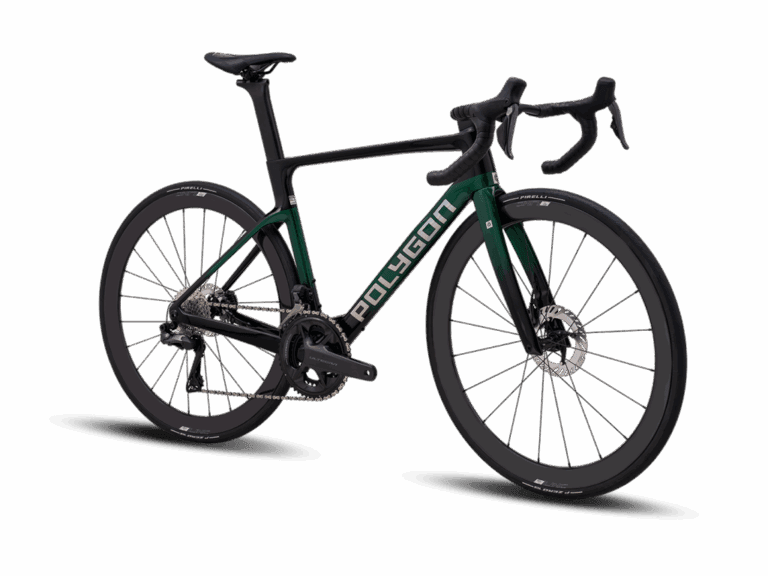

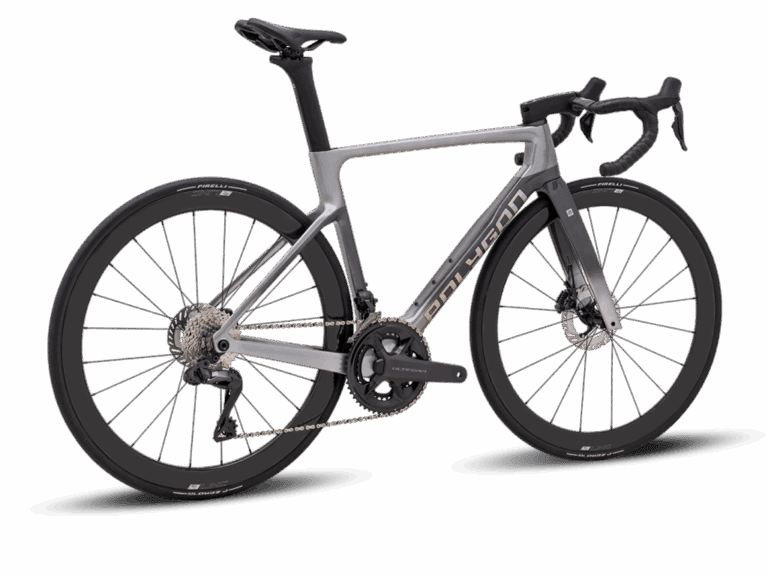

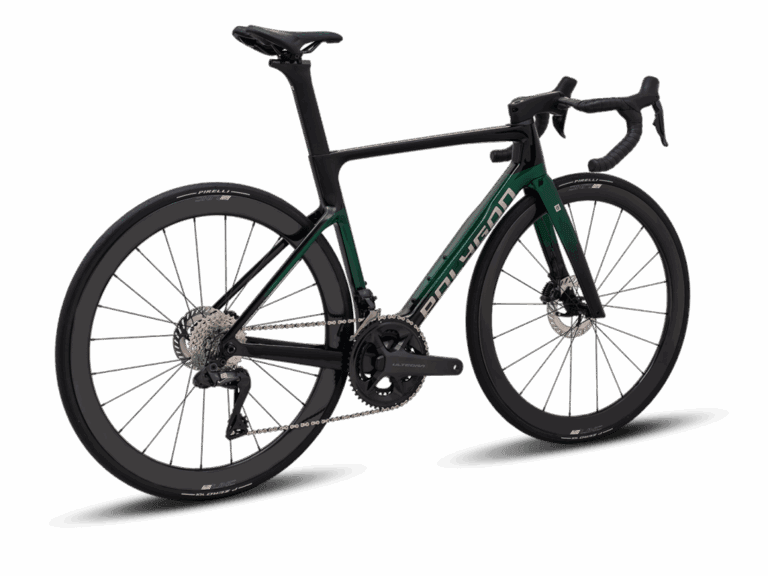

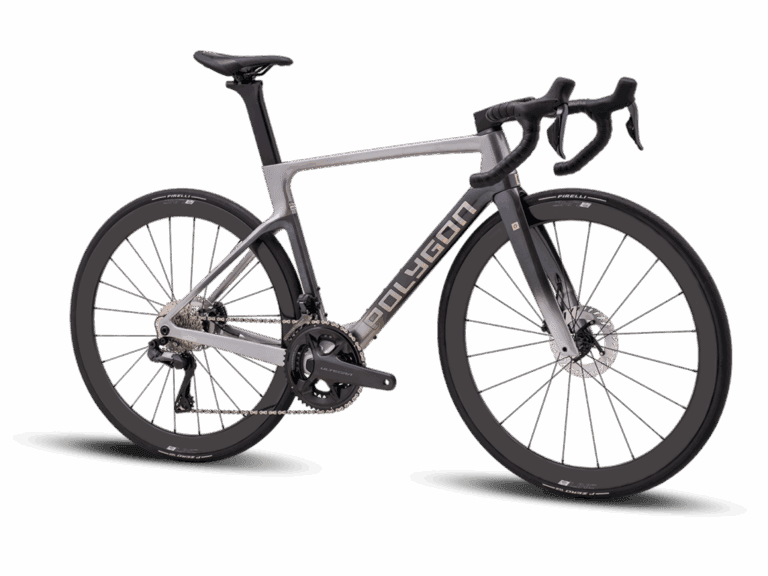

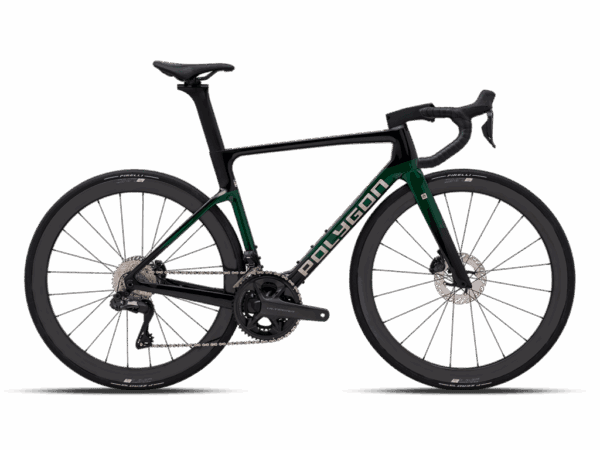

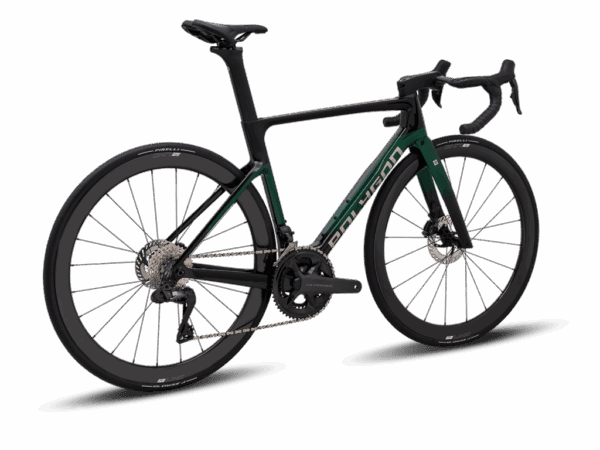

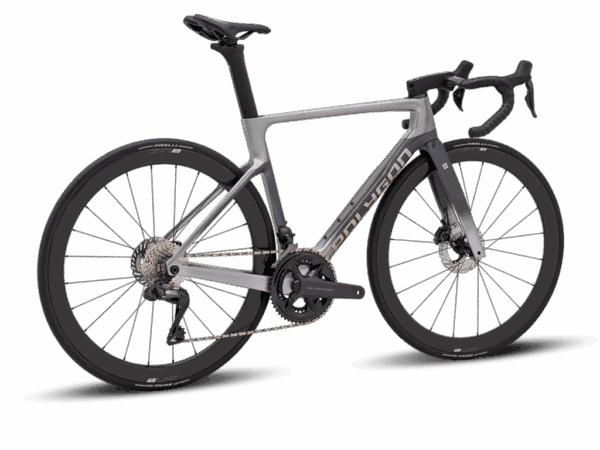

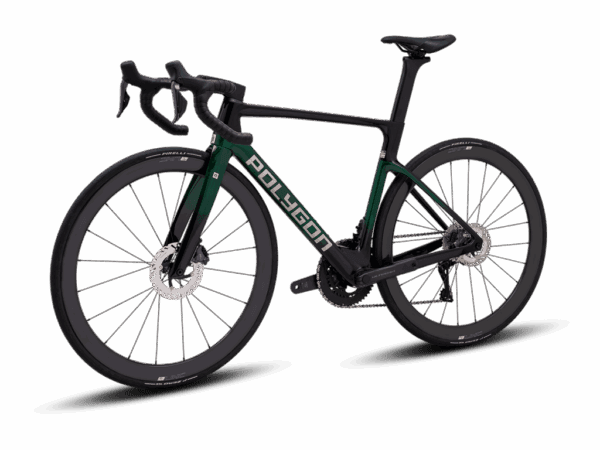

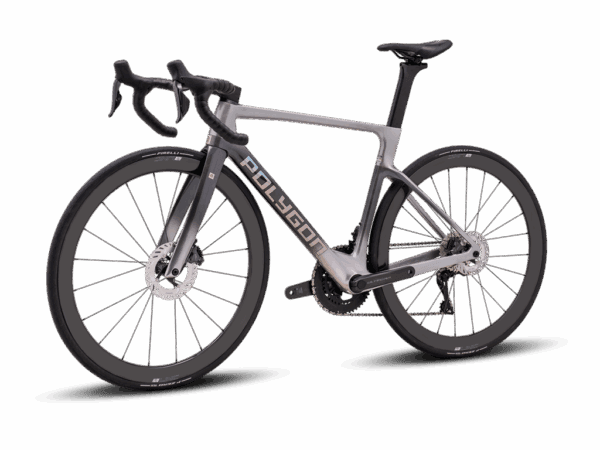

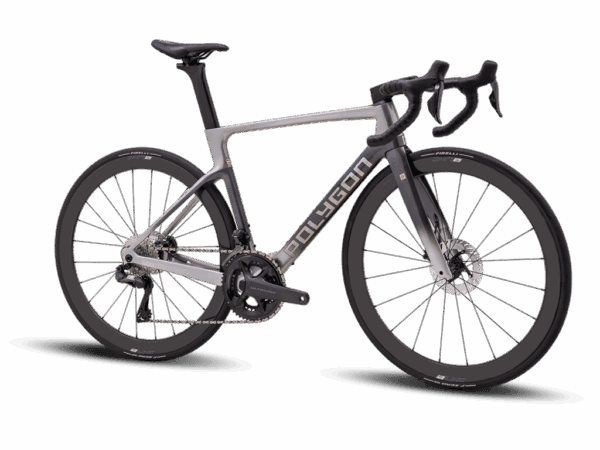

Polygon Helios A8 Di2

kr 55999,00

Ta kontakt for tilgjengelighet og levering
Produktnummer: I/A Kategorier: , , Merke:

Spesifikasjoner

Ramme

ACX PERFORMANCE UCI APPROVED

Gaffel

ACX PERFORMANCE UCI APPROVED

Salpinne

CARBON AERO, DxL: AERO 35 x 351mm

Girhendel

SHIMANO ULTEGRA Di2 ST-R8170, 2x12-SPEED

Kranksett

SHIMANO ULTEGRA FC-R8100 52/36T

Kassett

SHIMANO ULTEGRA CS-R8101-12 11-34T

Bakgir

SHIMANO ULTEGRA Di2 RD-R8150

Framgir

SHIMANO ULTEGRA Di2 FD-R8150

Hjulsett

LINC BETA CARBON DISC (45mm) W/ TUBELESS TAPE INSTALLED

Dekk

PIRELLI PZERO ROAD TLR 700x28C

Bremser

SHIMANO ULTEGRA ST-R8170

Rotor

SHIMANO ULTEGRA CL800 F:160mm / R:140mm CENTER LOCK

Sal

LINC FLUX2, CR-MO ø 7mm

Styre

LINC CARBON, W: 400mm (XXXS, XXS, XS) / 420mm (S, M) / 440mm (L, XL), BB: 31.8mm, R/D: -134.2 mm (XXXS, XXS, XS) / -138.2mm (S, M, L, XL), B/R: 92.5mm (XXXS, XXS, XS) / 89.7mm (S, M, L, XL)

Stem

CARBON, EXT: 90mm (XXXS) / 100mm (XXS, XS) / 110mm (S, M) / 120mm (L, XL), BB: 31.8mm, R/D: -7.5degree



Geometri

  XXXS XXS XS S M L
Height (cm) 144-154 151-161 154-164 162-170 168-176 174-181 180-187
Seat Tube Length (A) 395 420 457 489 499 518 536
Seat Tube Angle (B) 75 74.7 74.3 74 73.7 73.3 73
Effective Seat Tube Angle (C) 75 74.7 74.3 74 73.7 73.3 73
Head Tube Length (D) 90 100 110 120 130 150 170
Head Tube Angle (E) 71 71.3 71.5 72.3 72.5 72.8 73
Effective Top Tube (F) 502 513 529 540 556 570 598
Bb Height (G) 266 266 268.5 271 271 272.5 272.5
Bb Offset (H) 78 78 75.5 73 73 71.5 71.5
Chainstay Length (I) 410 410 410 410 410 410 410
Wheelbase (J) 969 976 988 985 996 1005 1024
Frame Reach (K) 370 375 385 390 400 405 420
Frame Stack (L) 493 503 511 523 533 551 571
Standover Height (M) 662 685 720 752 761 780 799

Tilleggsinformasjon

Størrelse

XXXS, XXS, XS, S, M, L, XL
Farge

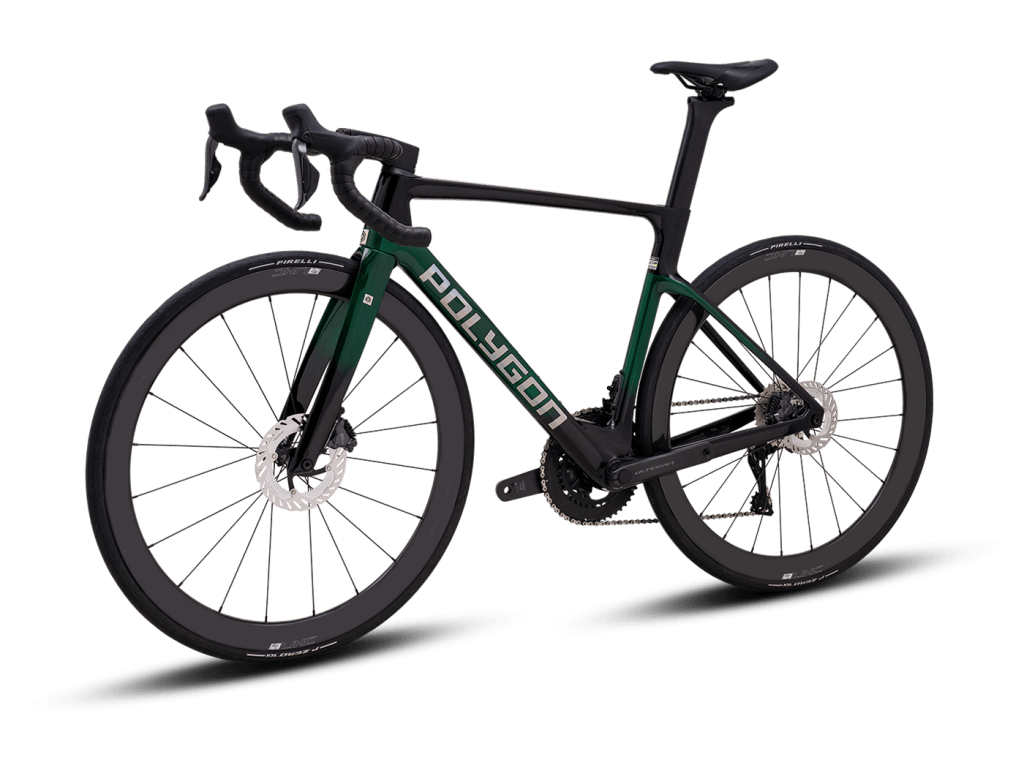

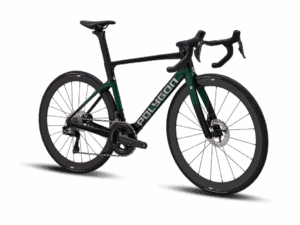

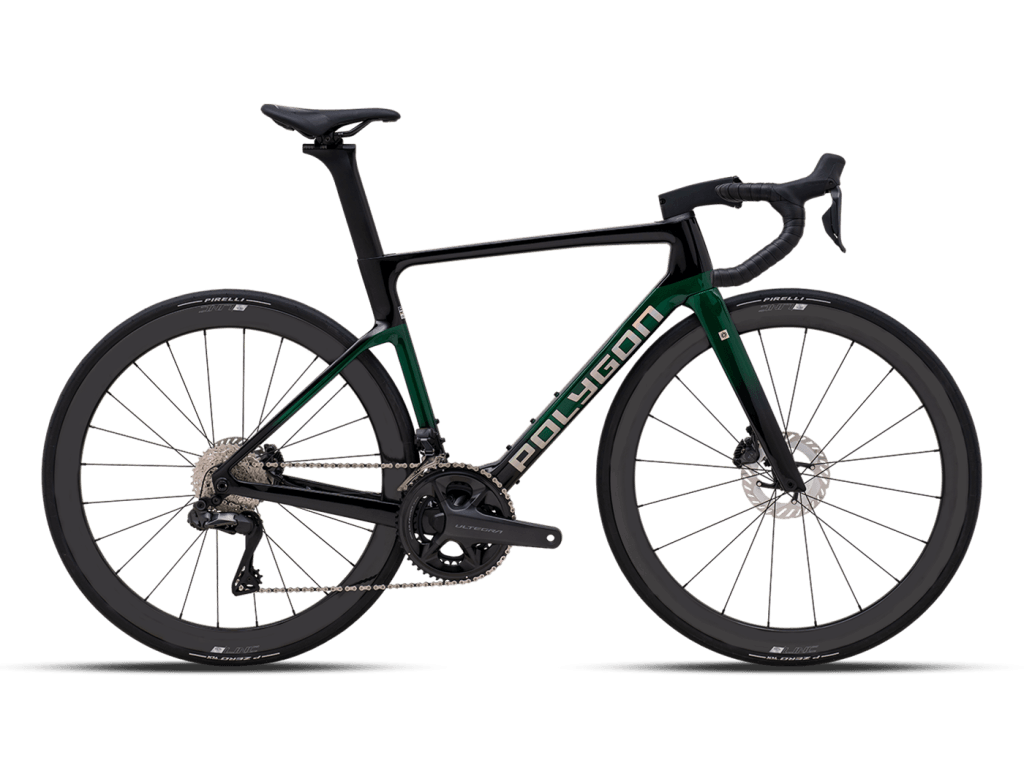

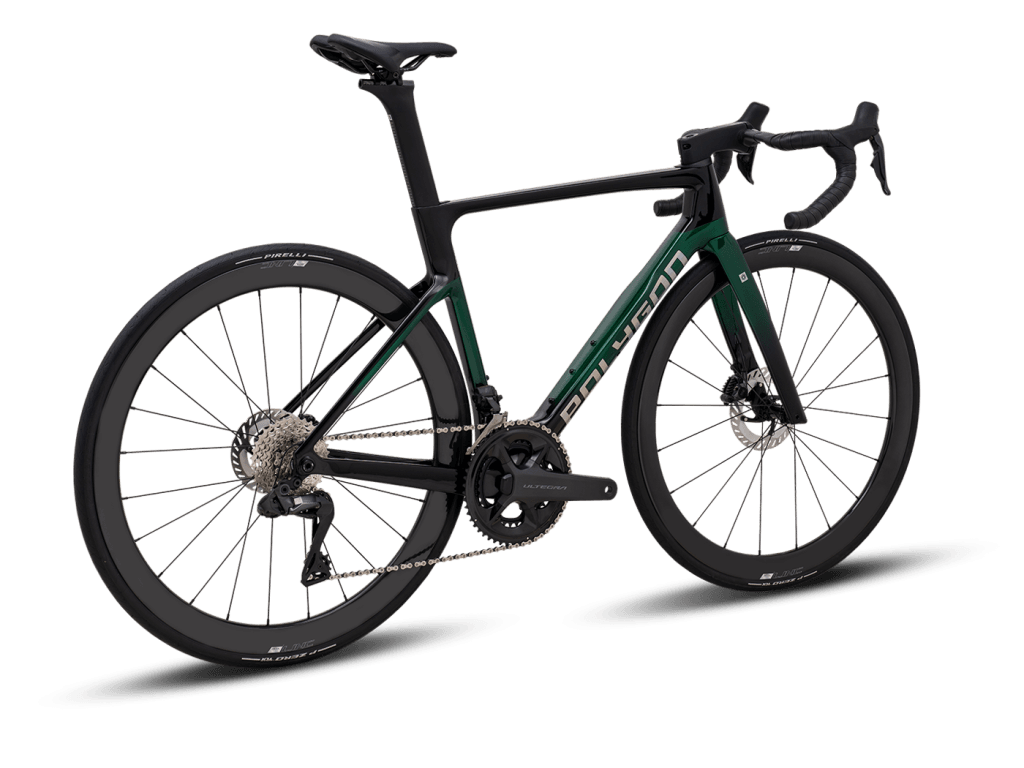

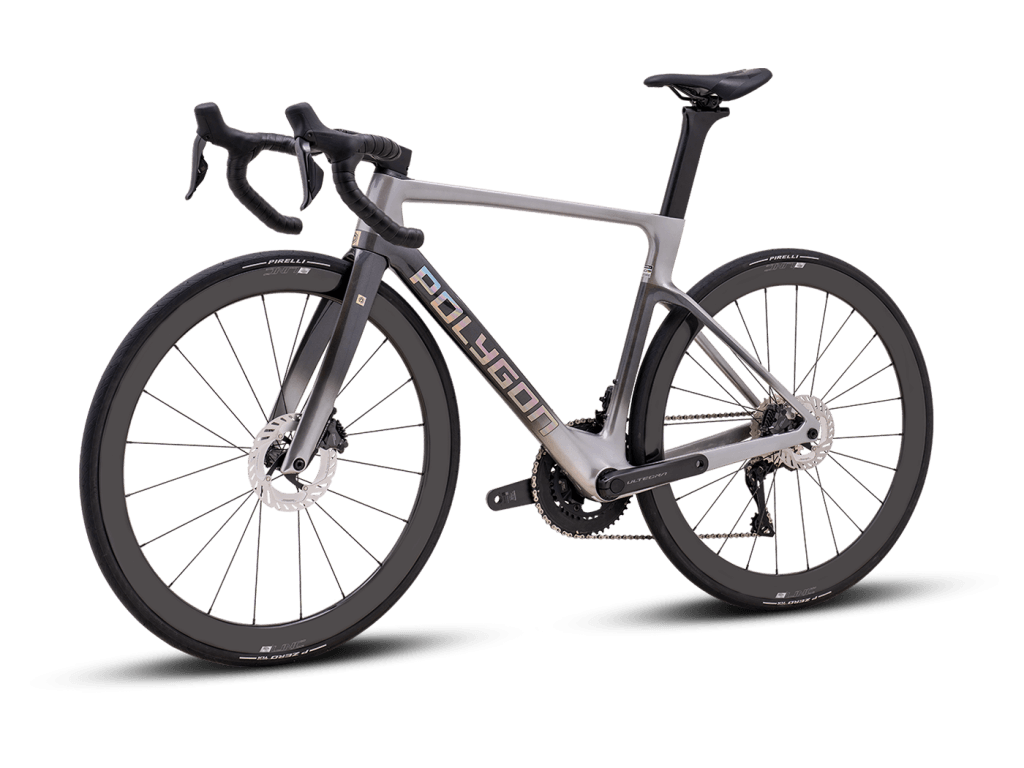

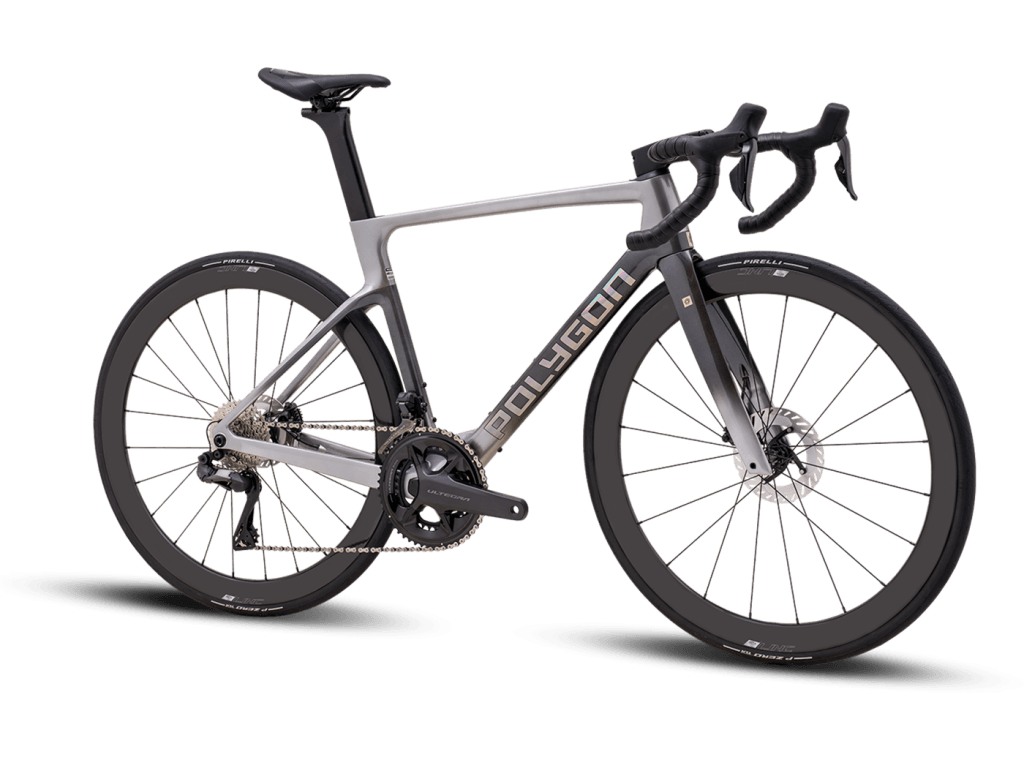

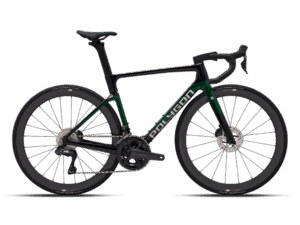

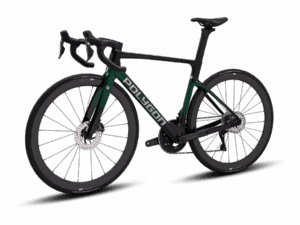

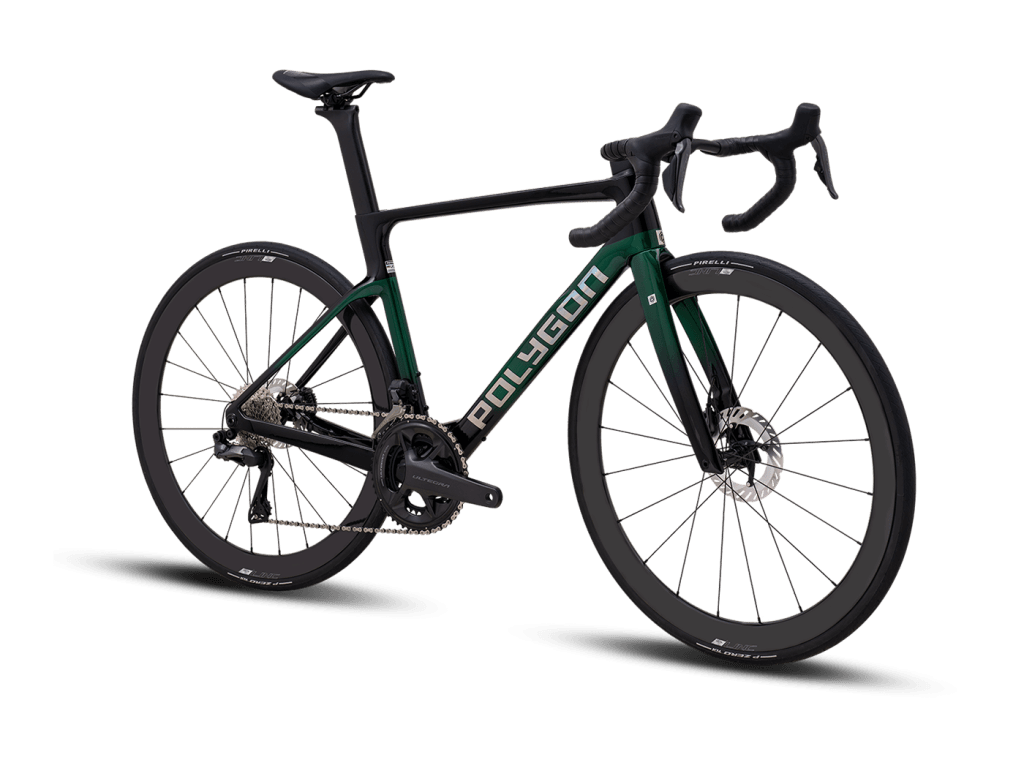

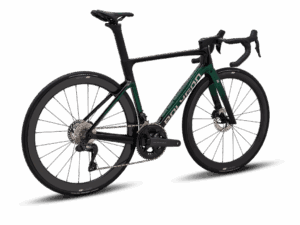

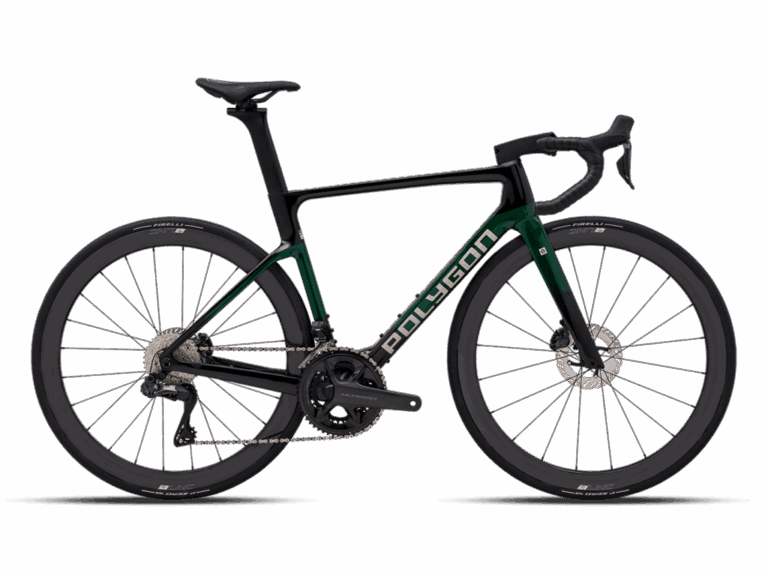

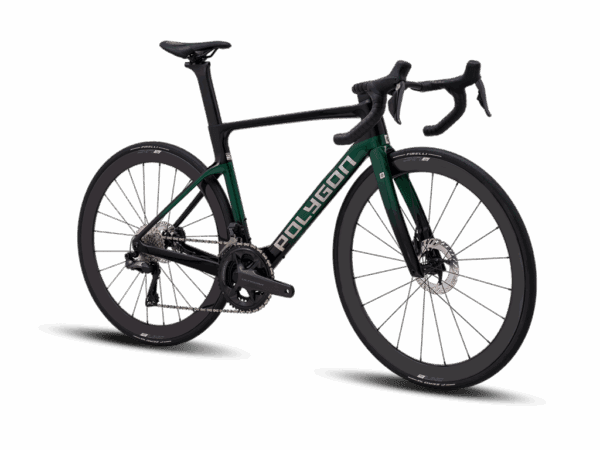

Cosmic Rocket, Midnight Pine
