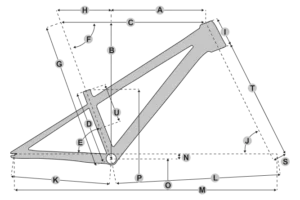

Geometri
|
FRAME SIZE |
REGULAR |
LONG |
|
|
A |
Reach |
400,1 / 412.2 (SAGGED) |
420,1 / 432 (SAGGED) |
|
B |
Stack |
570,8 / 568.3 (SAGGED) |
570,8 / 568.1 (SAGGED) |
|
C |
Effective Top Tube Length |
585,5 / 581.2 (SAGGED) |
605,5 / 601.4 (SAGGED) |
|
D |
Seattube Length |
305 |
305 |
|
E |
Effective Seattube Angle |
71,28 / 72.58° (SAGGED) |
71,28 / 72.54° (SAGGED) |
|
F |
Seattube Angle (Actual) |
72 |
72 |
|
I |
Headtube Length |
120 |
120 |
|
J |
Headtube Angle |
68.5° / 69.78° (SAGGED) |
68.5° / 69.76° (SAGGED) |
|
K |
Chainstay Length |
389-402.5mm* |
389-402.5mm* |
|
L |
Front Centre |
660.4 |
680.4 |
|
M |
Wheelbase |
1049,1 / 1040.2 (SAGGED) |
1069,1 / 1060.2 (SAGGED) |
|
N |
Bottom Bracket Drop |
-25 / -33.6 (SAGGED) |
-25 / -33.6 (SAGGED) |
|
O |
Bottom Bracket Height |
315.5 |
315.5 |
|
P |
Stand Over Height |
637.99mm |
634.92mm |
|
Q |
Fork Travel |
100 |
100 |
|
R |
Trail |
88.5 |
88.5 |
|
S |
Fork Offset |
42 |
42 |
|
T |
Axle to Crown |
482 / 457 (SAGGED) |
482 / 457 (SAGGED) |
