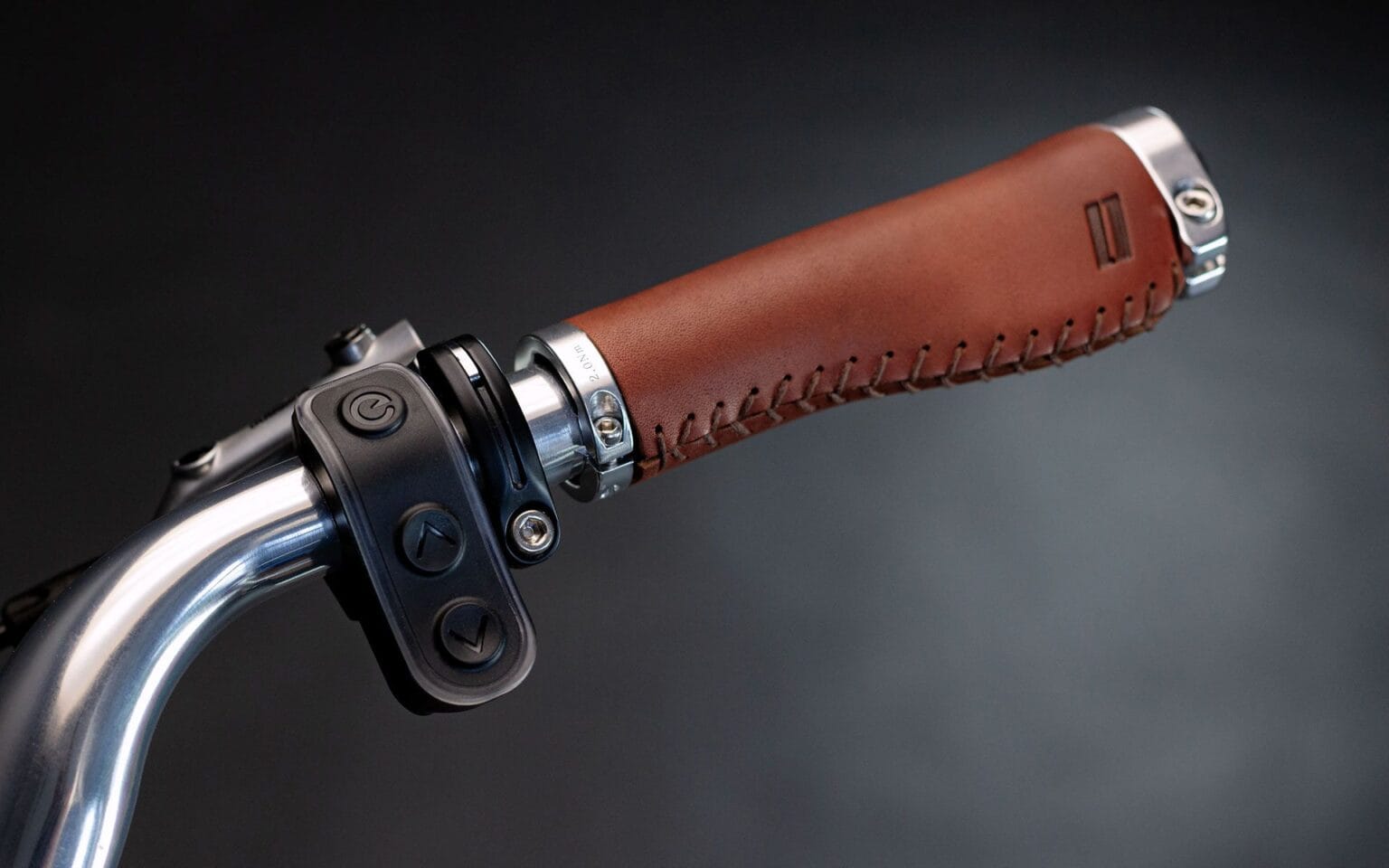

Grips
Schindelhauer – ergo leather grips
Fork
Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes

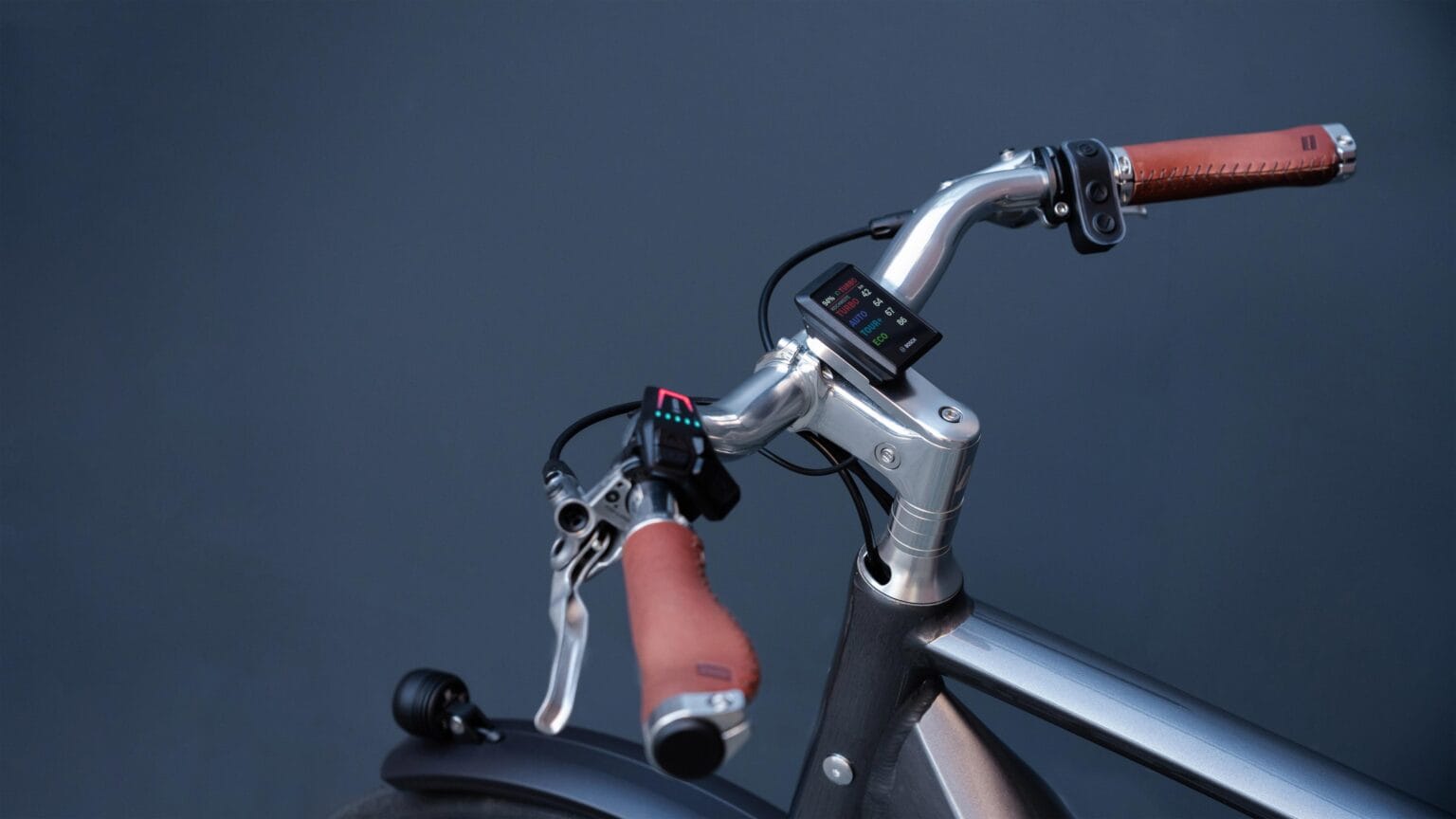

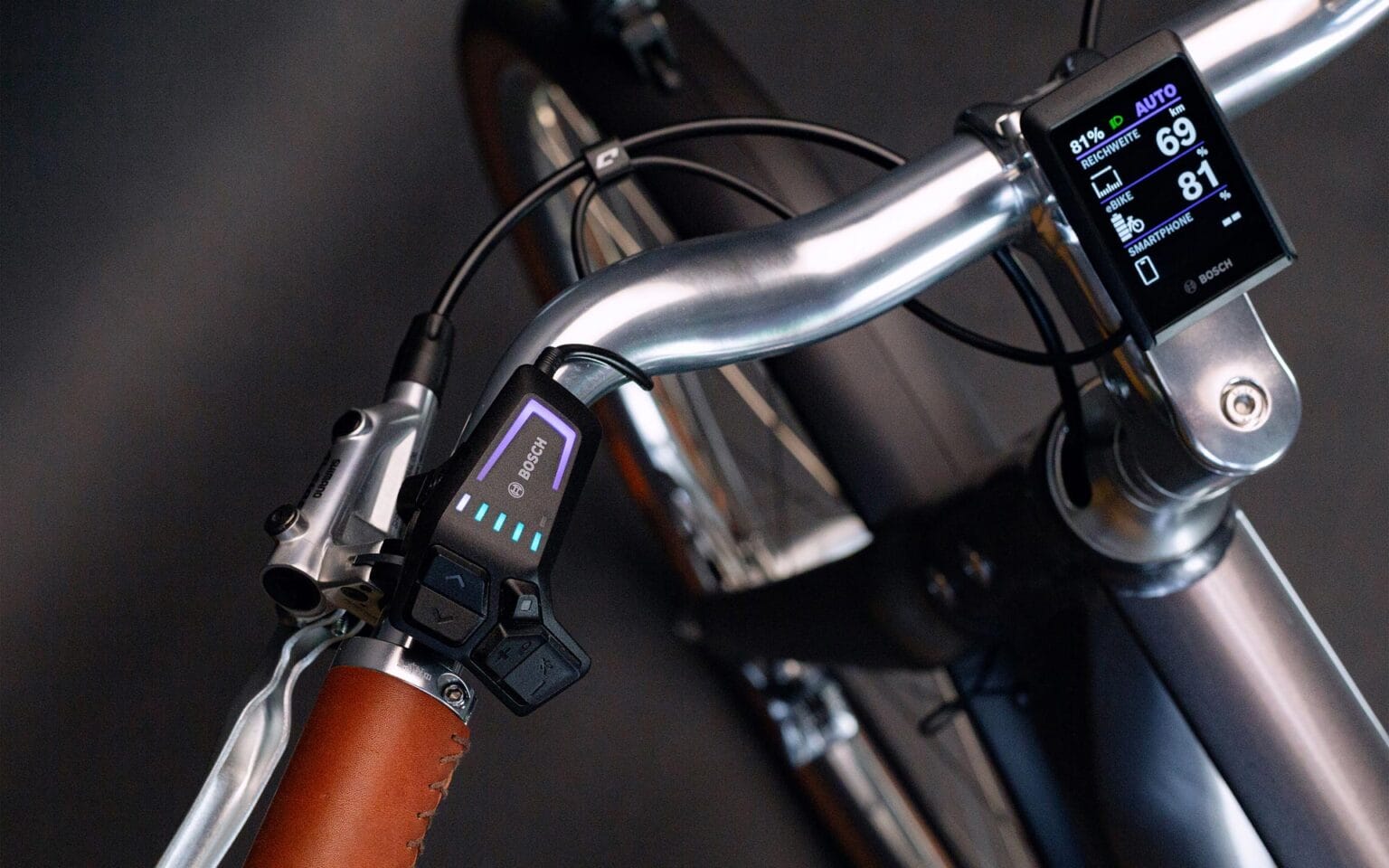

Display
BOSCH – KIOX, LED-Remote
Headset
Acros – ICR 1,5”
Seatpost
Schindelhauer

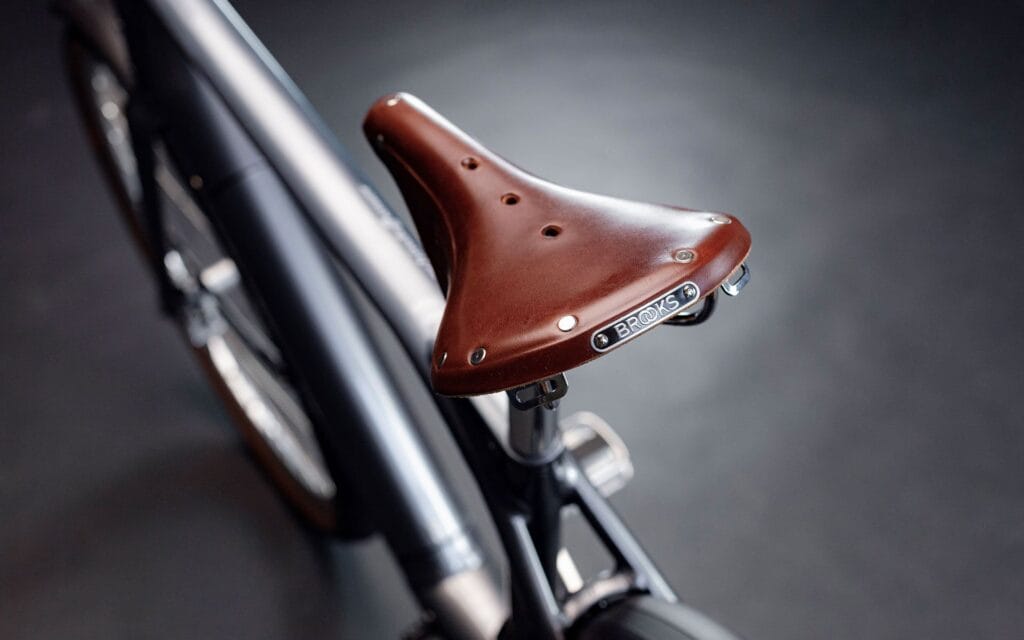

Saddle
Brooks – B17

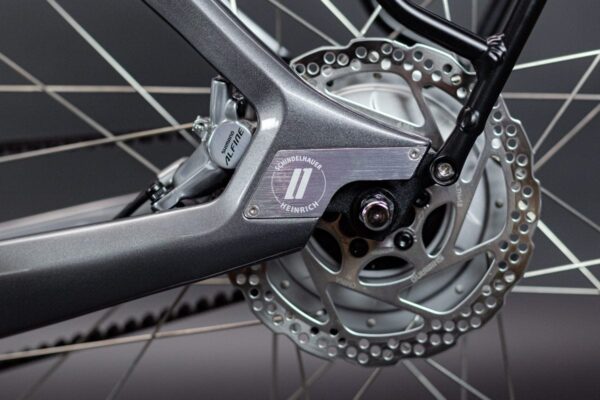

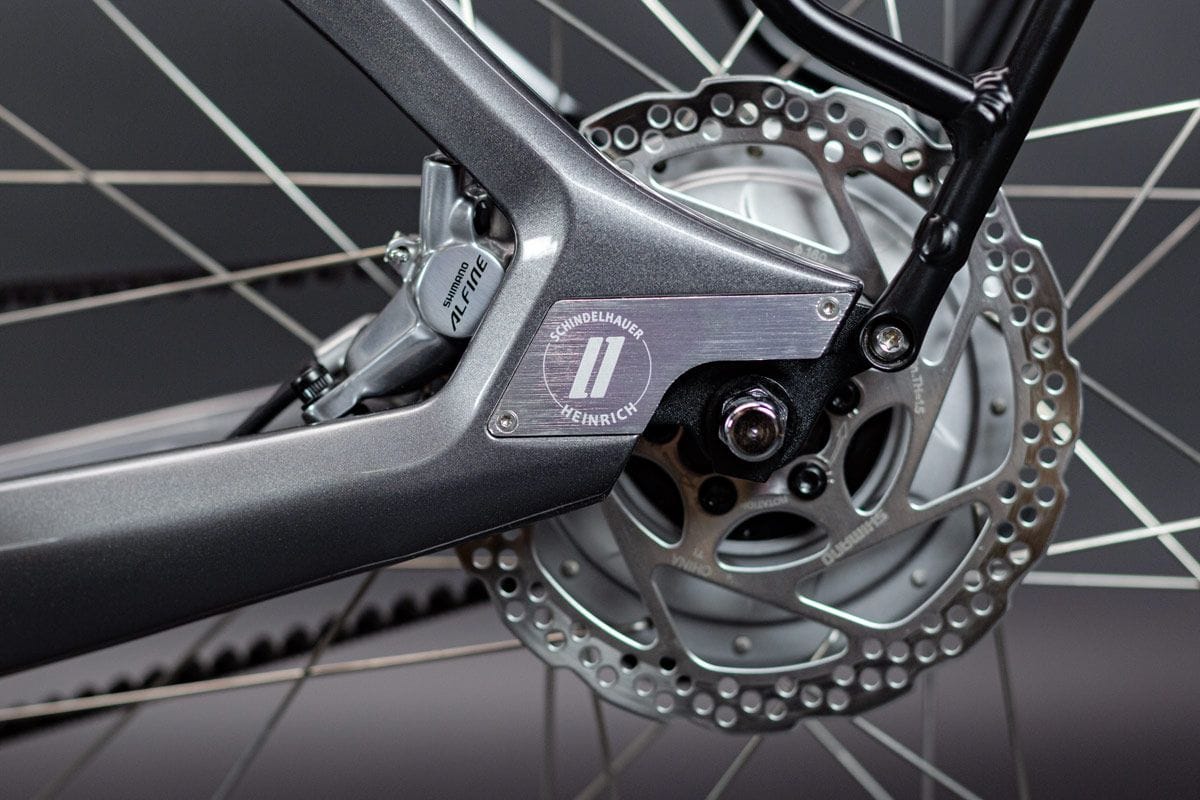

Brakes
Shimano – Alfine S7000 disc brake (hydraulic), 160mm
Stem
Satori – Stealth, aluminium
Mudguards
Alumee 60mm Schindelhauer custom

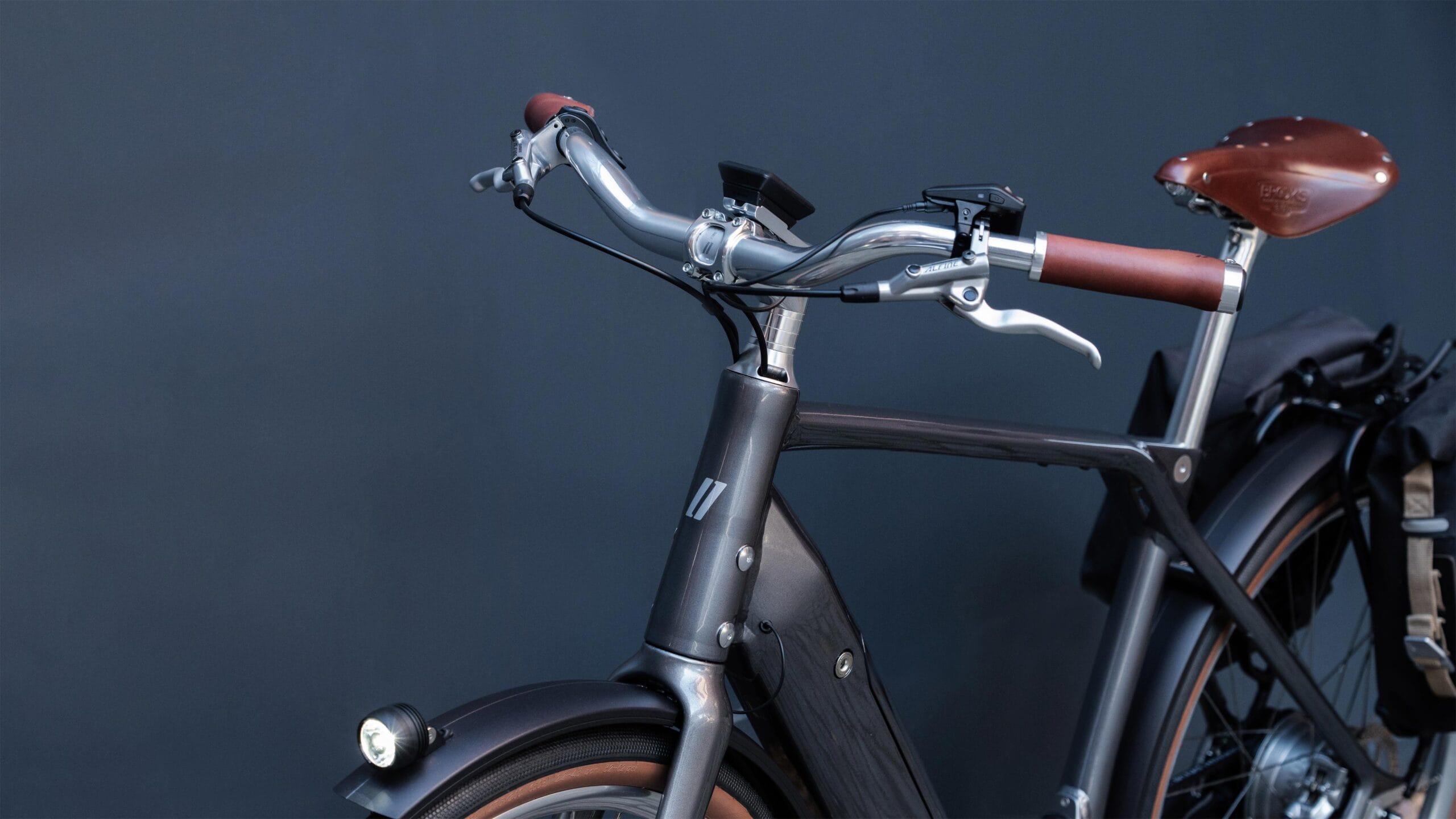

Handlebar
Satori – Seagull, aluminium

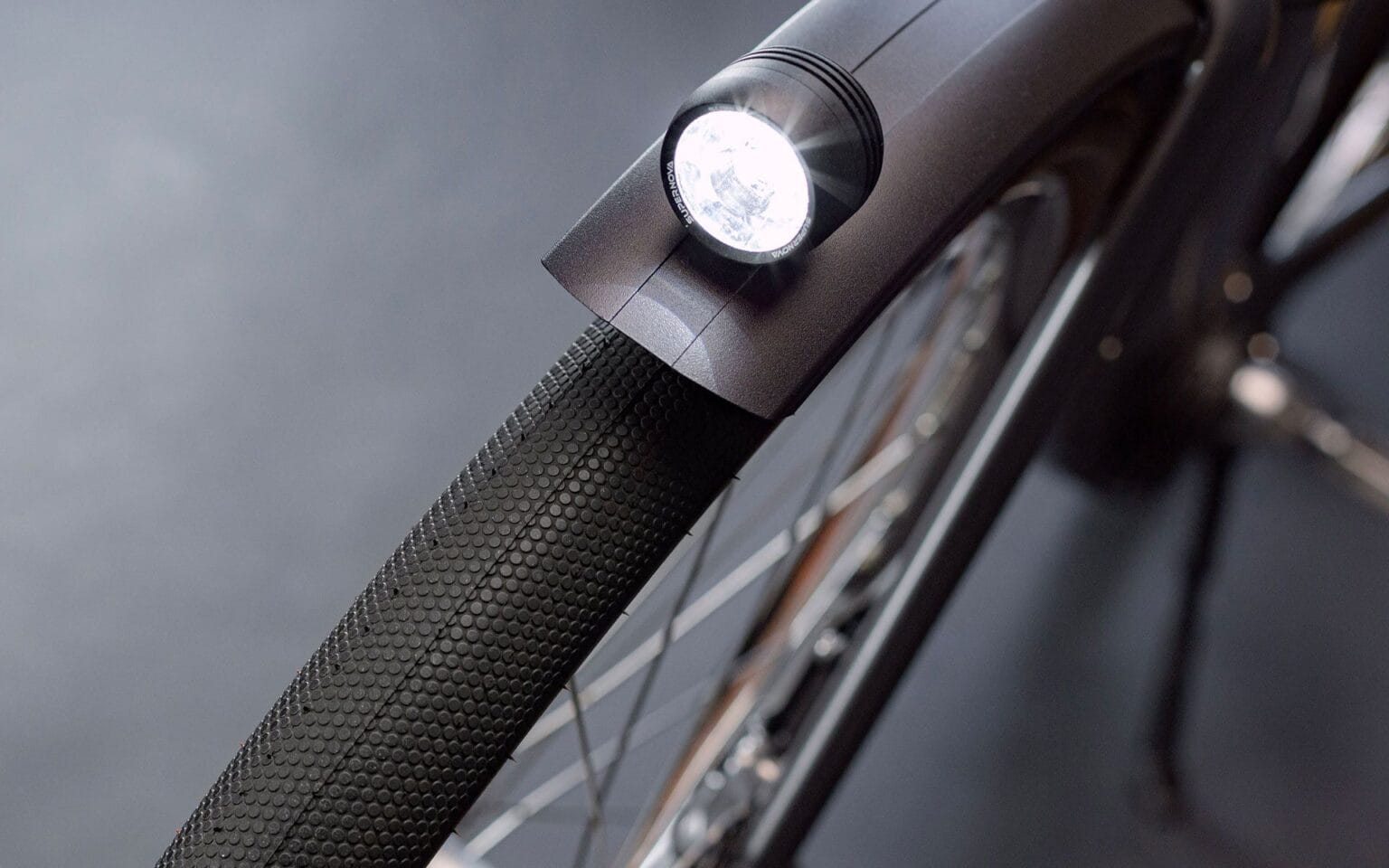

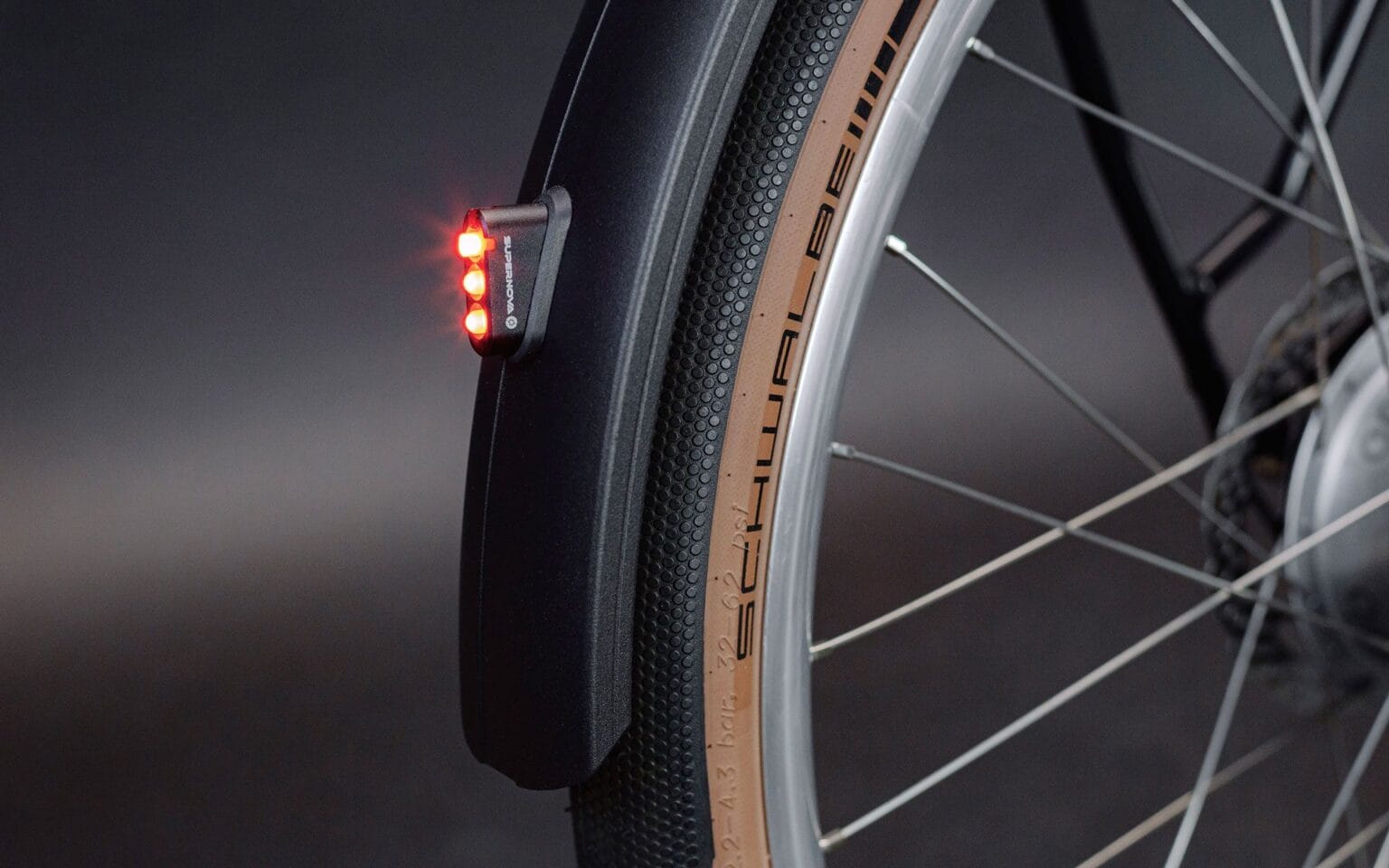

Lighting
Supernova – Mini 2 front light, E3 tail light
Frame

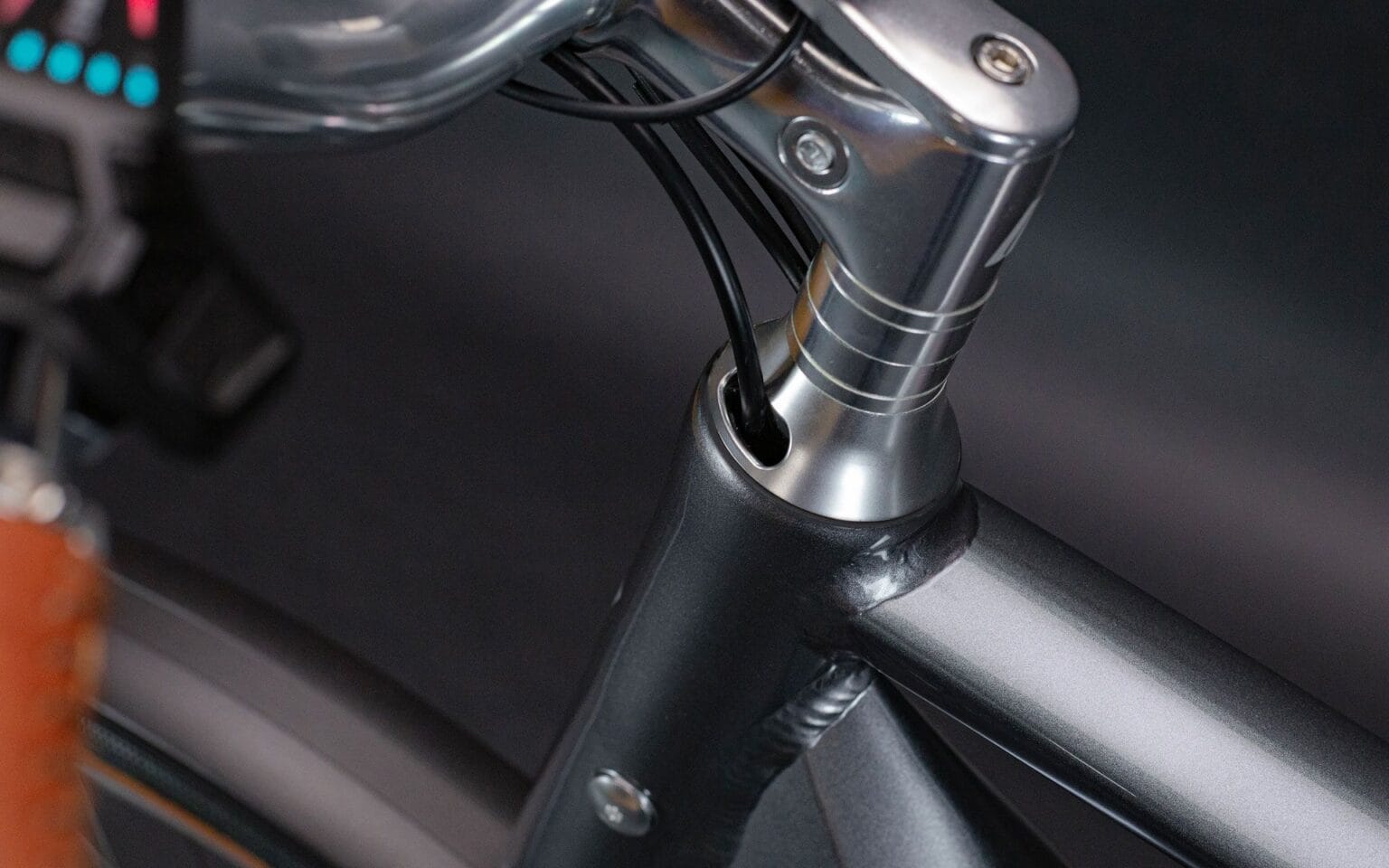

Aluminium (AL6061-T6), triple butted tubing , forged motor bracket, multi-cell down tube, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, integrated seat post clamp, internal cable routing, smooth welded

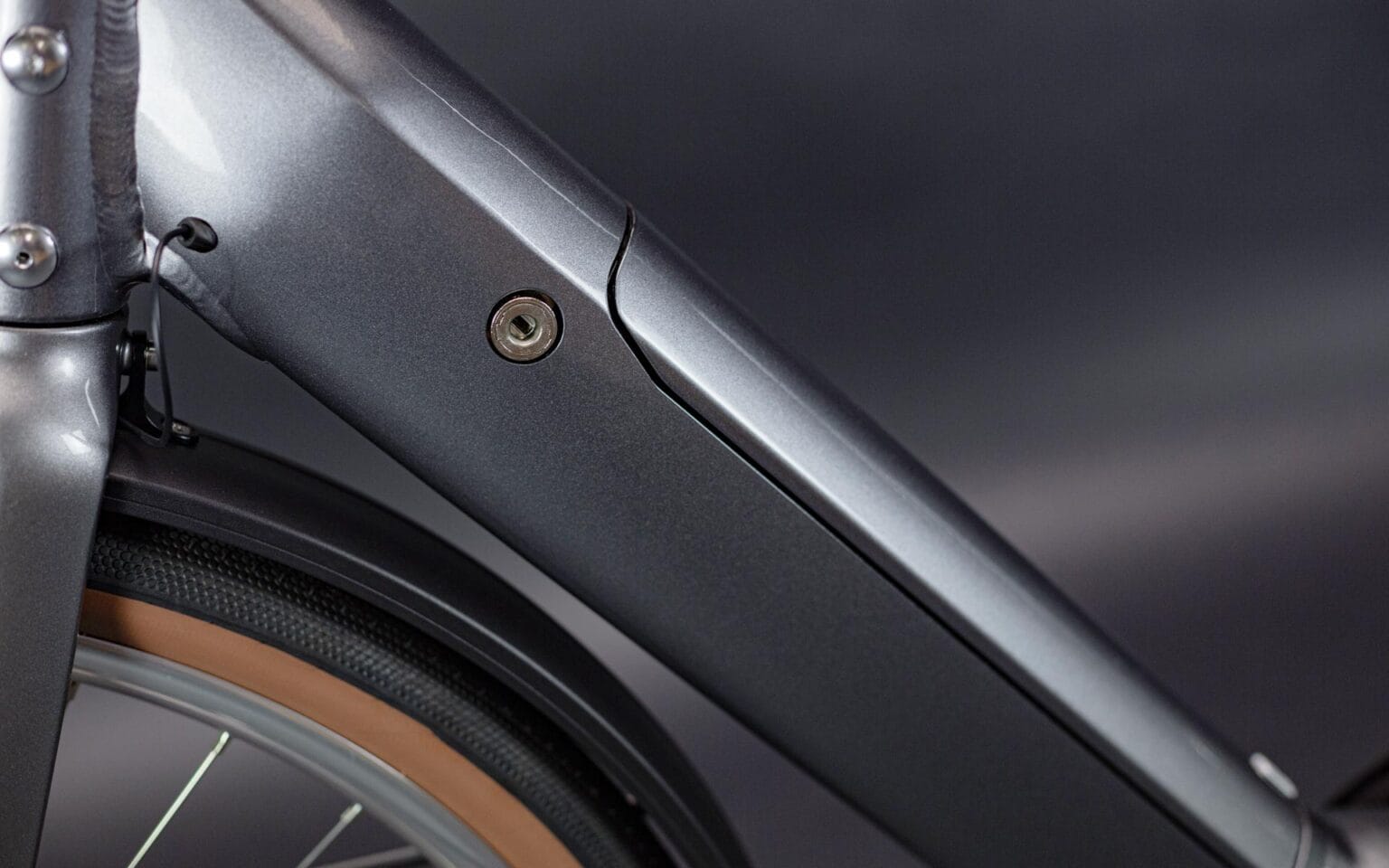

Battery
Bosch – Powertube 500, intube battery, energy: 500 Wh

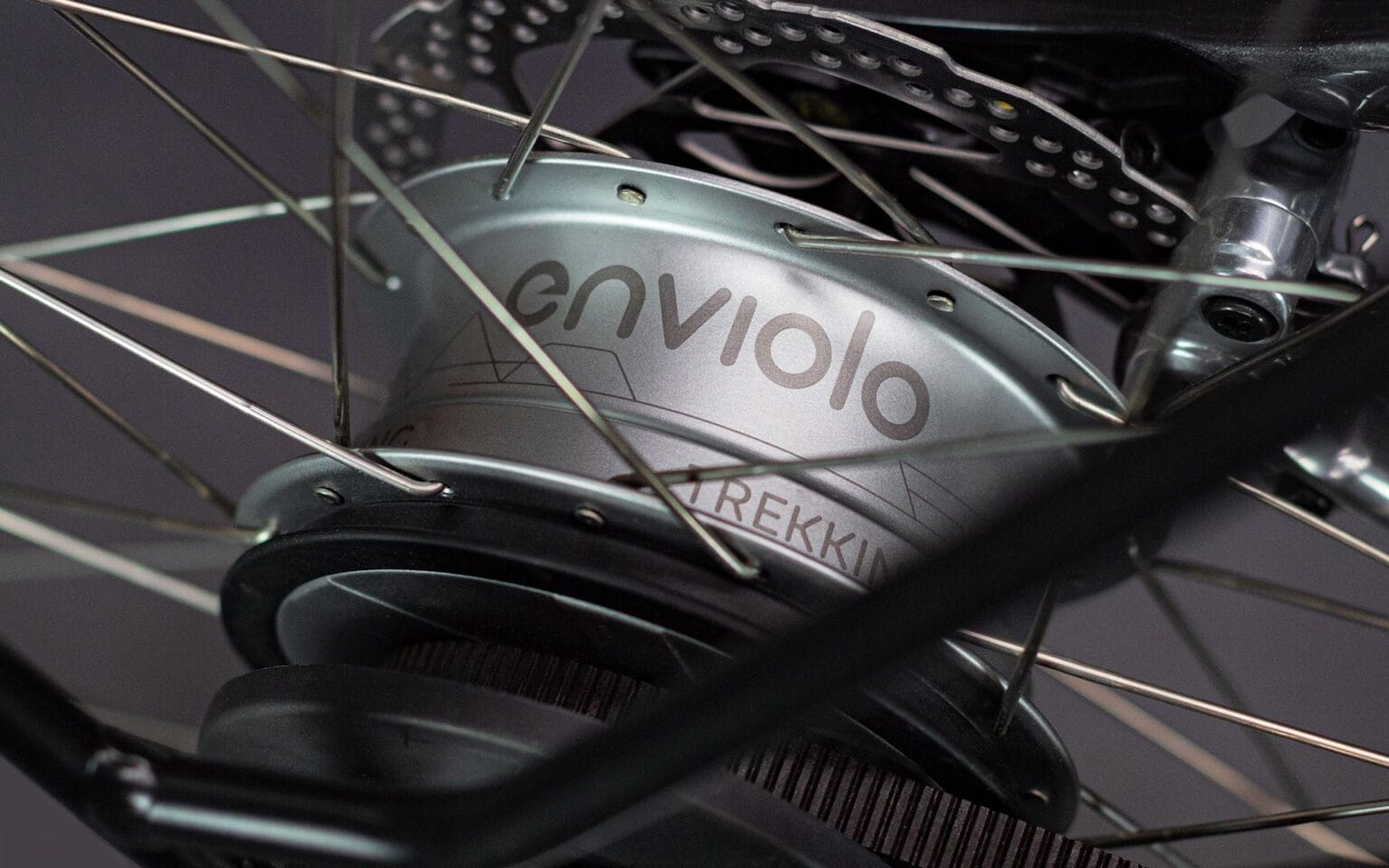

Gear shift
ENVIOLO TR (steples shifting) – AUTOMATiQ (eShift)
Crank set
Miranda – Delta

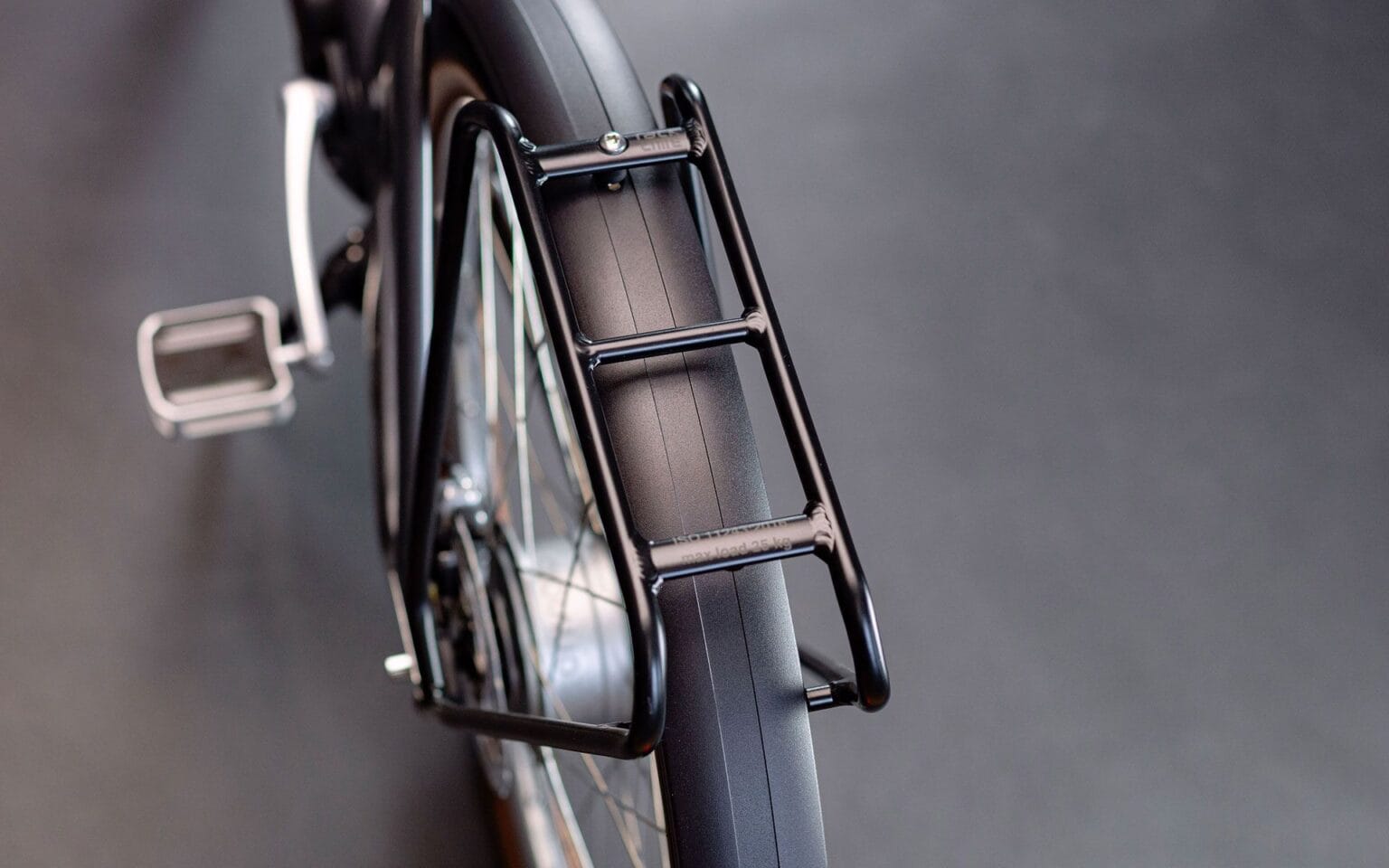

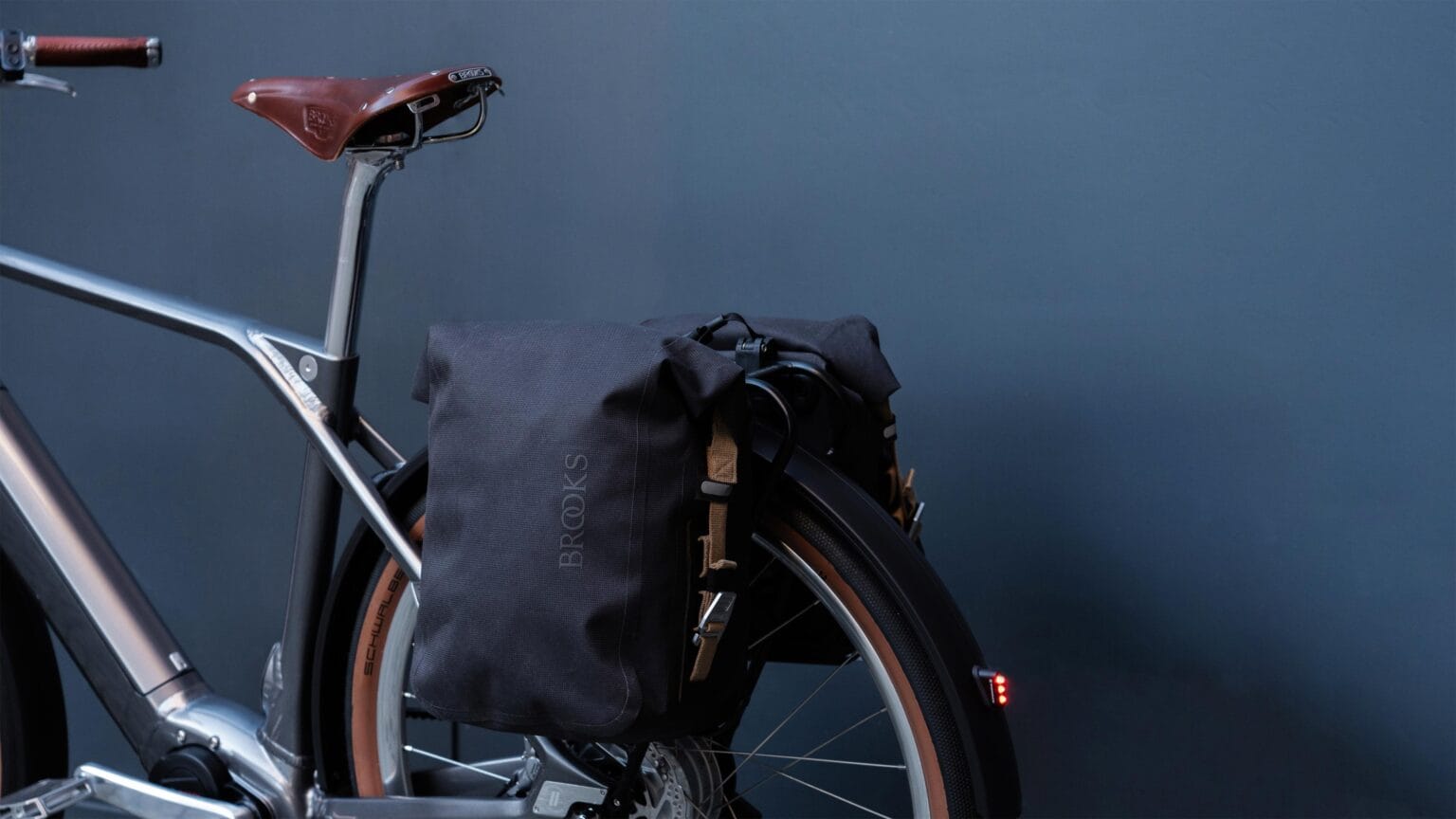

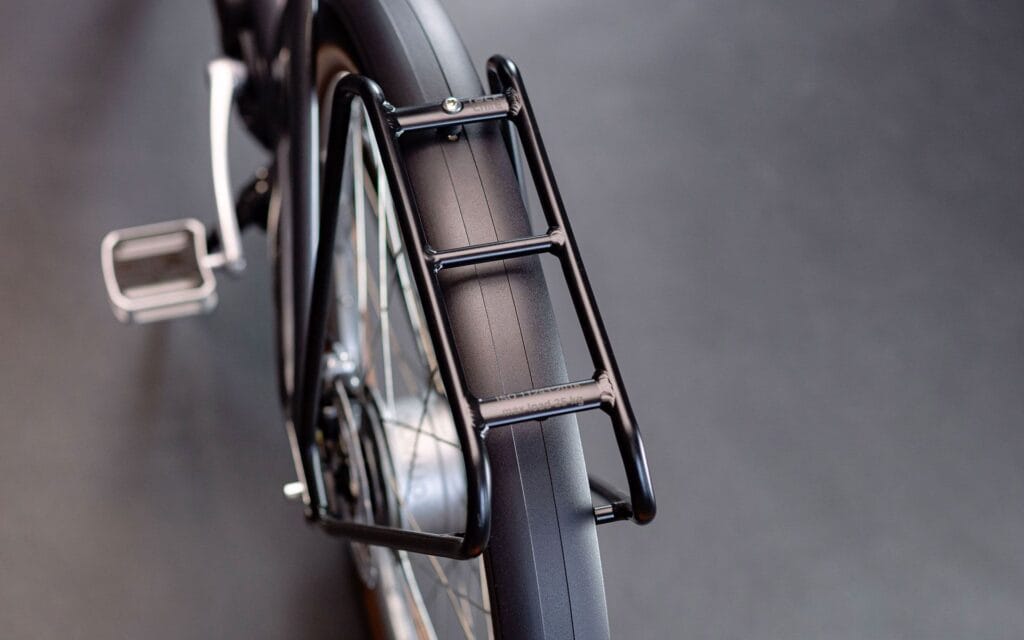

Pannier rack
Rear mudguard RackTime SnapIt, front rack mount possible

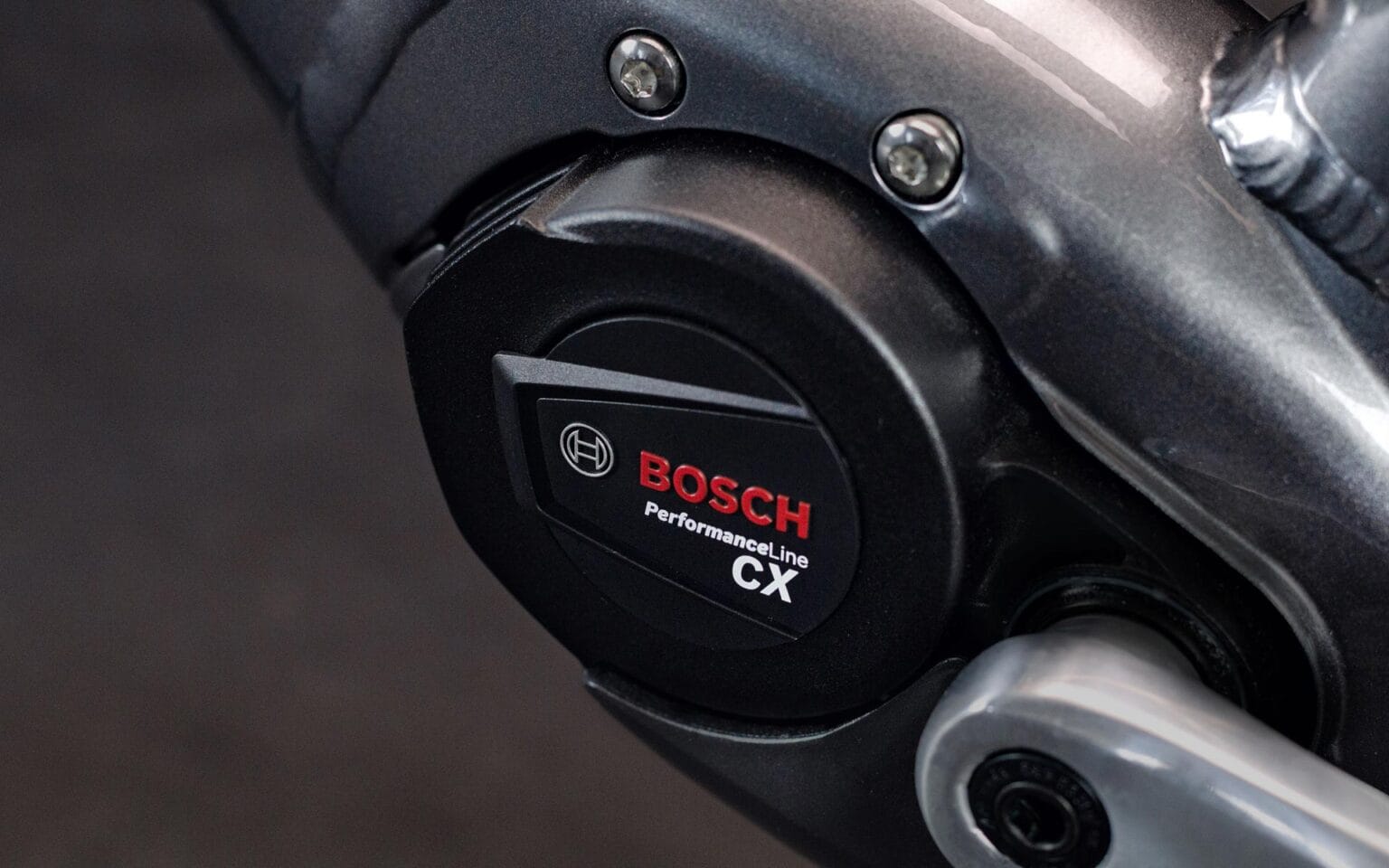

Motor*
*Bosch Smart System – Performance CX, power: 250 W, torque: 85 Nm, max. support up to 25 km/h
Additional features
BOSCH Connect Module ready, Hebie – side stand 663 FIX18 lock holster mounting possible frame lock mounting possible attaching a child seat onto the seat tube is possible installing a bicycle trailer onto the rear axle is possible but will require a hub hitch adapter. Please consult the trailer manufacturer or dealer for further information
Wheels
Schindelhauer – high flange front hub disc, ENVIOLO TR, Alexrims – EXR25 rims with eyelets, Sapim – Race spokes, 3-cross and 2-cross laced
Weight
24.9 kg (size M)
Pedals
Schindelhauer – Urban Pedal, aluminium, CNC machined
Tyres
Schwalbe G-One Speed, 50-584, with reflex stripes
Power transmission
Gates Carbon Drive – CDX, front 50T, rear 22T, belt 118T
