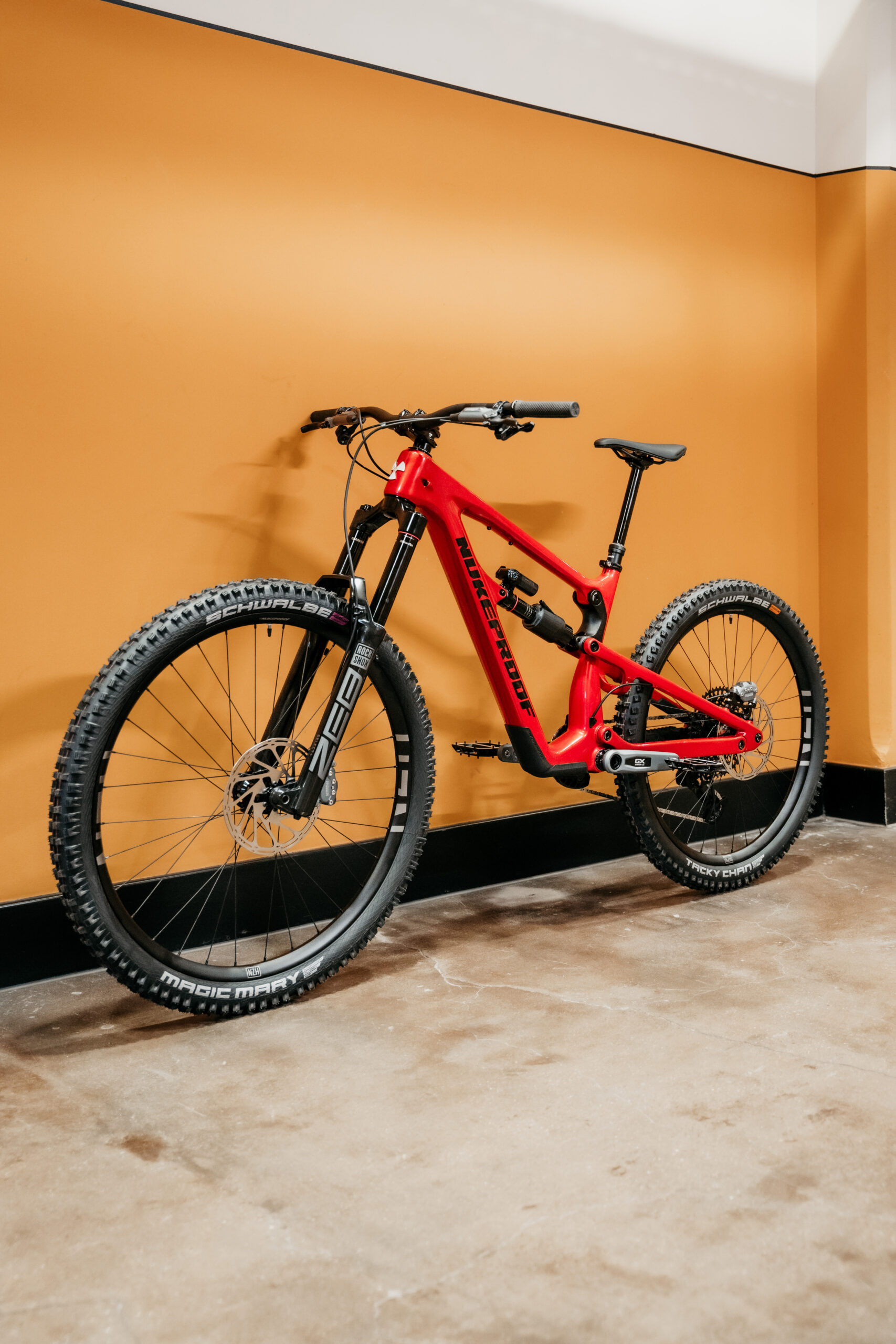

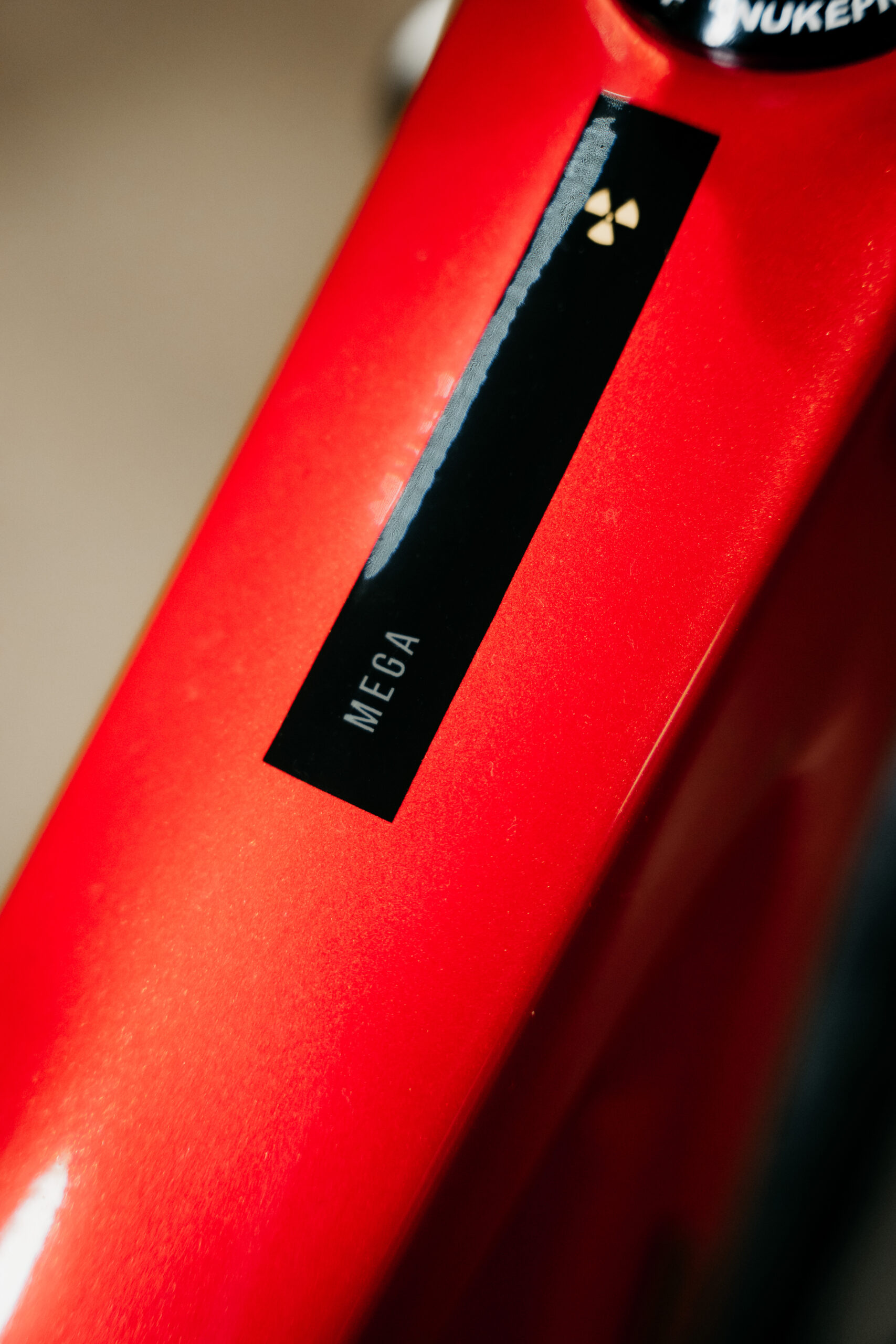

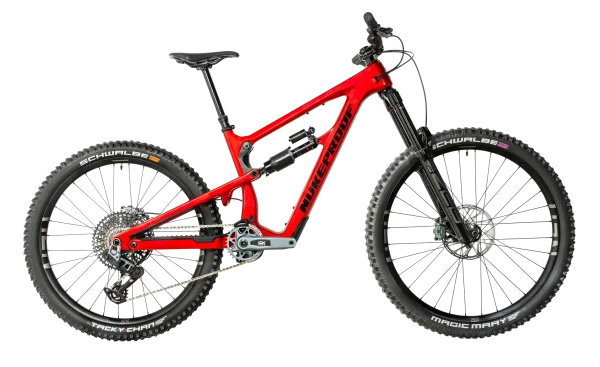

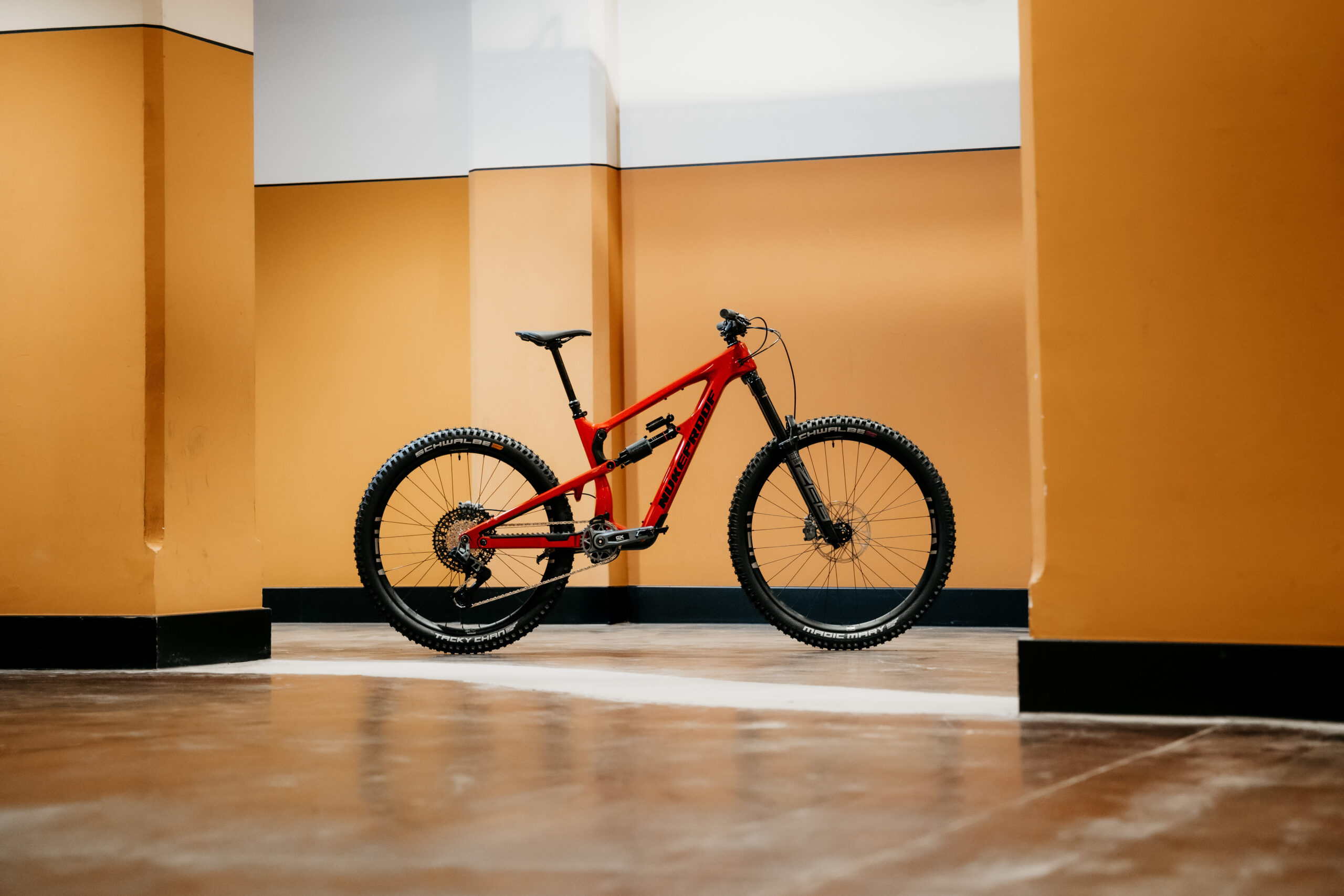

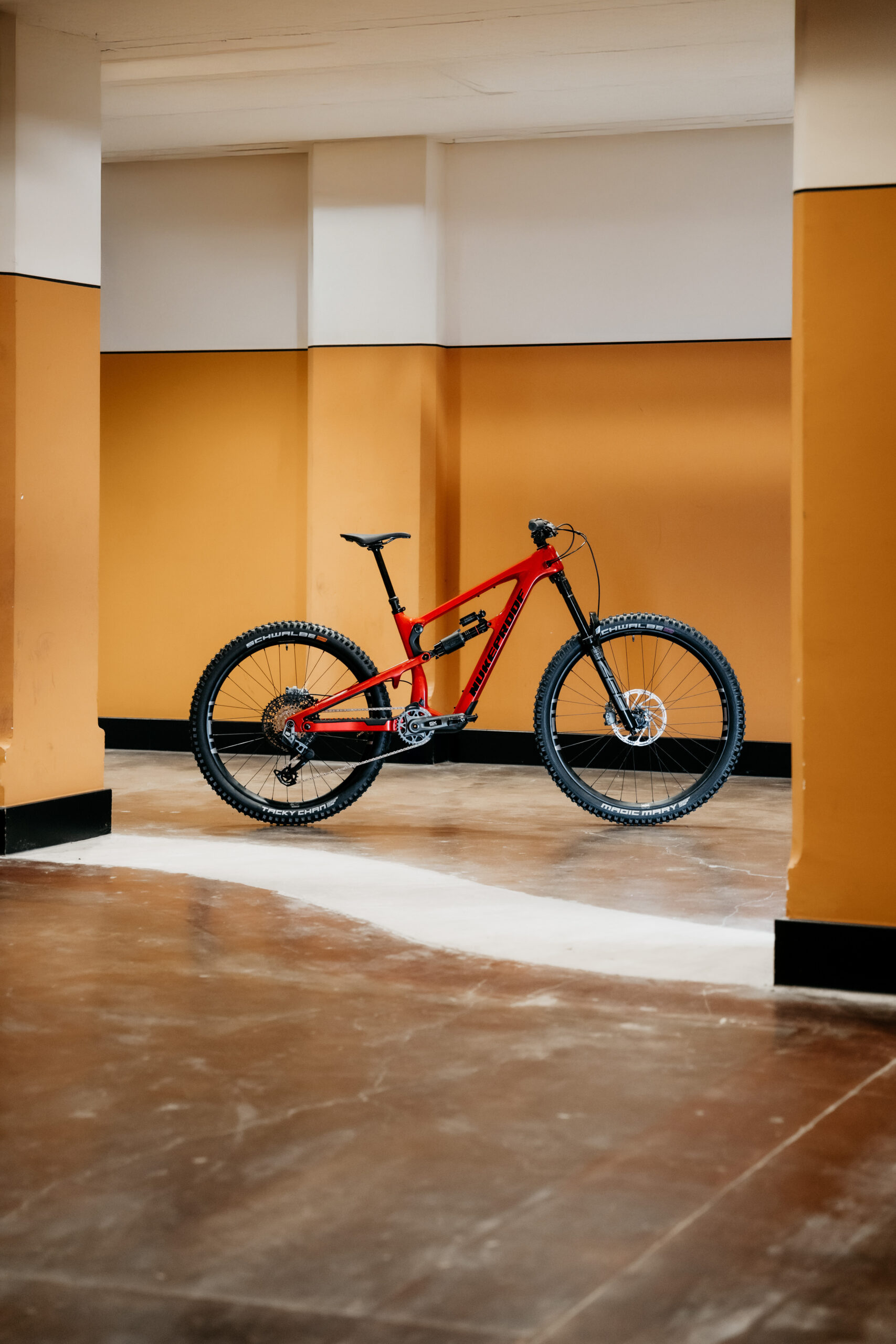

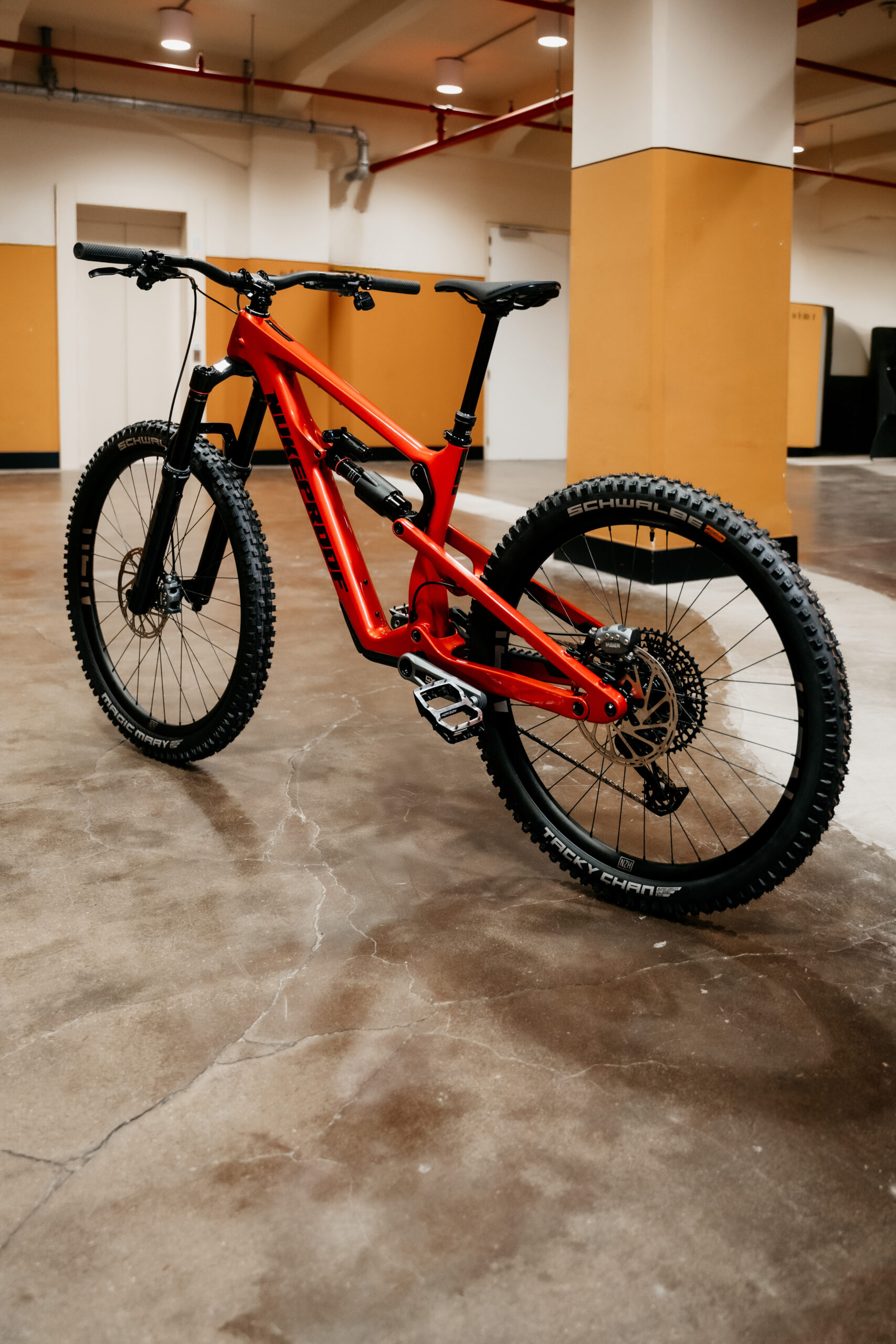

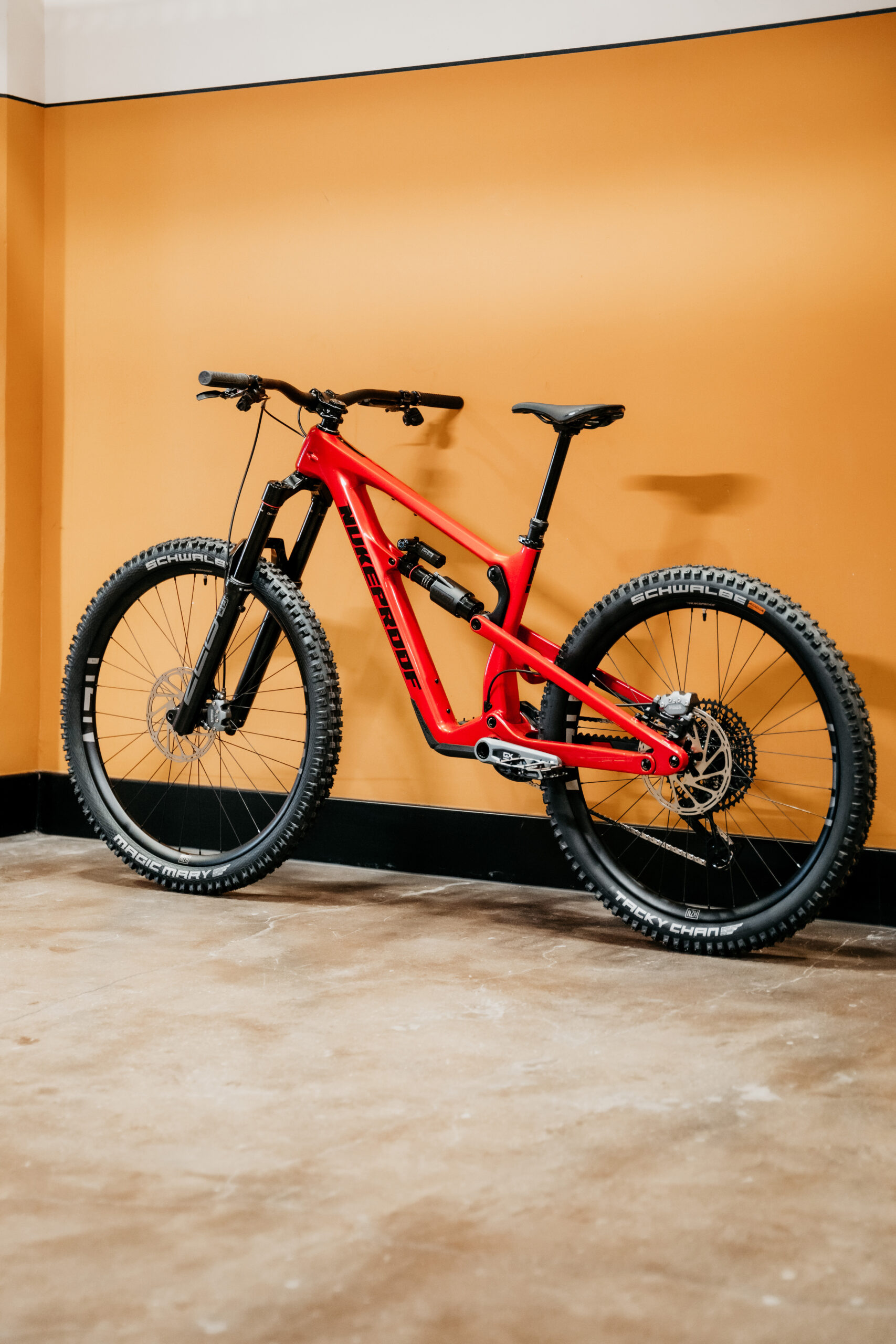

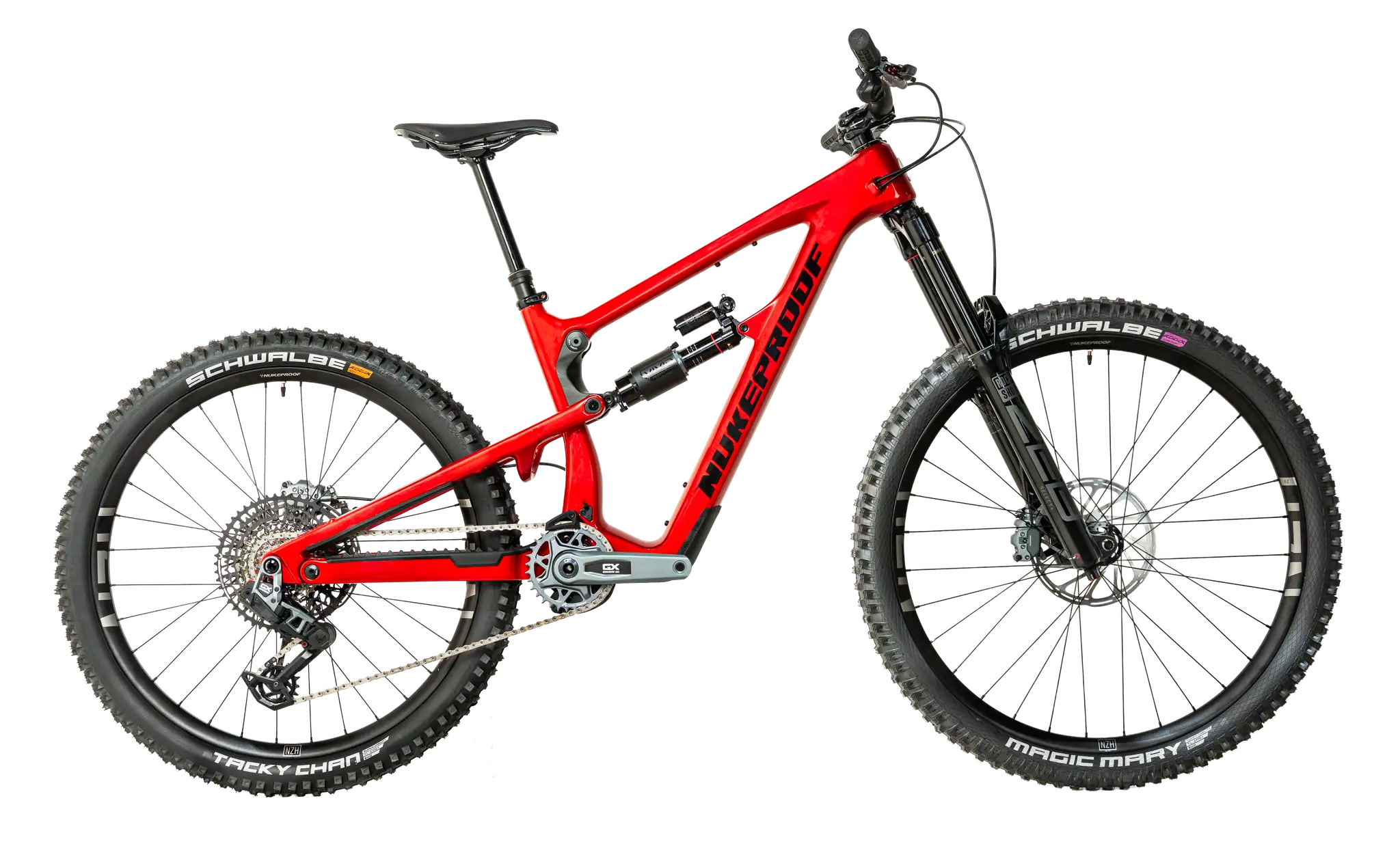

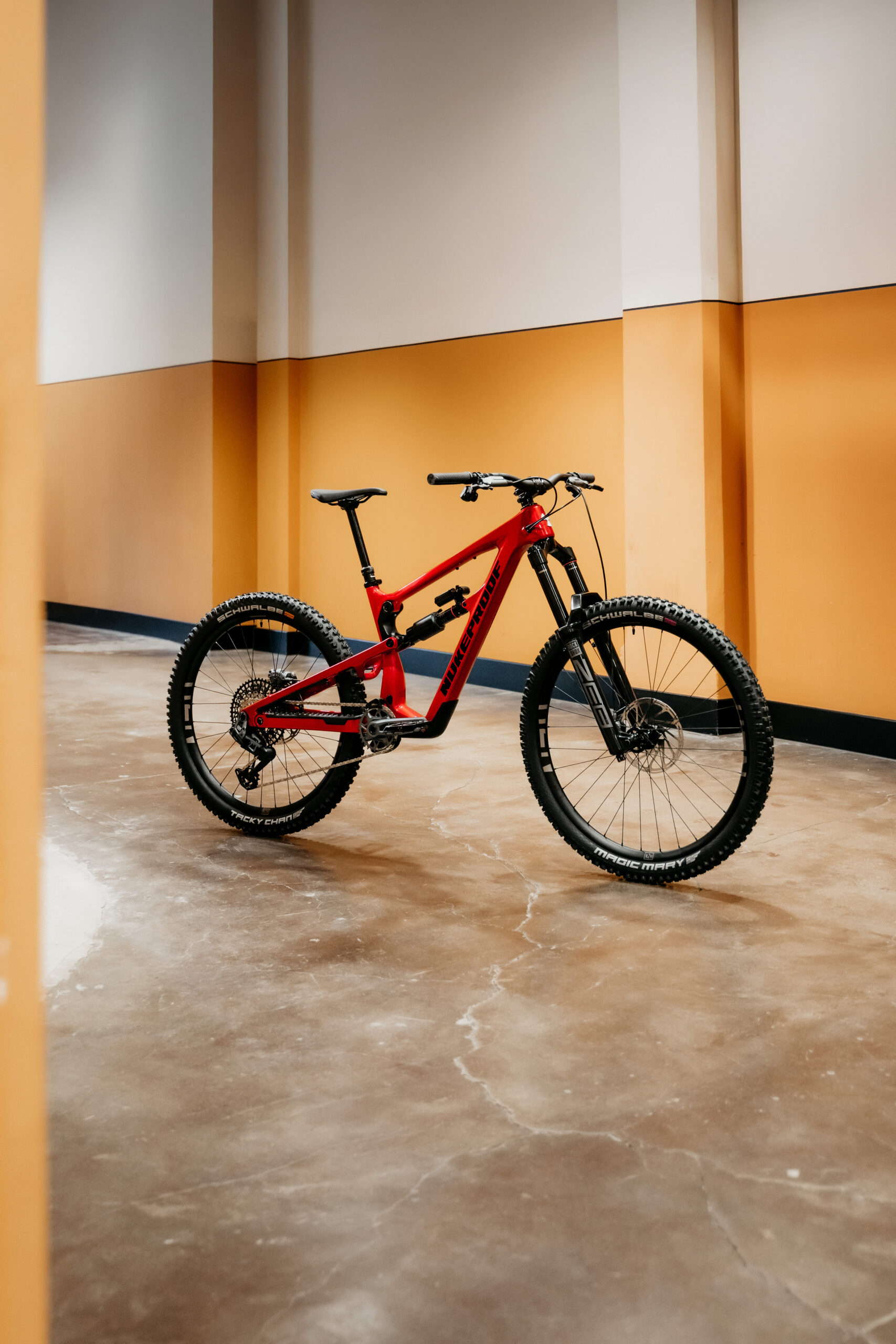

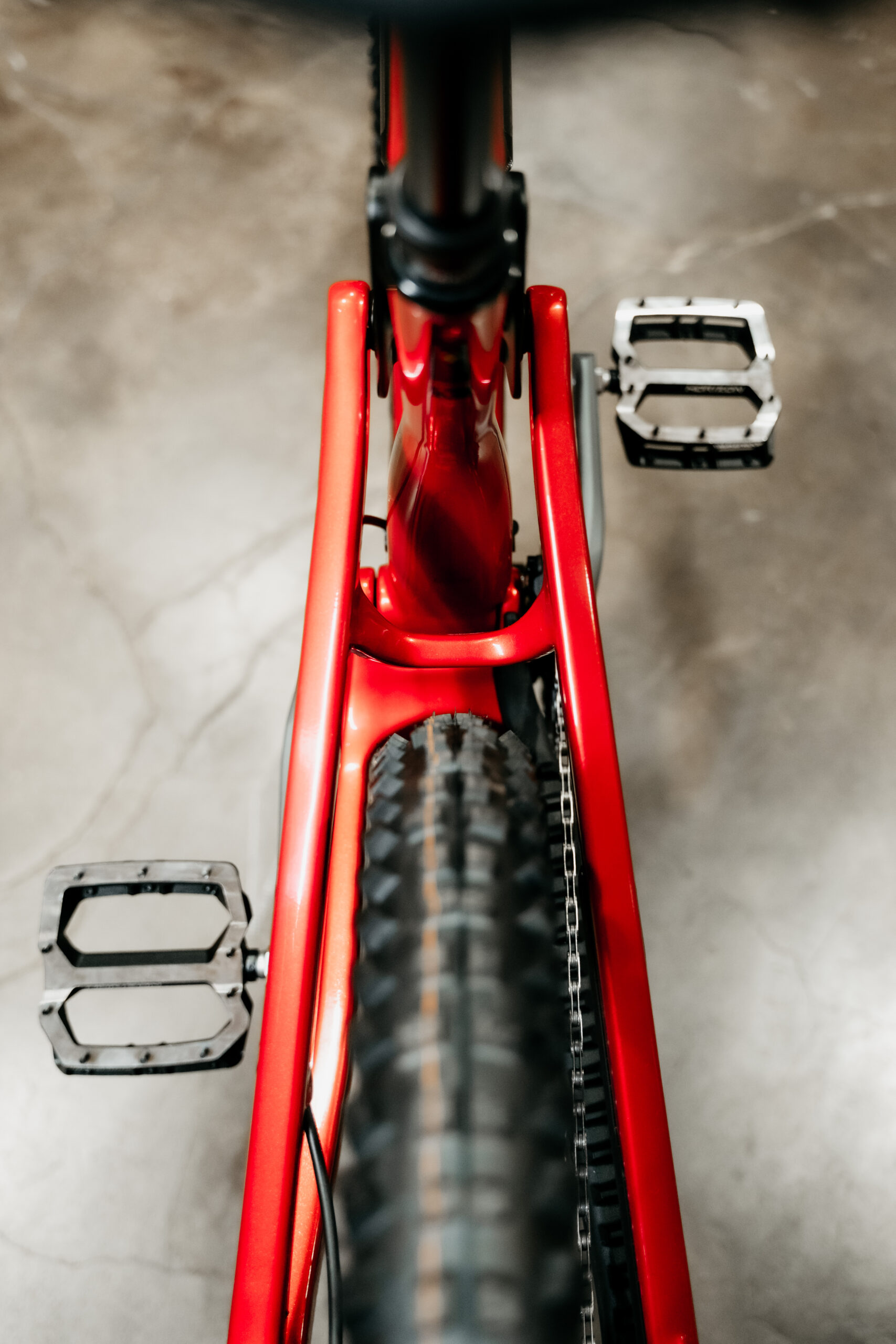

Frame

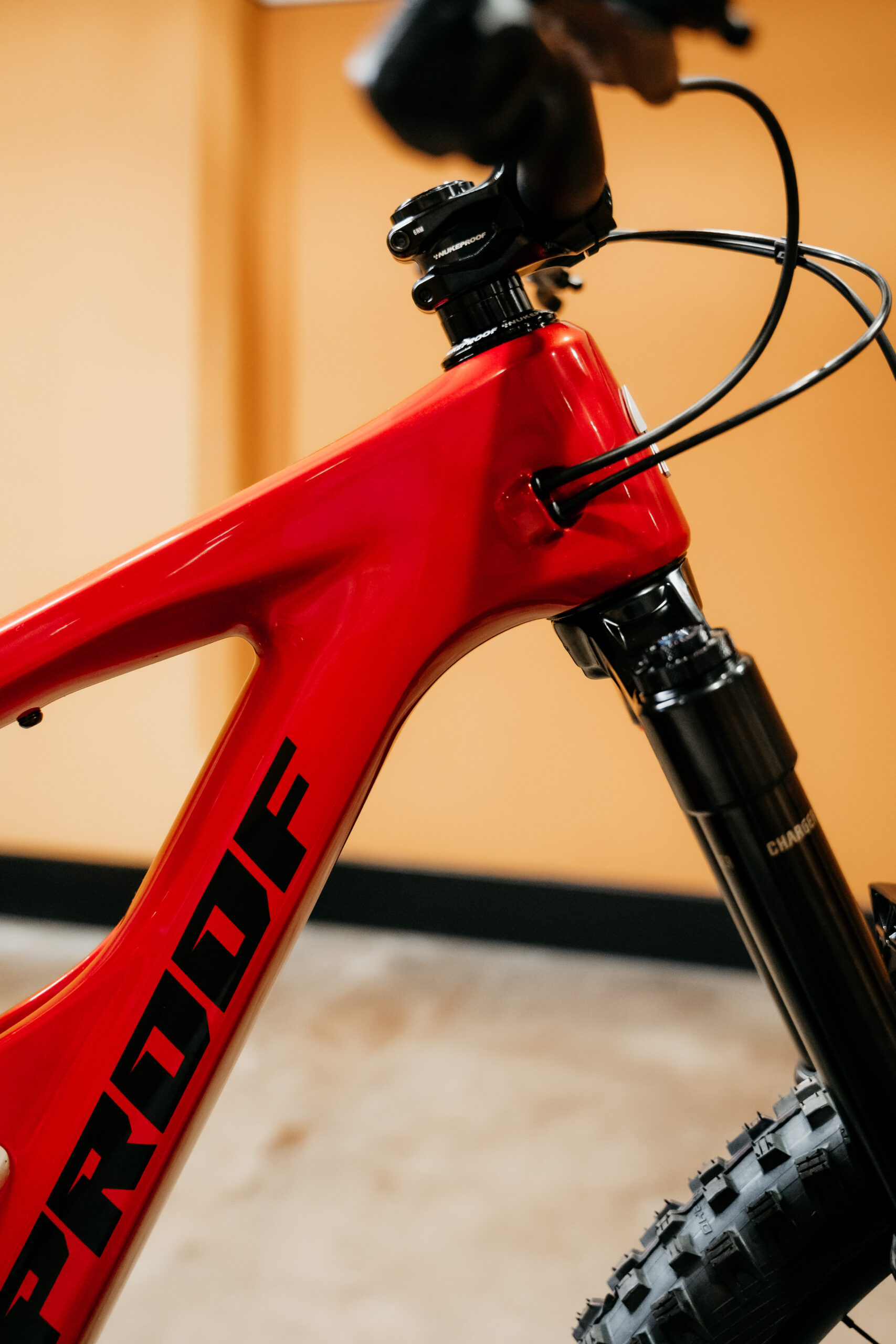

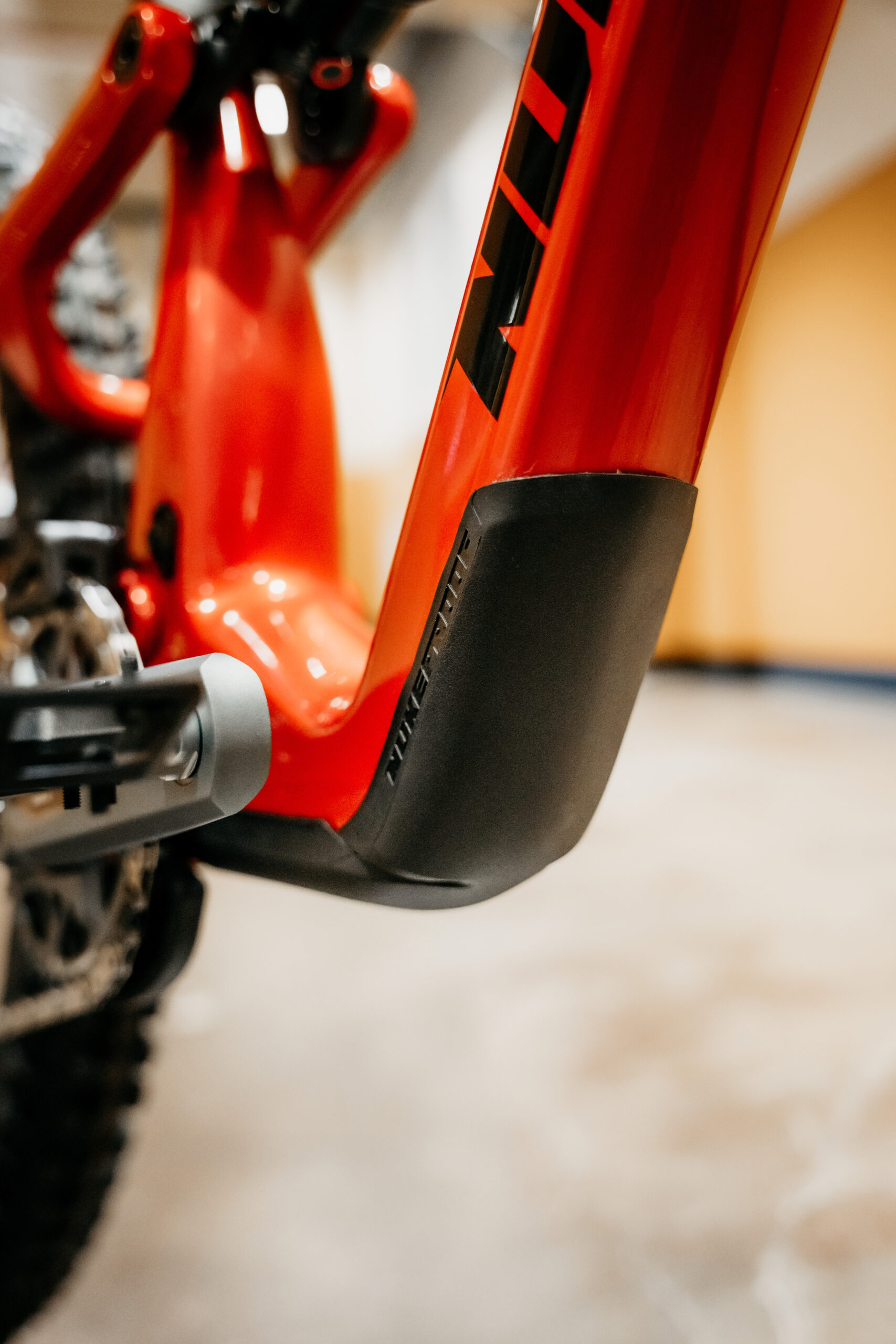

Nukeproof Mega V4 297 Carbon, 165mm Travel, ultra-strong monocoque UD Carbon Fibre frame, internally piped cable routing, ISCG 05 mounts, Max Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing and 3D contoured Rubber frame protection

Material

Carbon

Frame Level

Elite Series

Bike Weight

15.7kg/34.5lbs (Tubeless)

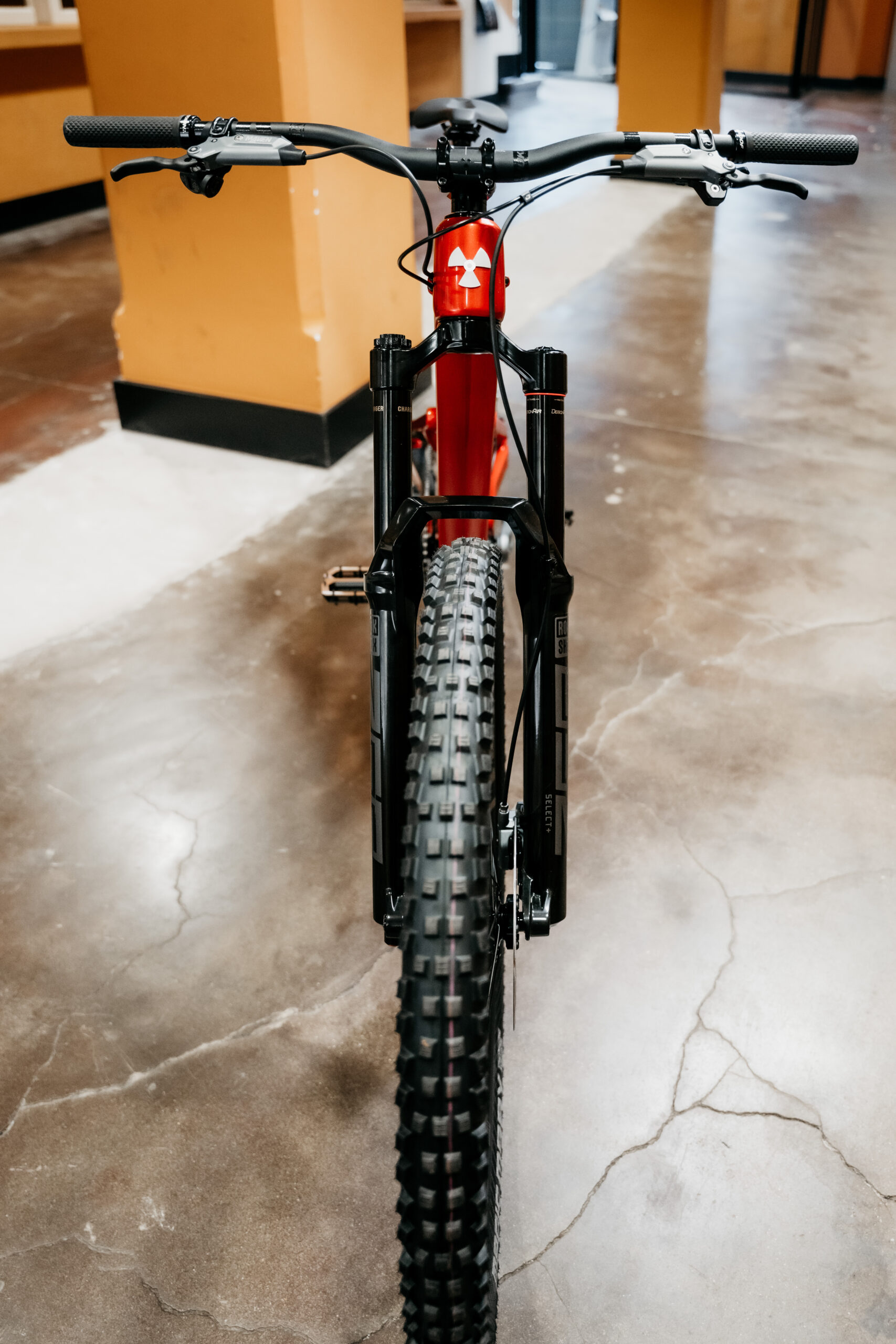

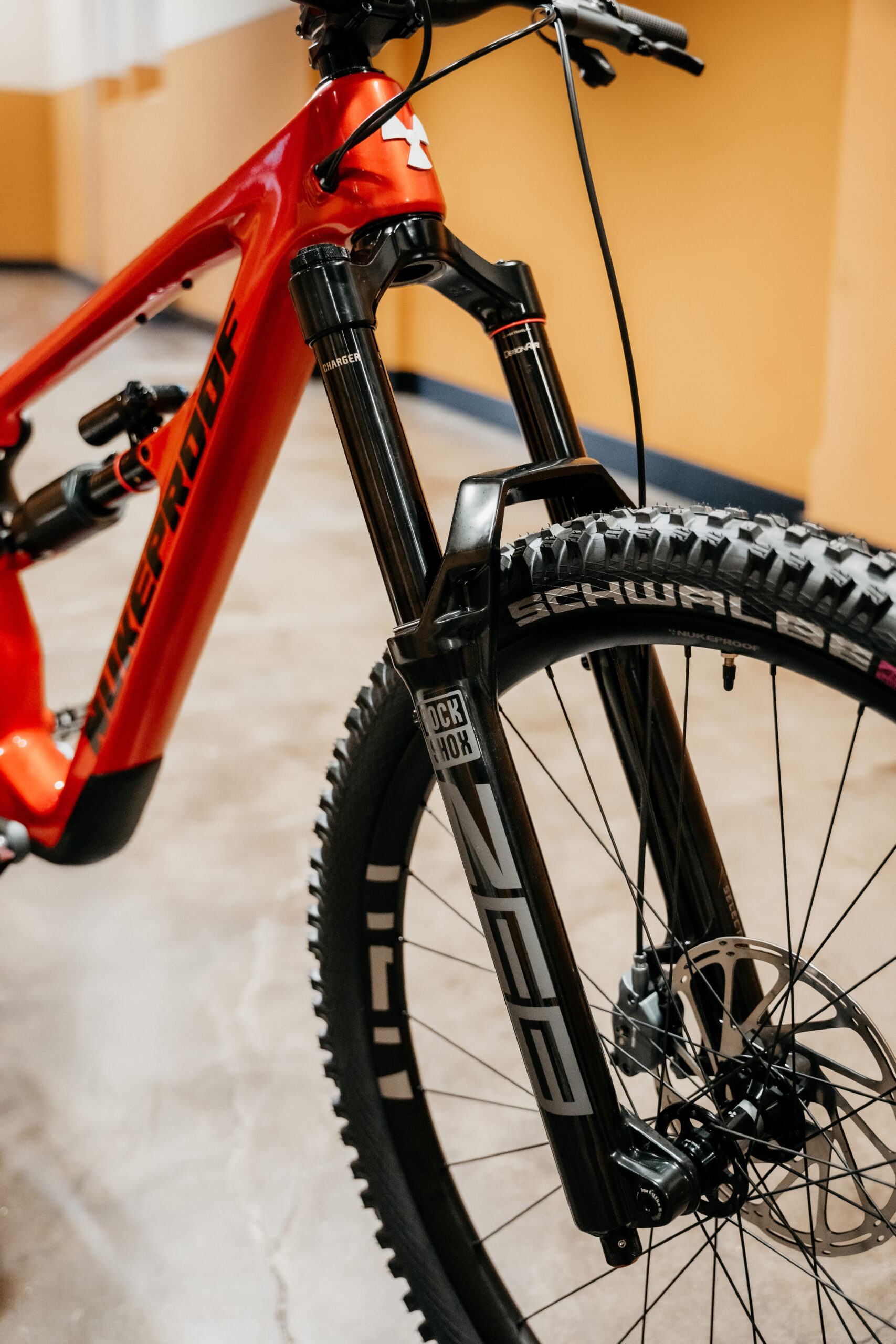

Fork

RockShox Zeb Select +, Charger 3.1 RC2, 29″ Boost 15x110mm Maxle Stealth, Debonair, 170mm, Gloss Black, 44mm Offset

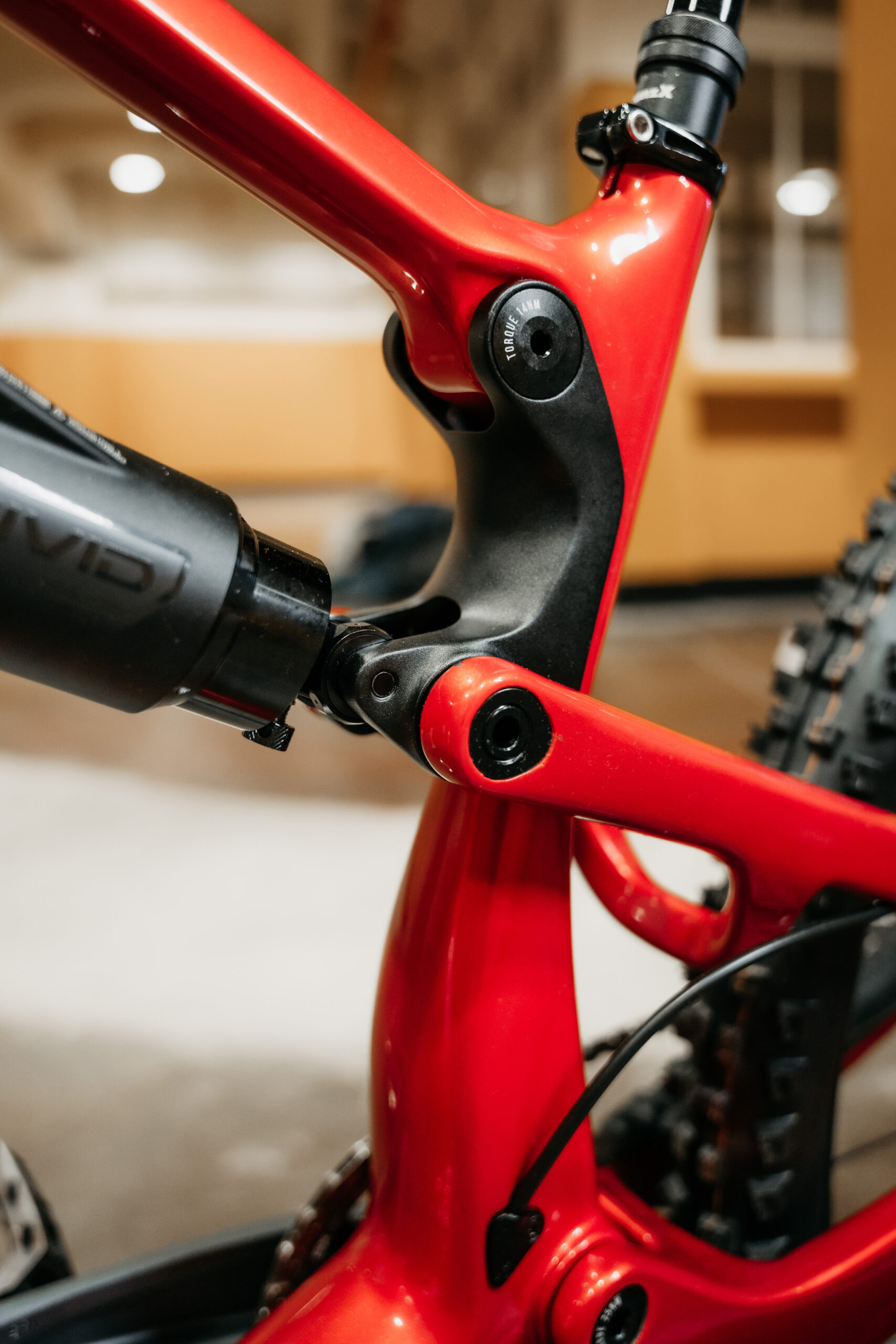

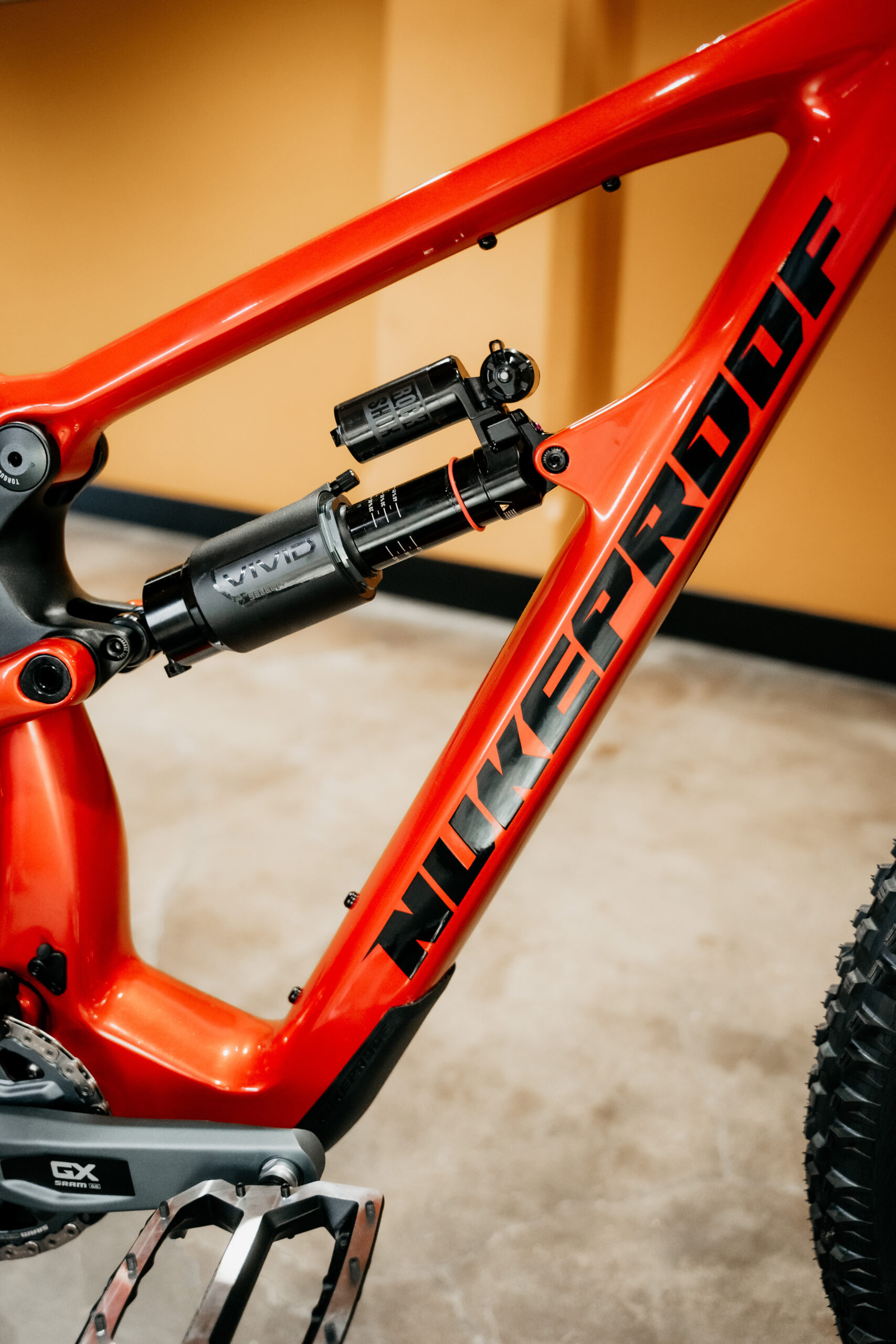

Rear Shock

RockShox Vivid Select+ Air, 230×62.5mm, Bearing End, Custom Tuned with 1 Token, Rebound 25, Compression 30, 4x Lockout. Externally Adjustable Bottom Out

Groupset

Sram Transmission GX

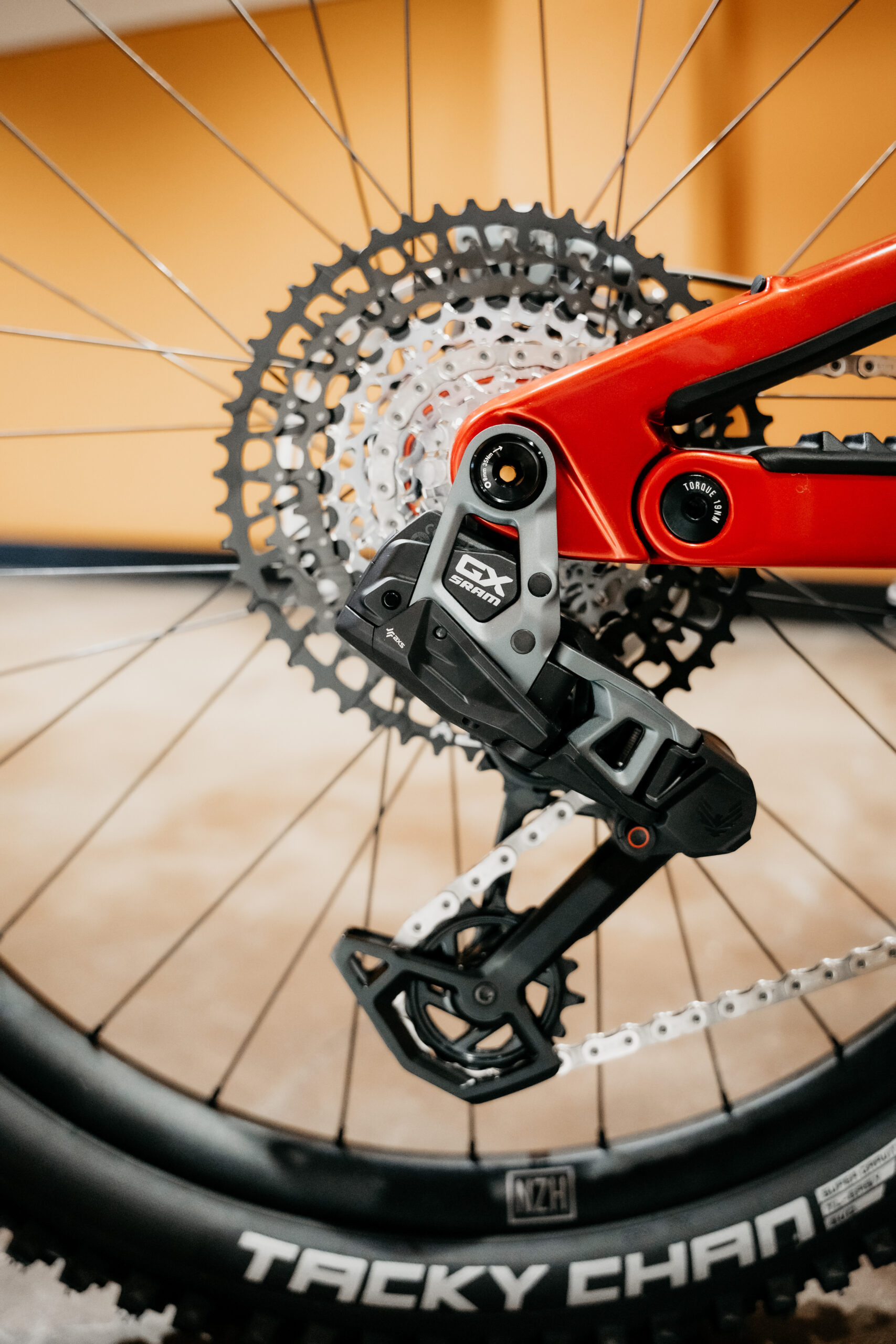

Rear Derailleur

SRAM Transmission GX Rear Derailleur

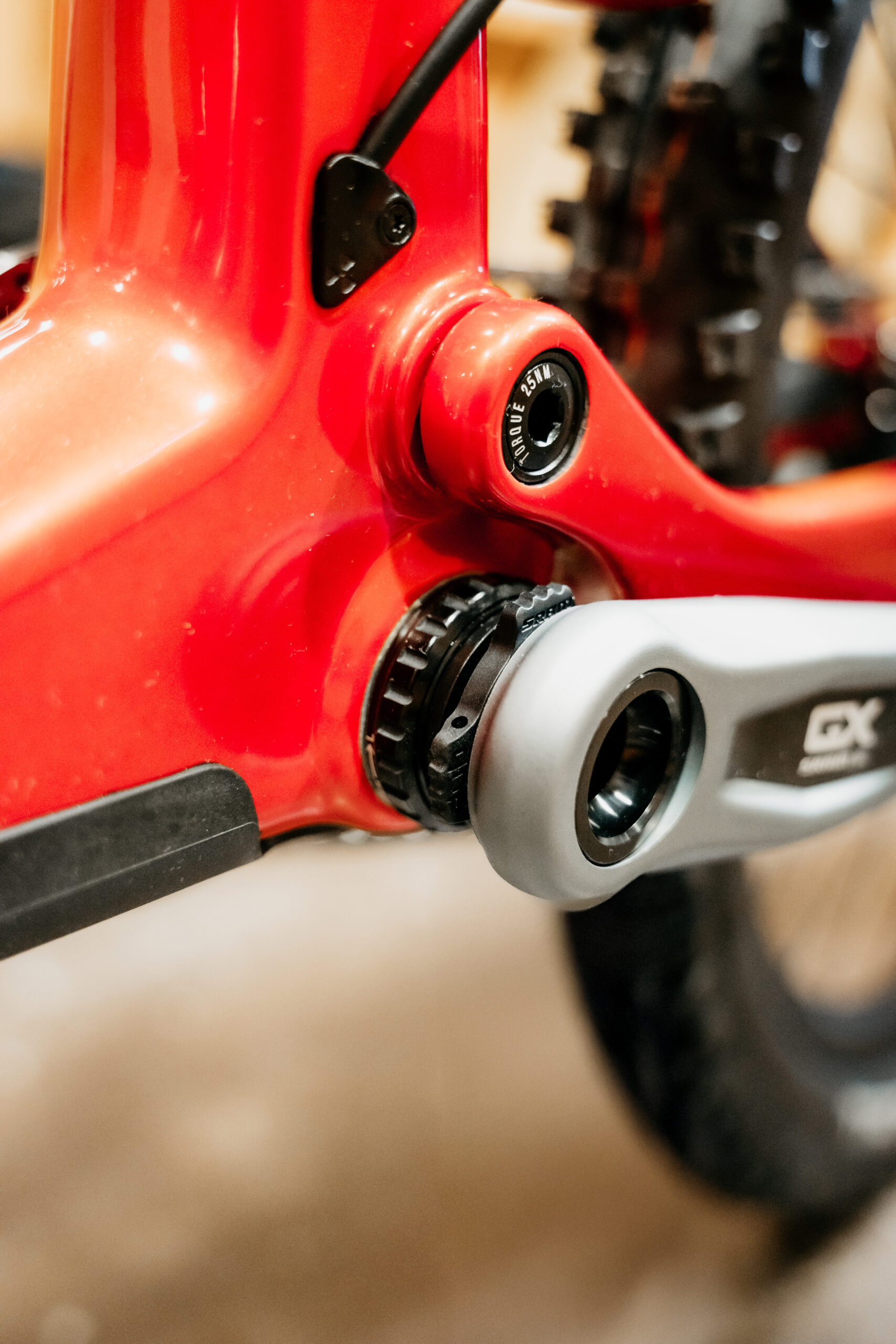

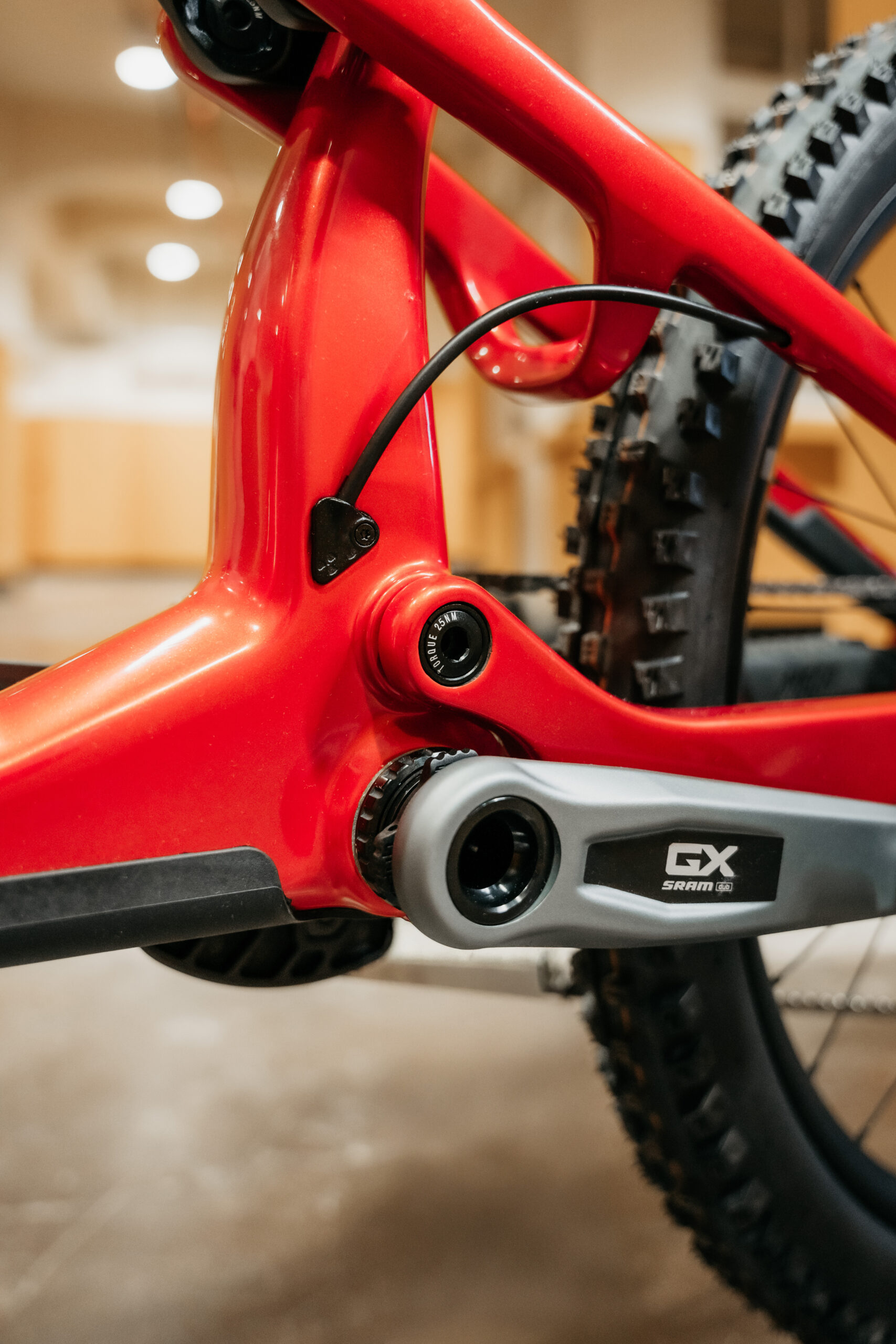

Crank

SRAM GX Eagle, 12-Speed, DUB, 165mm, 32T T-Type, 55mm CL

Cassette

SRAM GX CS1275 T-Type, 12-Speed, 10-52T

Brake Type

Post Mount

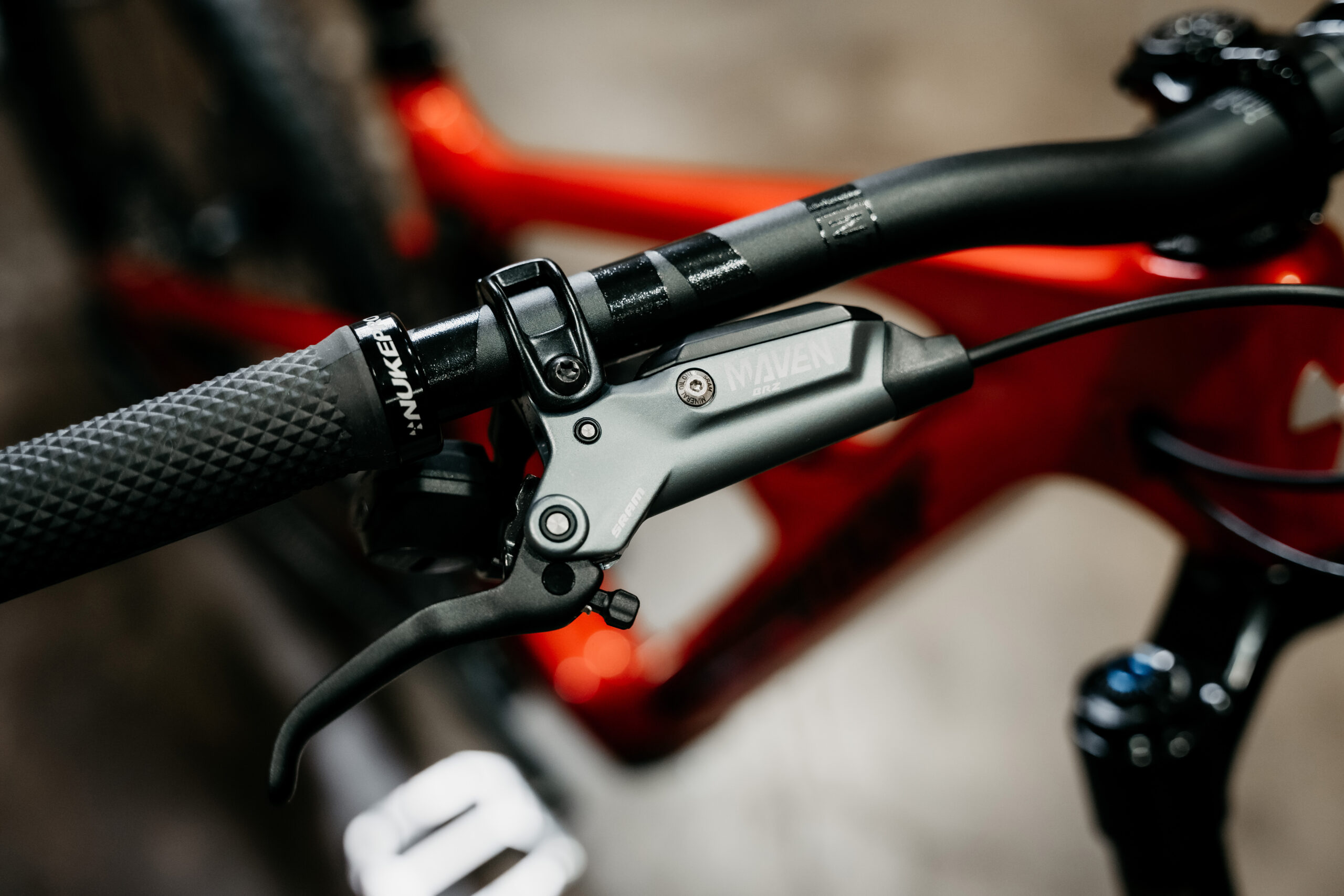

Front Brake

SRAM Maven Bronze, Sintered pads

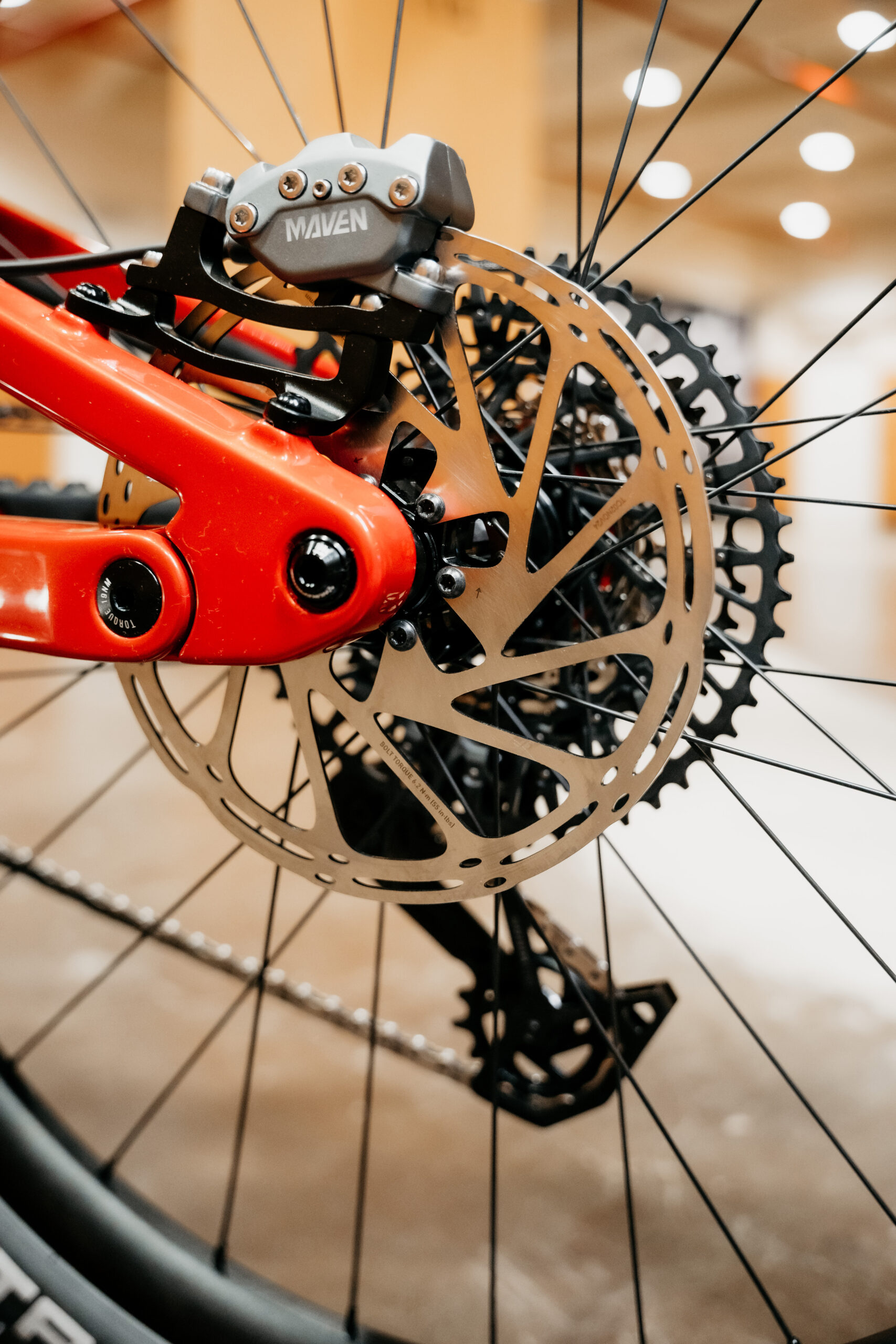

Rear Brake

SRAM Maven Bronze, Sintered pads

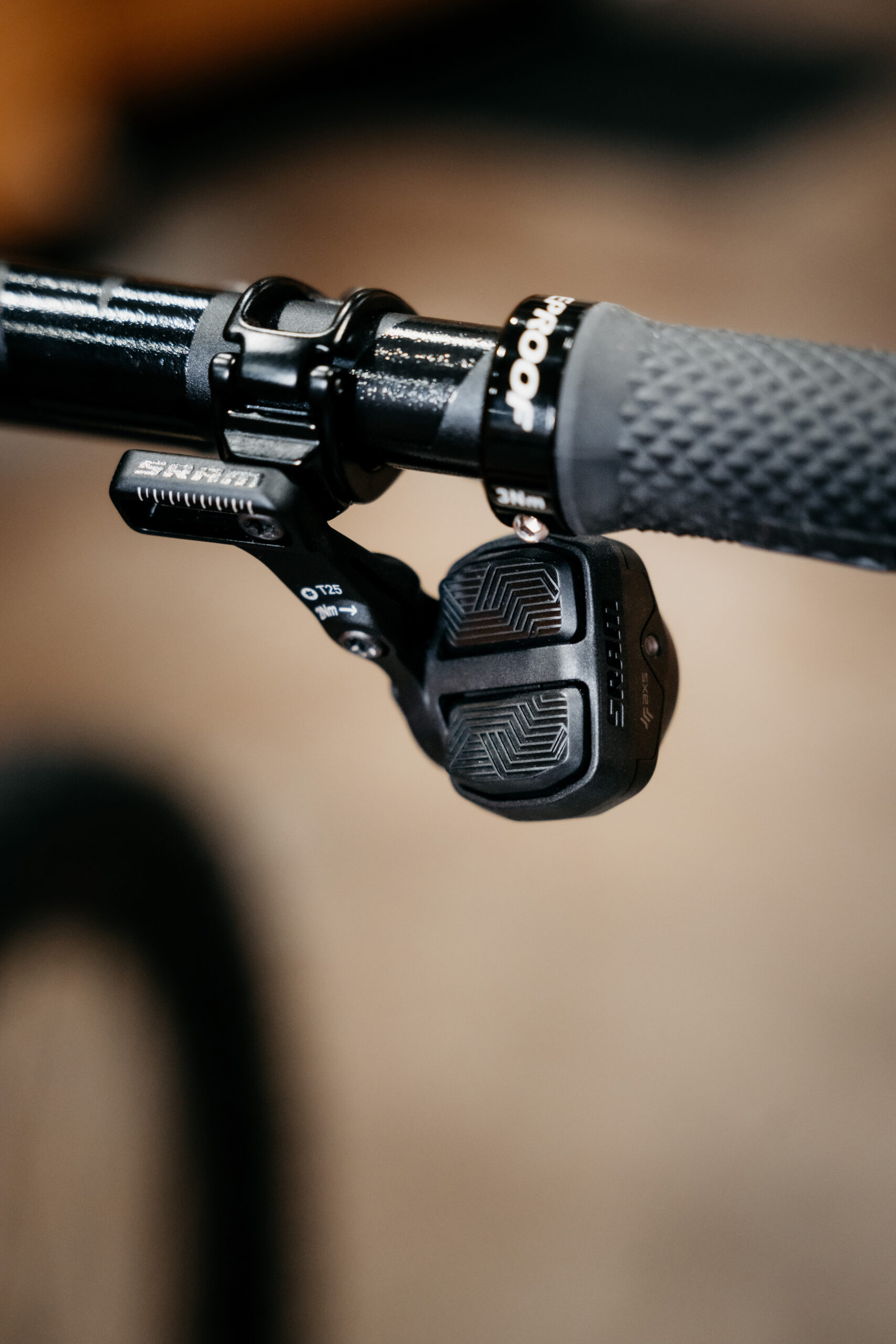

right_shifter

SRAM AXS POD Right Bridge MMX

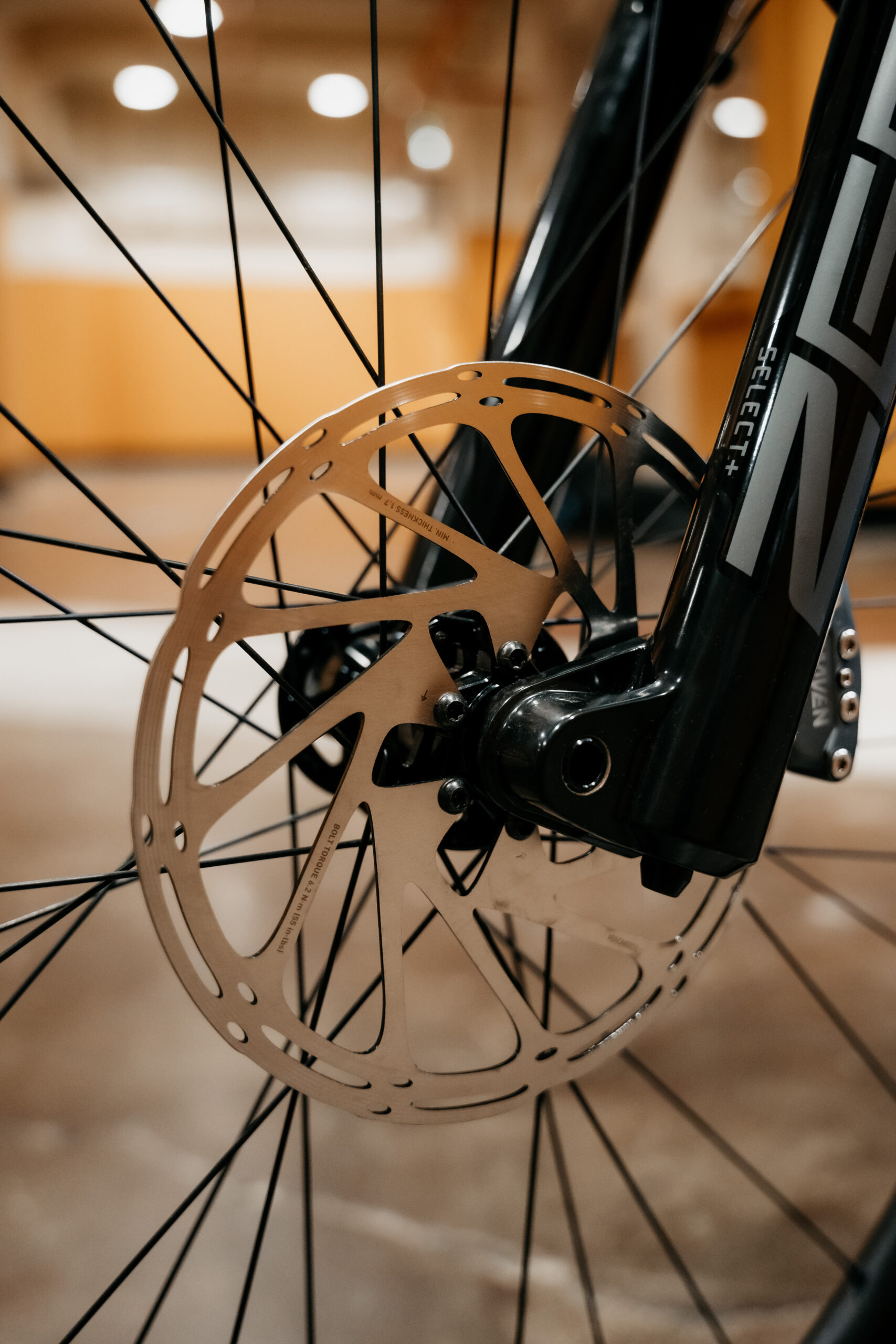

rotor

F: SRAM Centerline 2.0 200mm Rounded, R: SRAM Centerline 2.0 200mm Rounded

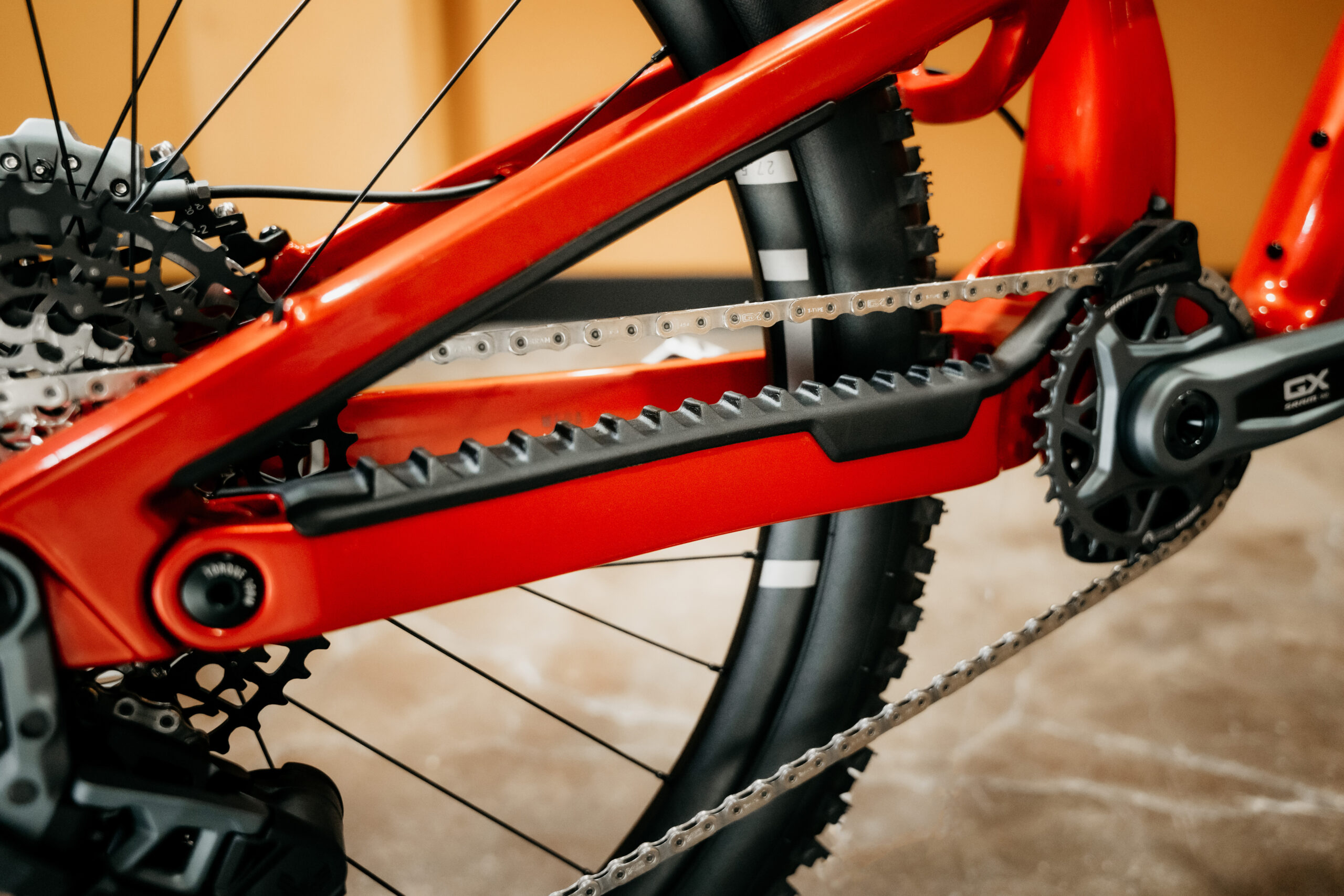

chain

SRAM GX T-Type, 12-Speed Eagle, Flattop, PowerLock, 116 Links

chain_guide

Nukeproof guide with Bash, 28-36T, ISCG-05, 55mm CL, Black

Wheelset

Nukeproof Horizon V2. F: 29″, 15x110mm Boost, R:27.5″, XD Freehub, 148x12mm Boost

Outer Tyre

F: Schwalbe Magic Mary Evo, Super Gravity, TLE, 62-622 / 29x 2.4″ Ultra Soft, R: Schwalbe Tacky Chan Evo, Super Gravity, TLE, 62-584 / 27.5x 2.4″ Soft

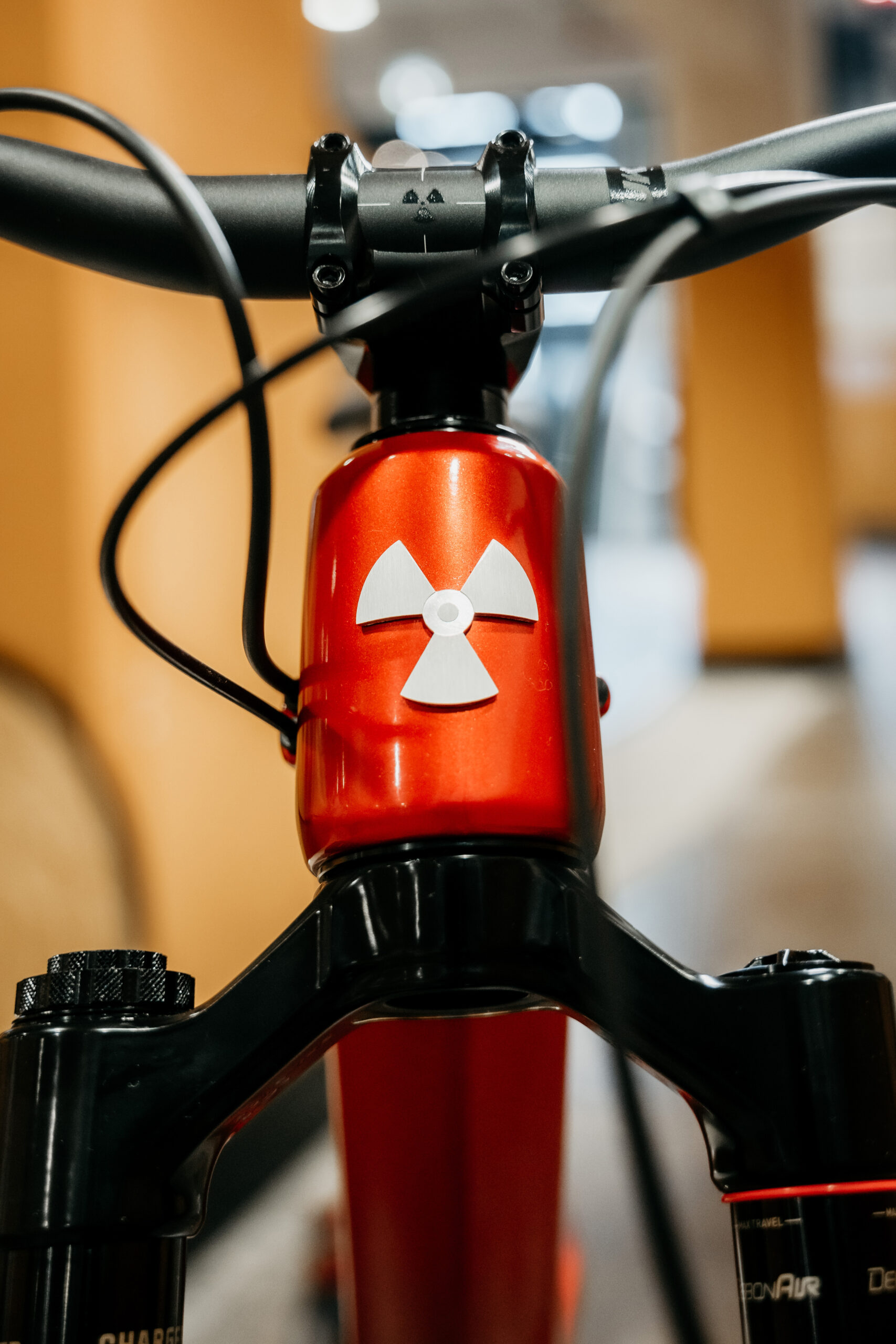

headset

Nukeproof, 44-56 IITS

Handlebar

Nukeproof Horizon V2 25mm Rise, Width – S/M780mm, L800mm, XL800mm, XXL800mm

handlebar_grips

Nukeproof Neutron Single Lock On, Diameter – NP1 – 29.6mm, NP2 & NP3 – 31.8mm

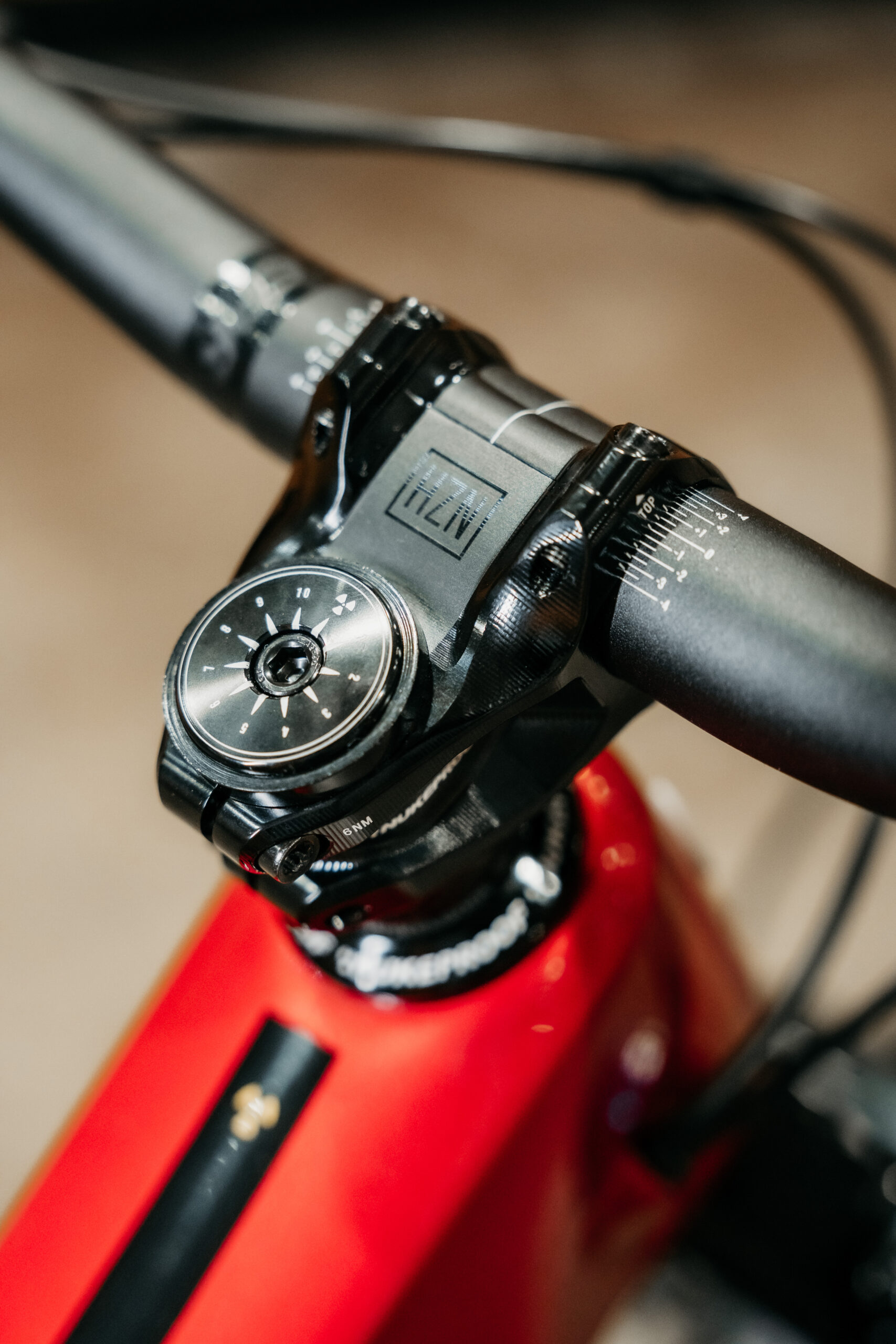

Stem

Nukeproof Horizon, 45mm, Black

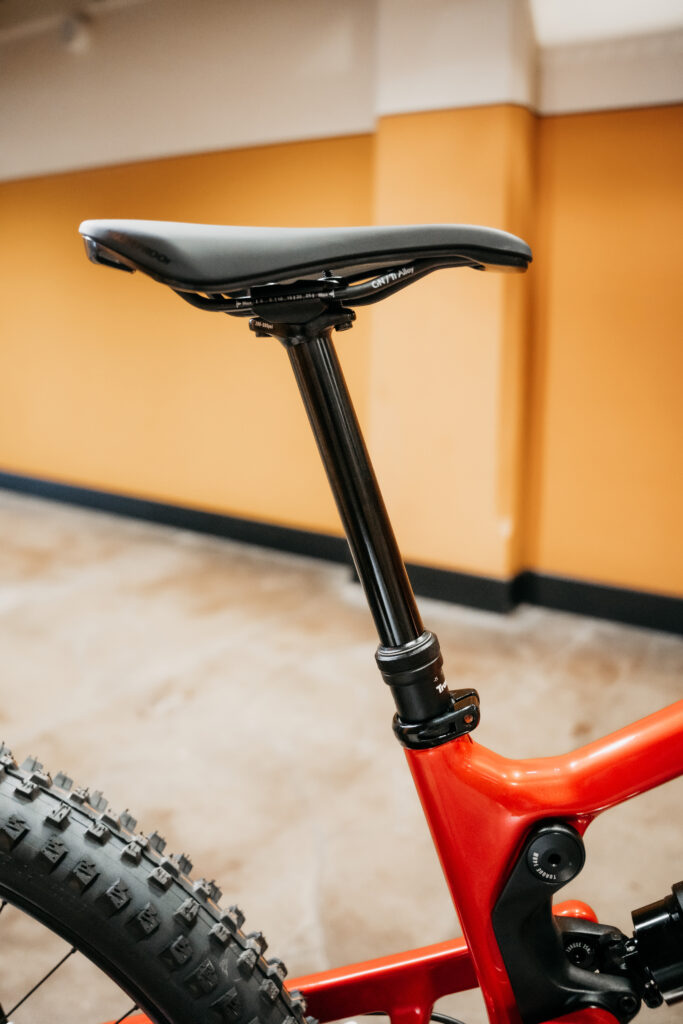

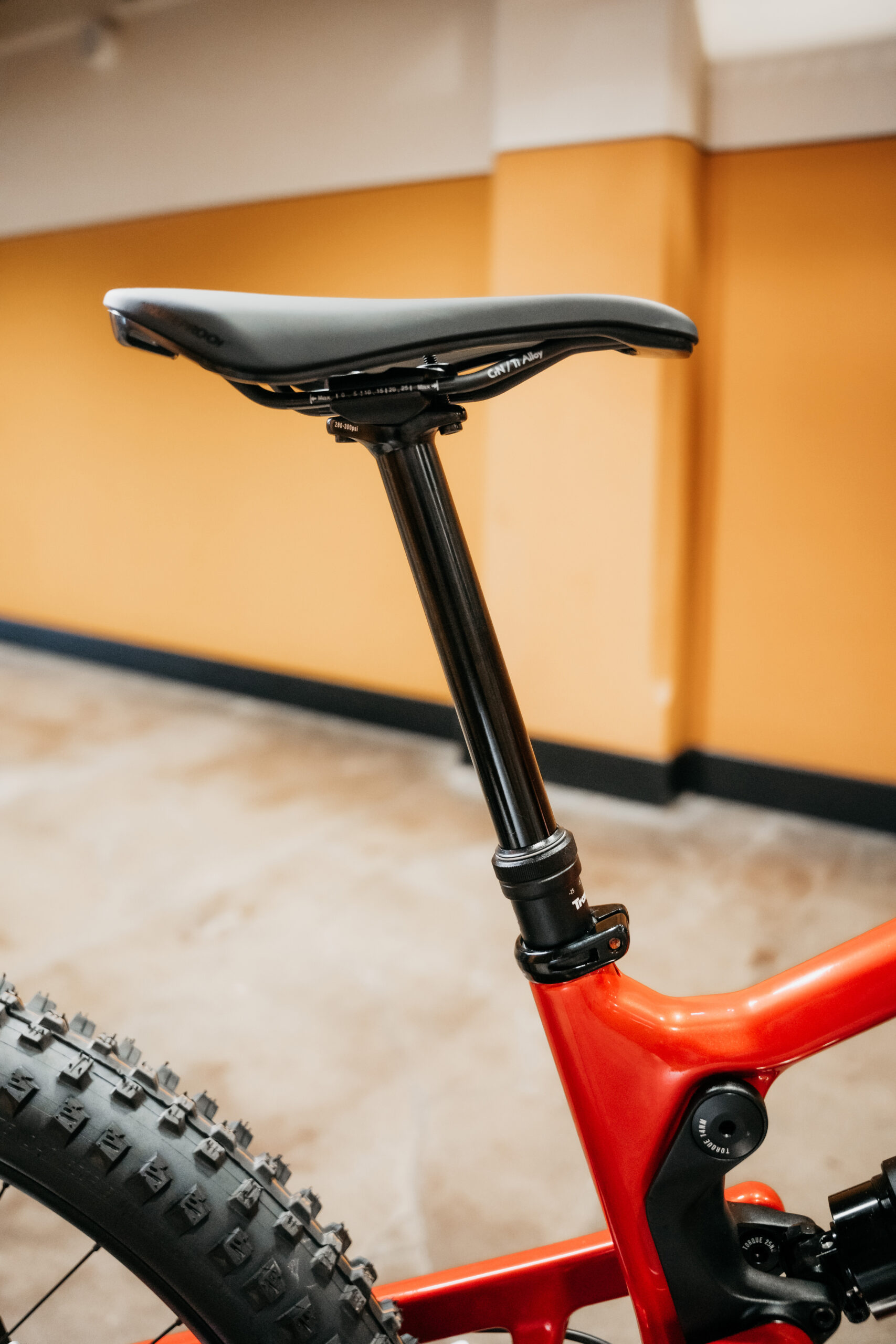

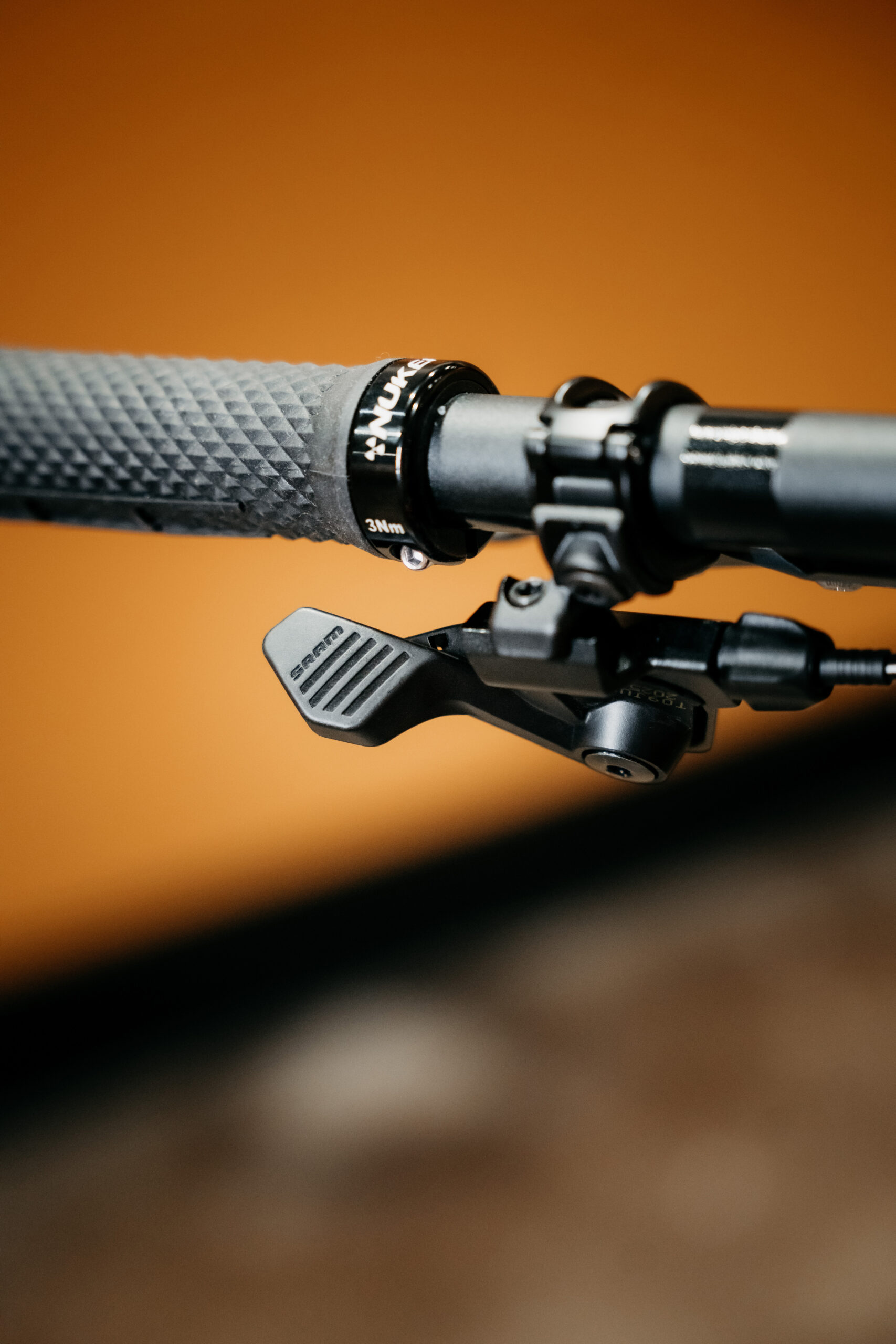

Seatpost

Tranz-X YS108 Internal with SRAM Remote lever, S:150mm drop; M:170mm drop; L:200mm drop; XL/XXL:230mm drop

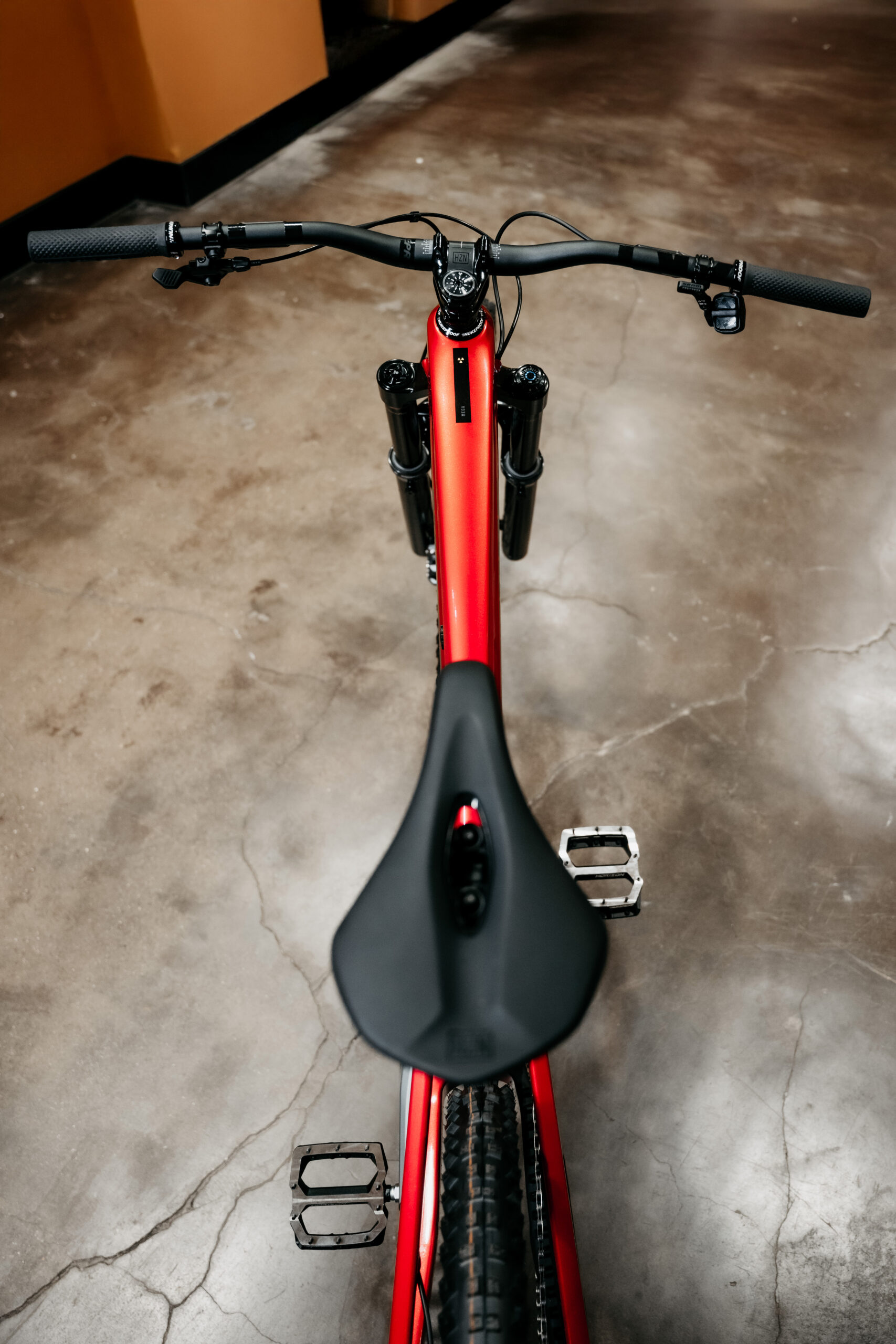

Saddle

Nukeproof Horizon Enduro, Crn/Ti Rails

Range

Enduro

SMALL – 297

MEDIUM – 297

LARGE -297

X-LARGE – 290

XX-LARGE -290

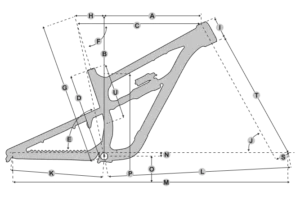

A

Reach

430

455

475

495

515

B

Stack

621.16

621.16

639.22

648.24

657.27

C

Effective top tube

567.7

592.71

610.87

632.79

654.71

D

Seattube length

380

410

440

470

500

E

Effective seattube angle

77.5°

77.5°

78°

78°

78°

F

Actual seattube angle

71°

71°

71.5°

71.5°

71.5°

G

Saddle height for saddle offset

650

700

750

800

850

H

Saddle offset at saddle height

142.22

158.59

166.66

181.58

196.49

I

Headtube length

100

100

120

130

140

J

Headtube angle

64°

64°

64°

64°

64°

K

Chainstay length

435

435

435

440

440

L

Front centre

758.5

783.5

812.11

836.42

860.72

M

Wheelbase

1192.5

1217.5

1246.1

1275.39

1299.7

N

Bottom bracket drop

30 / 10

30 / 10

30 / 10

30

30

O

Bottom bracket height

345

345

345

345

345

P

Stand over height

725.16

724.41

722.92

730.78

736.07

Q

Fork travel

170

170

170

170

170

R

Trail

132.33

132.33

132.33

132.33

132.33

S

Fork offset

42

42

42

42

42

T

Axl te crown

582

582

582

582

582

U

Maximum seatpost insert

250

250

255

275

294
