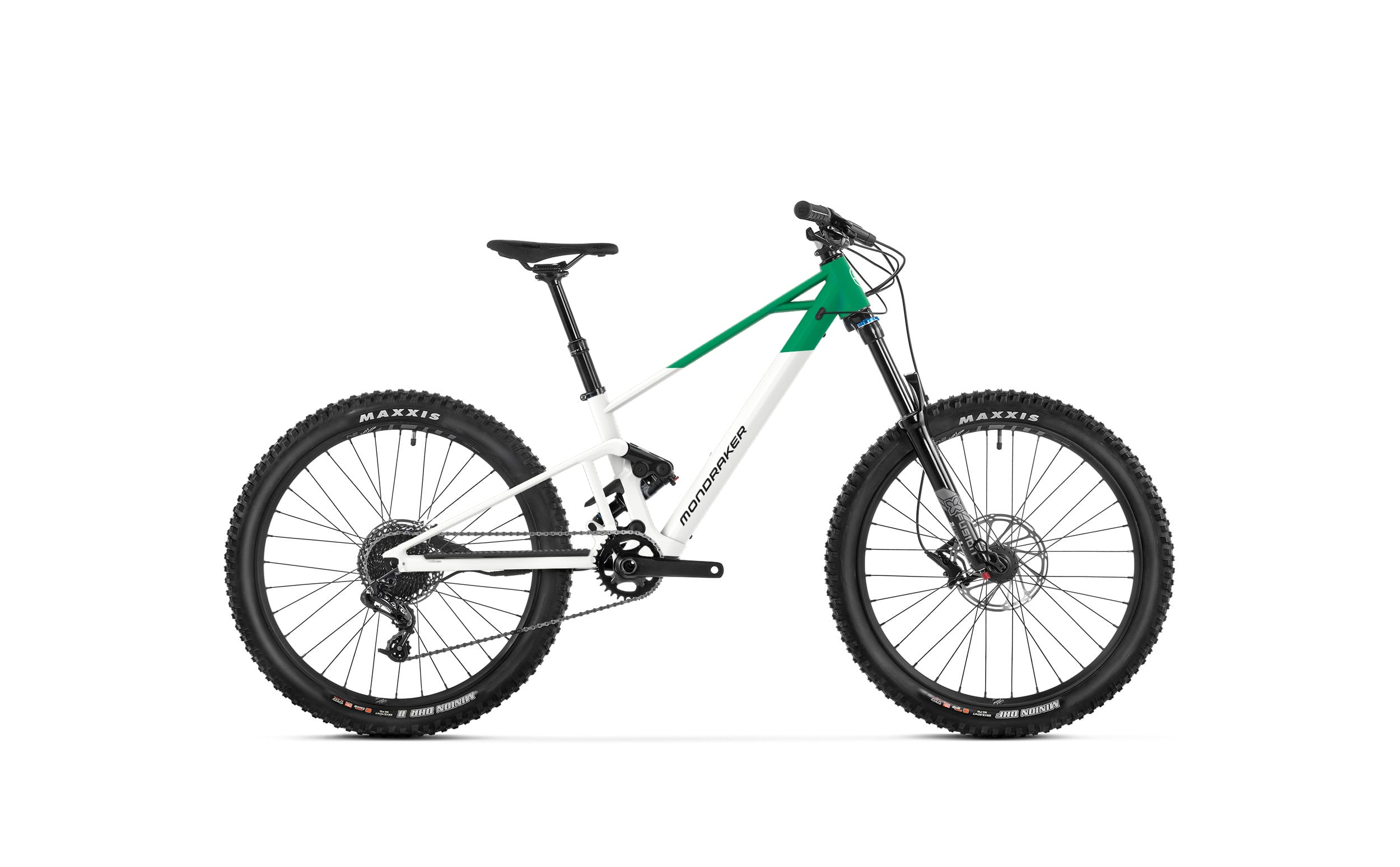

Mondraker F-Play 24

kr 42999,00

På leverandørlager. Ta kontakt for levering

Utsolgt, men kan bestilles

4299942999
Sporing / tyveriforsikring
kr 1979,00
Tillegg: kr 0,00
Totalpris: kr 42999,00
  • frame

    Frame

    F-Play 24 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, 1x drivetrain compatible



    sizes

    Sizes

    One size: 300mm

  • rear shock

    Rear shock

    X-Fusion 02PRO R, 165×42.5mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings



    shock settings

    Shock settings

    A-Tune light compression

  • fork

    Fork

    X-Fusion Slant RC 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 34mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload



    headset

    Headset

    Onoff ZS44/ZS56, 1-1/8″, 1.5″ head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º

  • stem

    Stem

    Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore



    handlebar

    Handlebar

    MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore

  • grips

    Grips

    Onoff Beehive, 1lock-on, 135mm



    seatpost

    Seatpost

    X-Fusion Manic LC internal, diameter 31.6mm, 1X Remote lever, 100mm

  • saddle

    Saddle

    SDG Fly JR



    front brake

    Front brake

    Shimano MT501, RT56 180mm IS 6 bolts rotor, resin pads

  • rear brake

    Rear brake

    Shimano MT501, RT56 180mm IS 6 bolts rotor, resin pads



    brake lever

    Brake lever

    Shimano MT501, servo wave, alloy lever

  • rims

    Rims

    MDK-HP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes



    spokes

    Spokes

    CN round stainless steel

  • front hub

    Front hub

    DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts



    rear hub

    Rear hub

    Mahle-Ebikemotion X-30, HG freehub

  • front tire

    Front tire

    Maxxis Minion DHF 24×2.4, Tubeless ready, 3C MAXX TERRA, EXO Protection, 60TPI, folding bead



    rear tire

    Rear tire

    Maxxis Minion DHR II 24×2.3, Tubeless ready, EXO Protection, 60TPI, folding bead

  • crankset

    Crankset

    Prowheel DMJ-CR094S-TT, Direct mount chainring, 150mm



    rings

    Rings

    30T, steel

  • bottom bracket

    Bottom bracket

    Prowheel PW-MBB73 73mm



    pedals

    Pedals

    SDG Slater JR

  • chain

    Chain

    Shimano Deore M6100, 12s, Quick-link



    rear derrailleur

    Rear derrailleur

    Shimano Deore M6100, SGS, Shadow+, 12s

  • shift levers

    Shift levers

    Shimano Deore M6100, Rapid Fire Plus, 12s



    casette

    Casette

    Sunrace CSMZ600, 11-51T

  • derailleur hanger

    Derailleur hanger

    Mondraker M077



    weight

    Weight

    17,2 kg

  • display

    Display

    iWoc ONE Head Unit



    motor

    Motor

    Mahle X-30, Drive Unit

  • battery

    Battery

    Mahle IX250Wh


















Frame size
 F-Play 24
A Seattube length 320 mm
B Toptube length 525 mm
C Bottom bracket drop -10 mm
D Bottom bracket height 295 mm
E Chainstay length 420 mm
F Seat tube angle 71º
G Effective seattube angle 76º
H Headtube angle 67º
I Fork Offset 39 mm
J Wheelbase 1050 mm
K Headtube length 90 mm
L Reach 375 mm
M Stack 513 mm

-f-play
-f-play-24-2026-suspension-setup-guide

Farge

Optic White
Størrelse

One Size 135-155cm
