Grips
Schindelhauer (bolt-on)

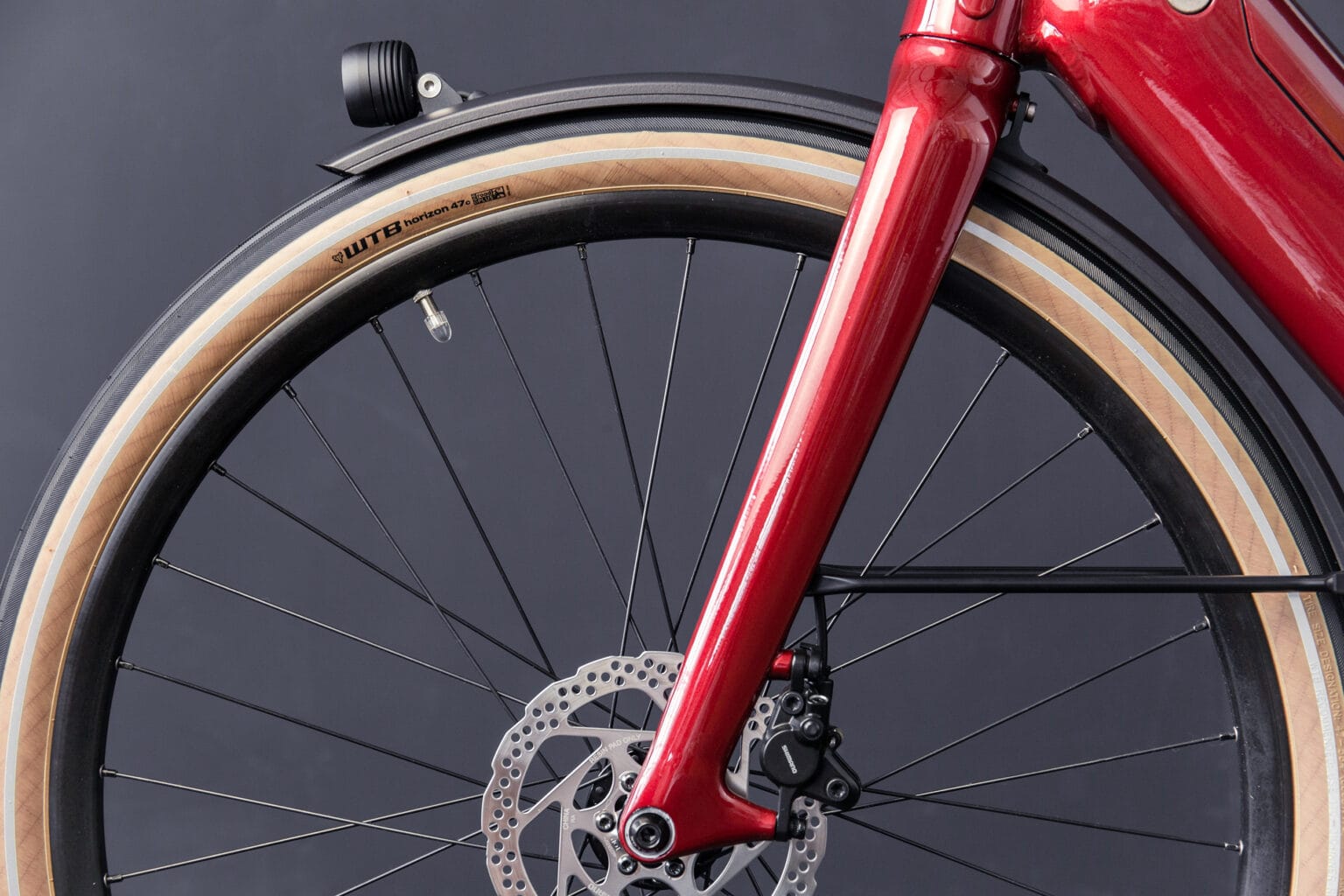

Fork
Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes

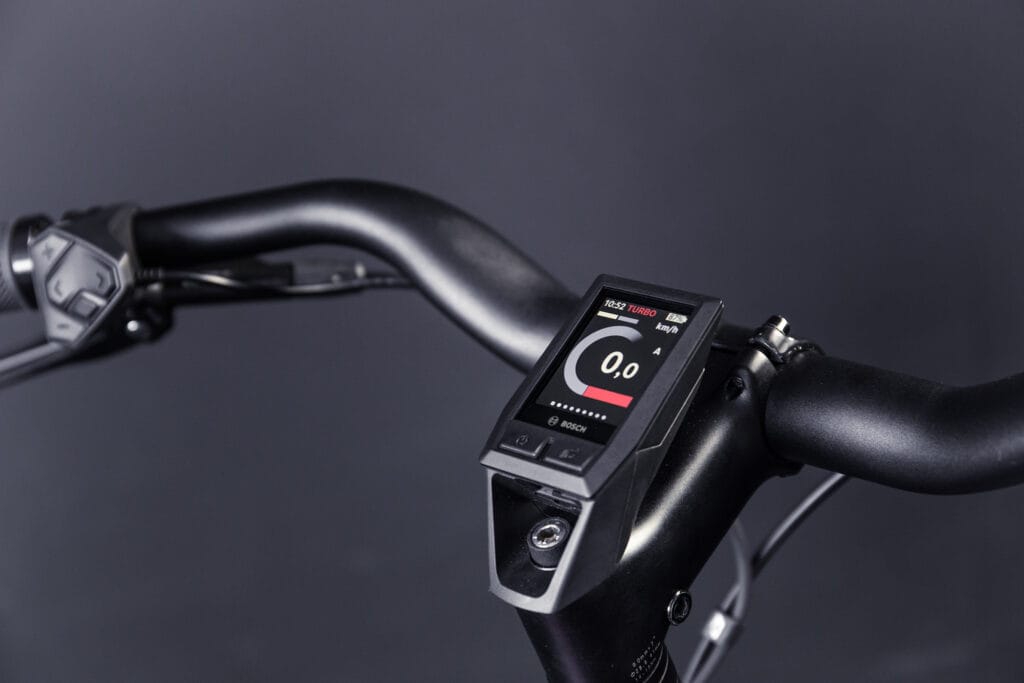

Display
Bosch – KIOX
Headset
Tange Seiki – integrated, 1 1/8-1.5
Max . total weight
155 kg (bike + rider + luggage)

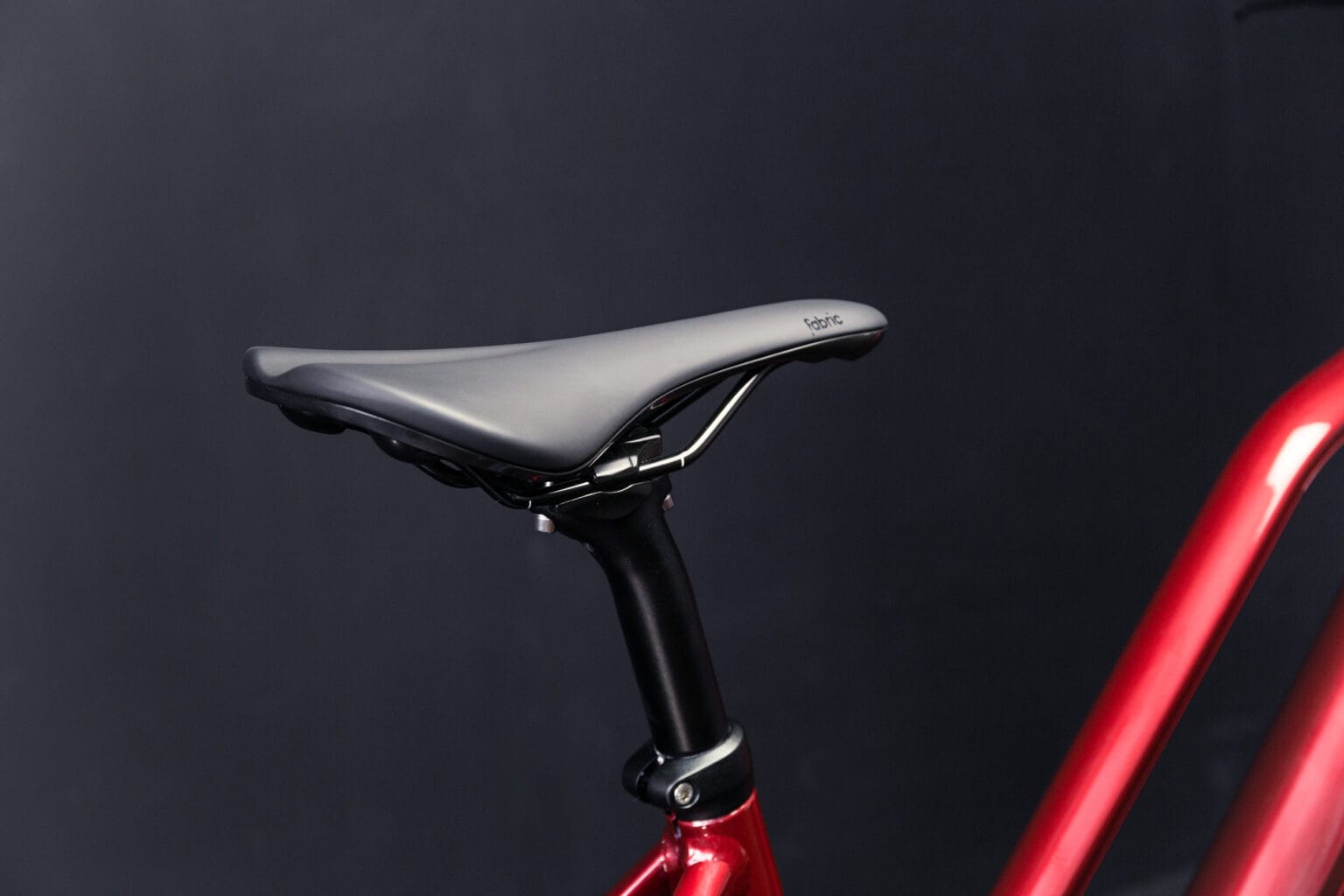

Saddle
FABRIC – Scoop Shallow Sport

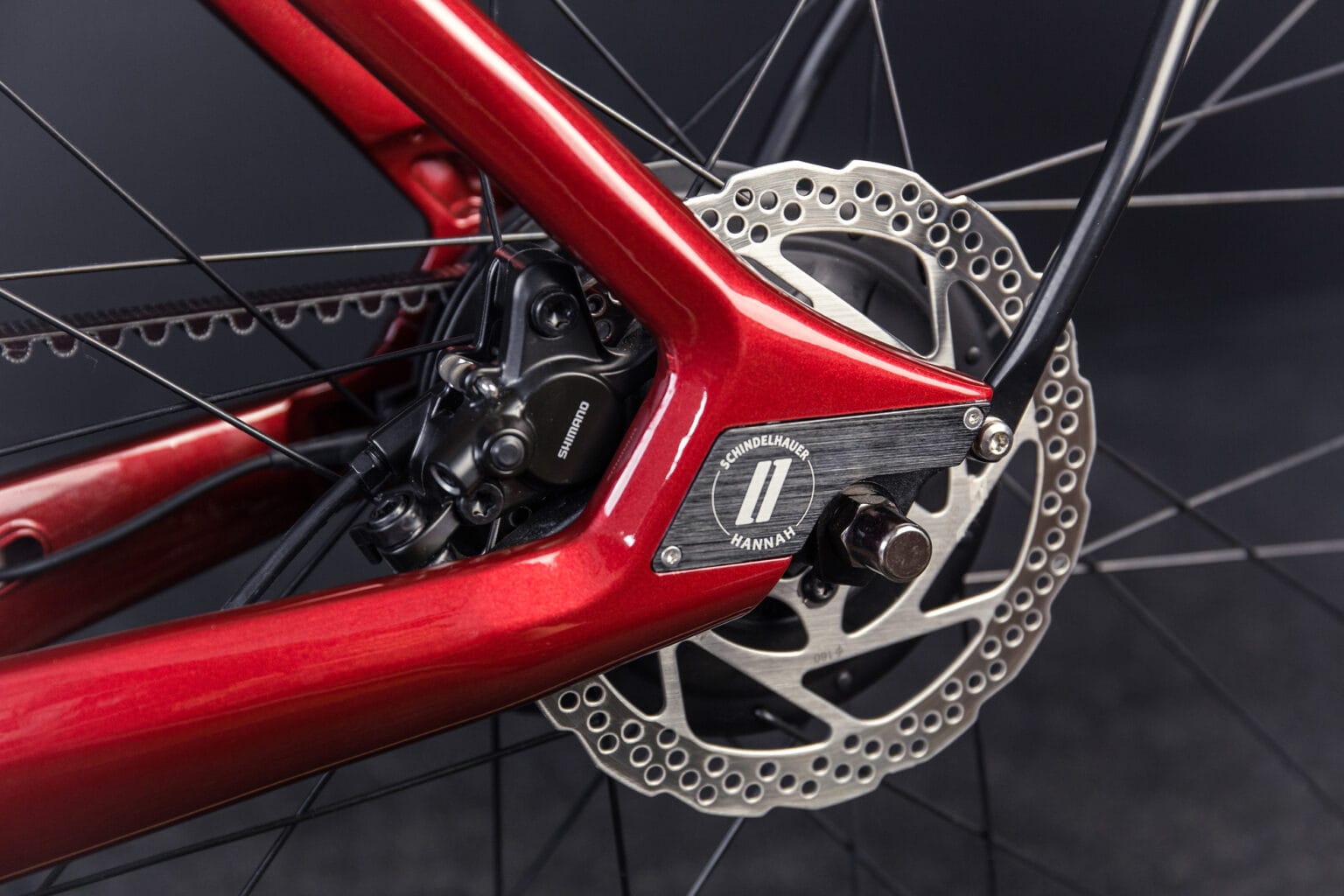

Brakes
Shimano – MT401 disc brakes (hydraulic), 160 mm
Stem
Satori – Stealth, aluminium
Mudguards
Alumee – W52 Schindelhauer custom

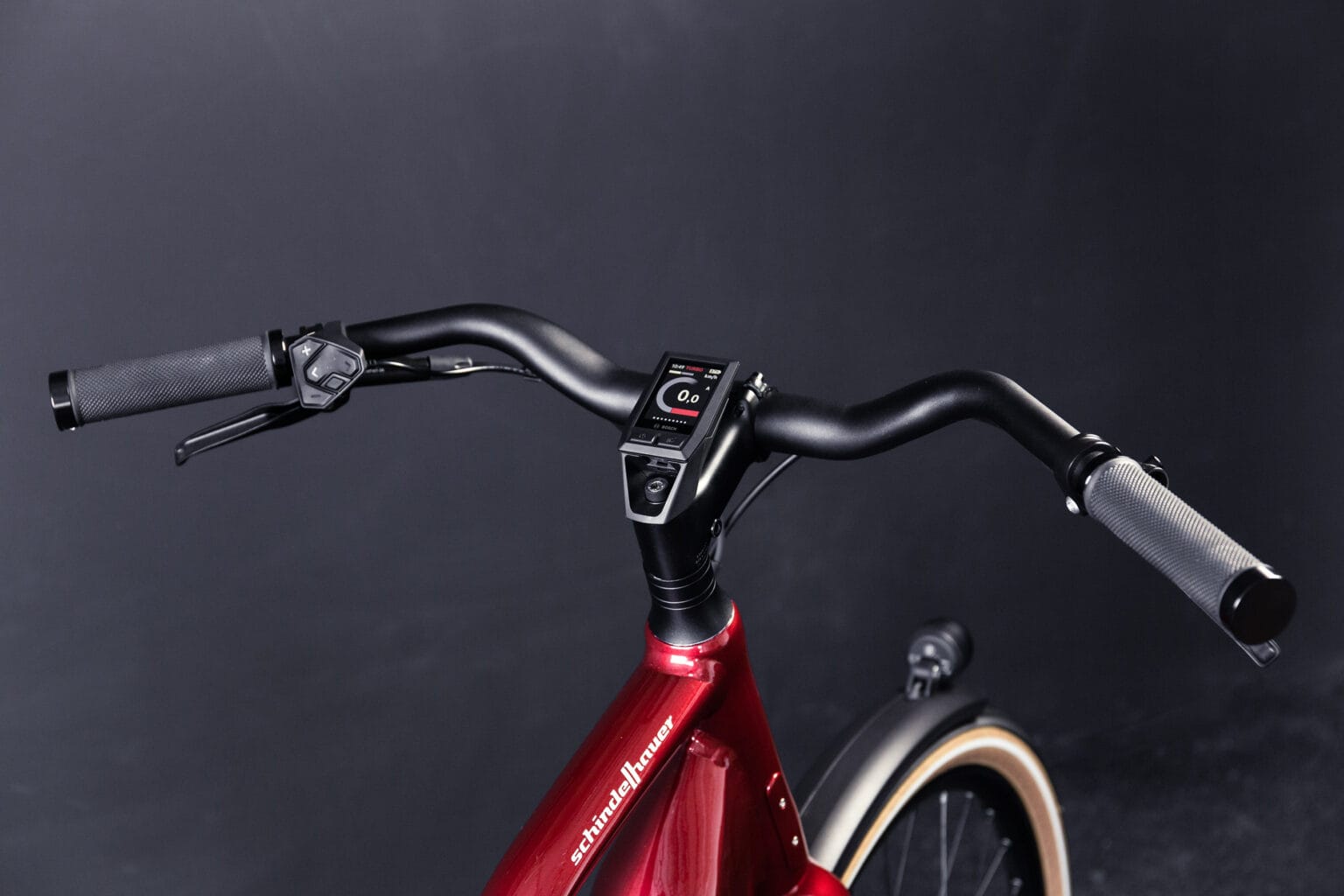

Handlebar
Satori – Seagull, aluminium

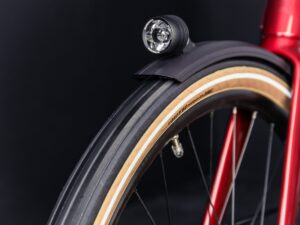

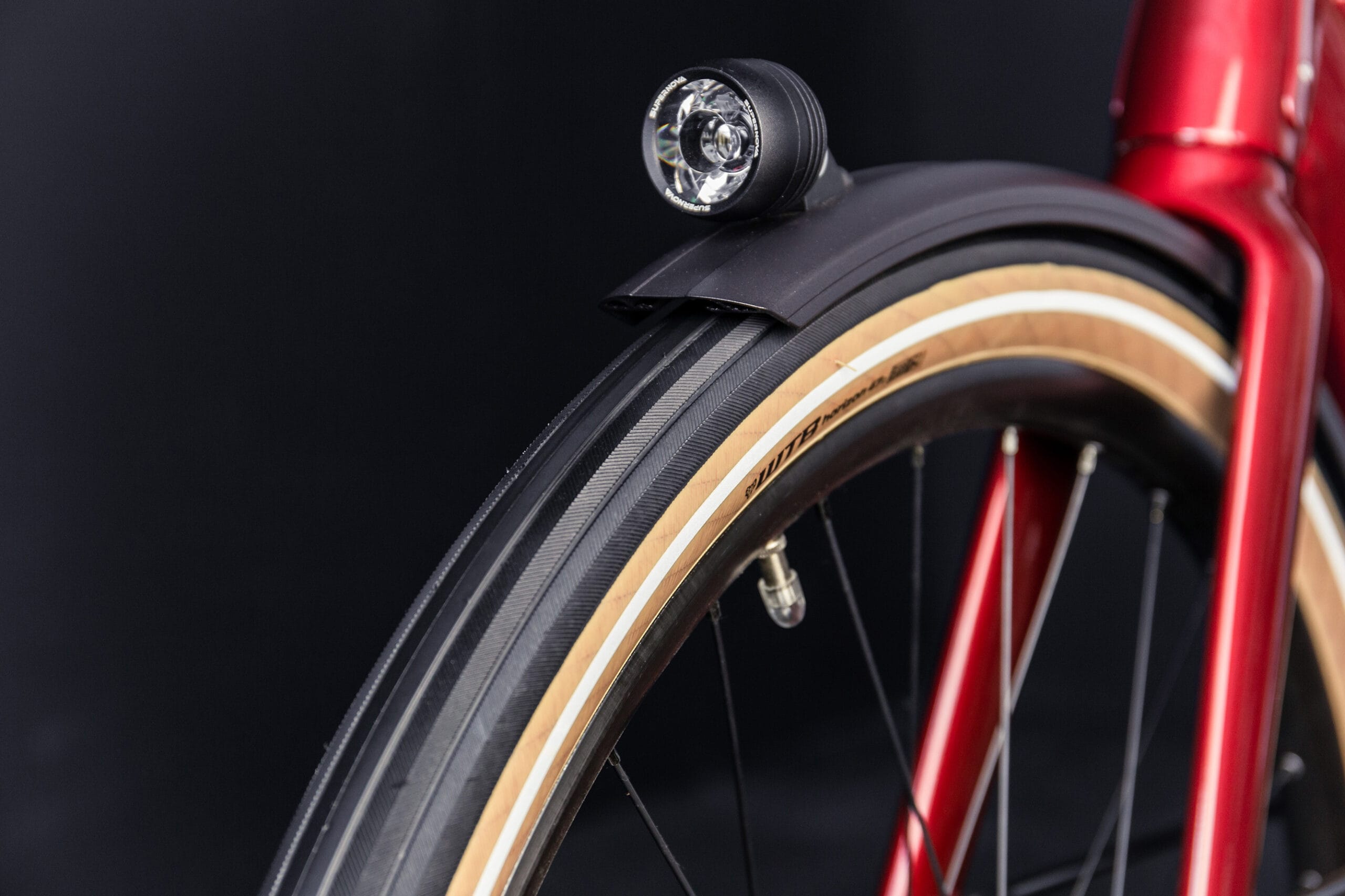

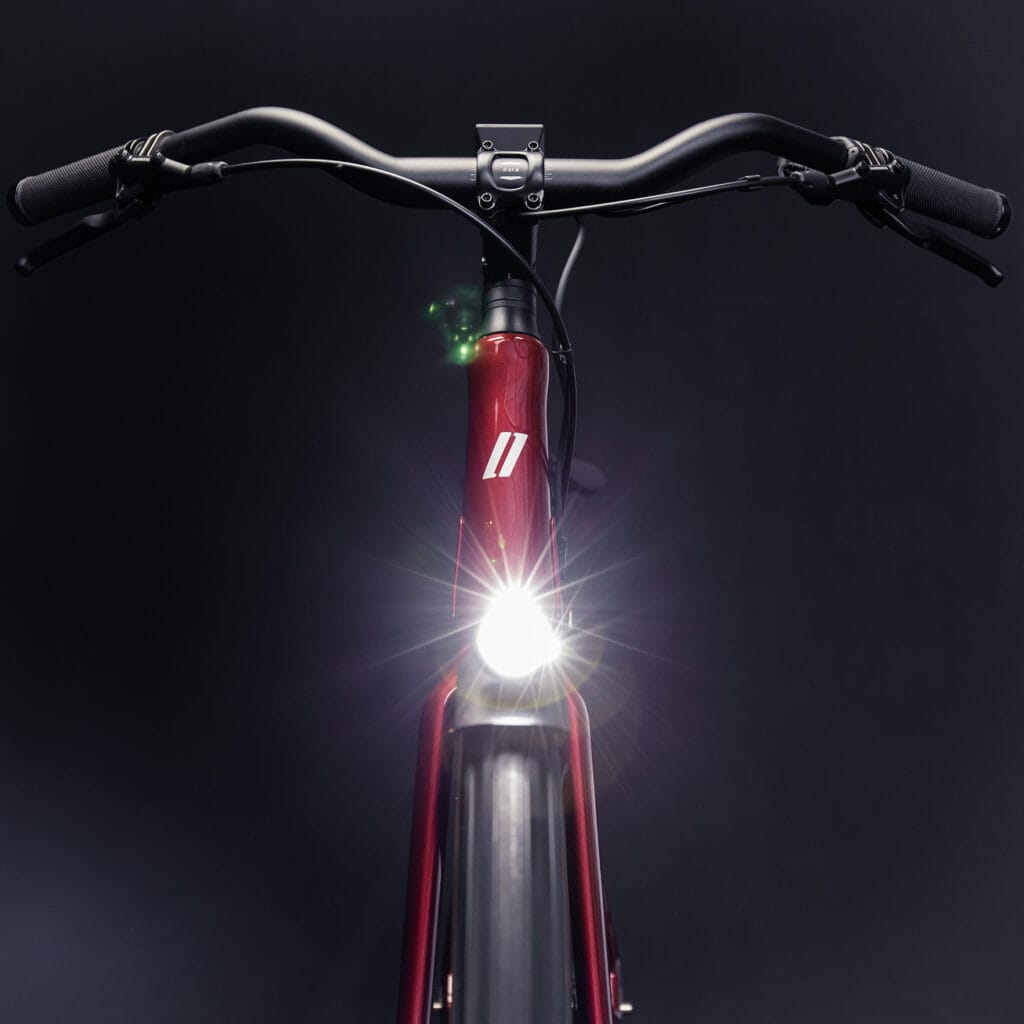

Lighting
Supernova – Mini 2 front light, E3 tail light
Frame

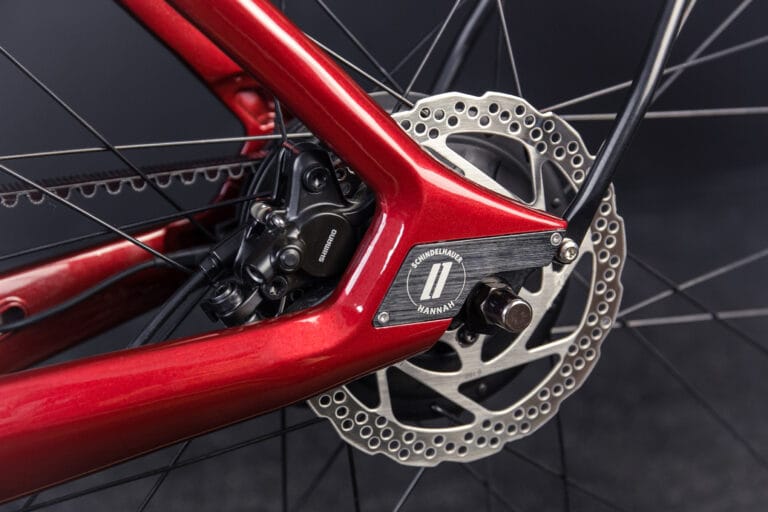

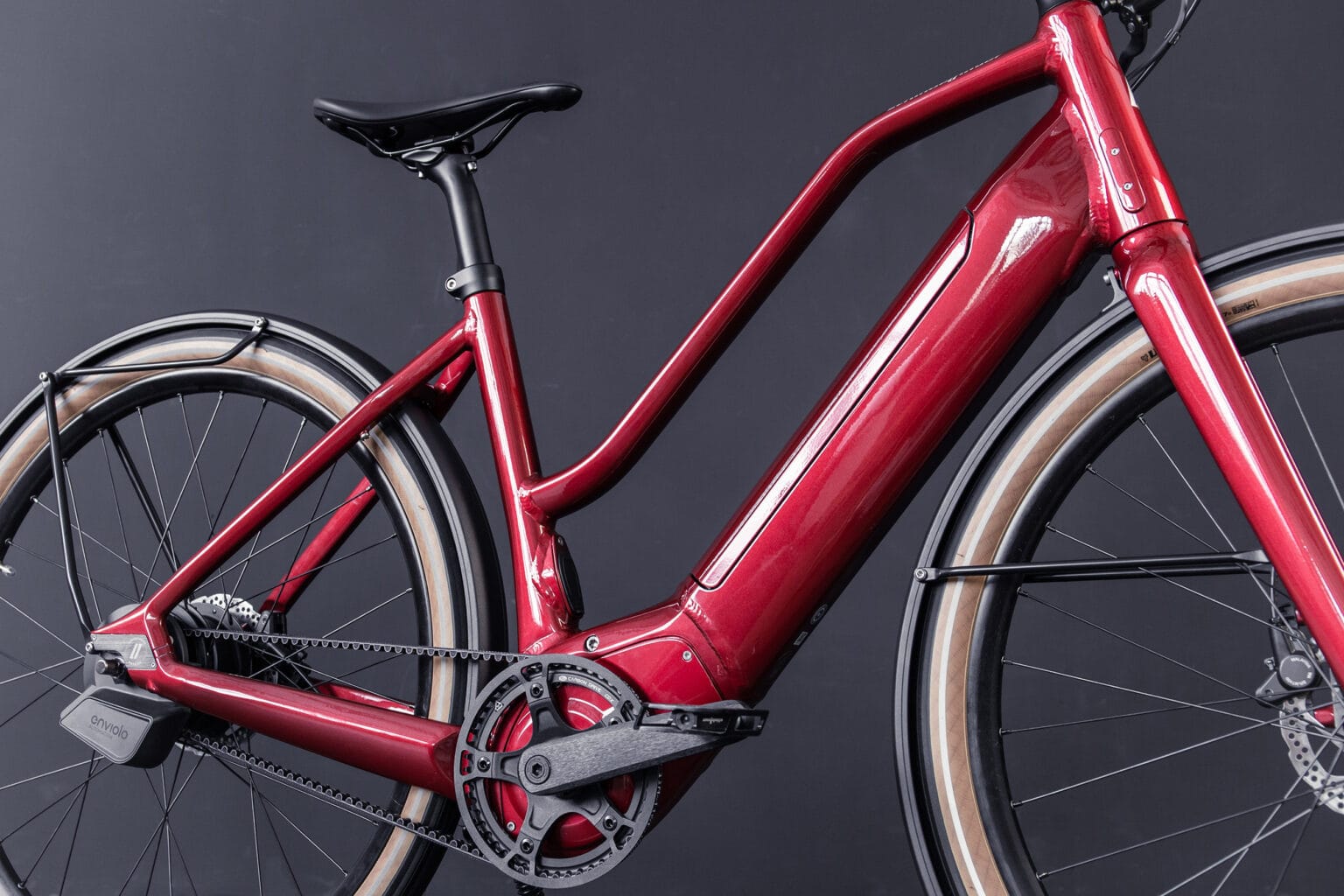

Aluminium (AL6061-T6), triple butted tubing , forged motor bracket, multi-cell down tube, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, integrated seat post clamp, internal cable routing, smooth welded

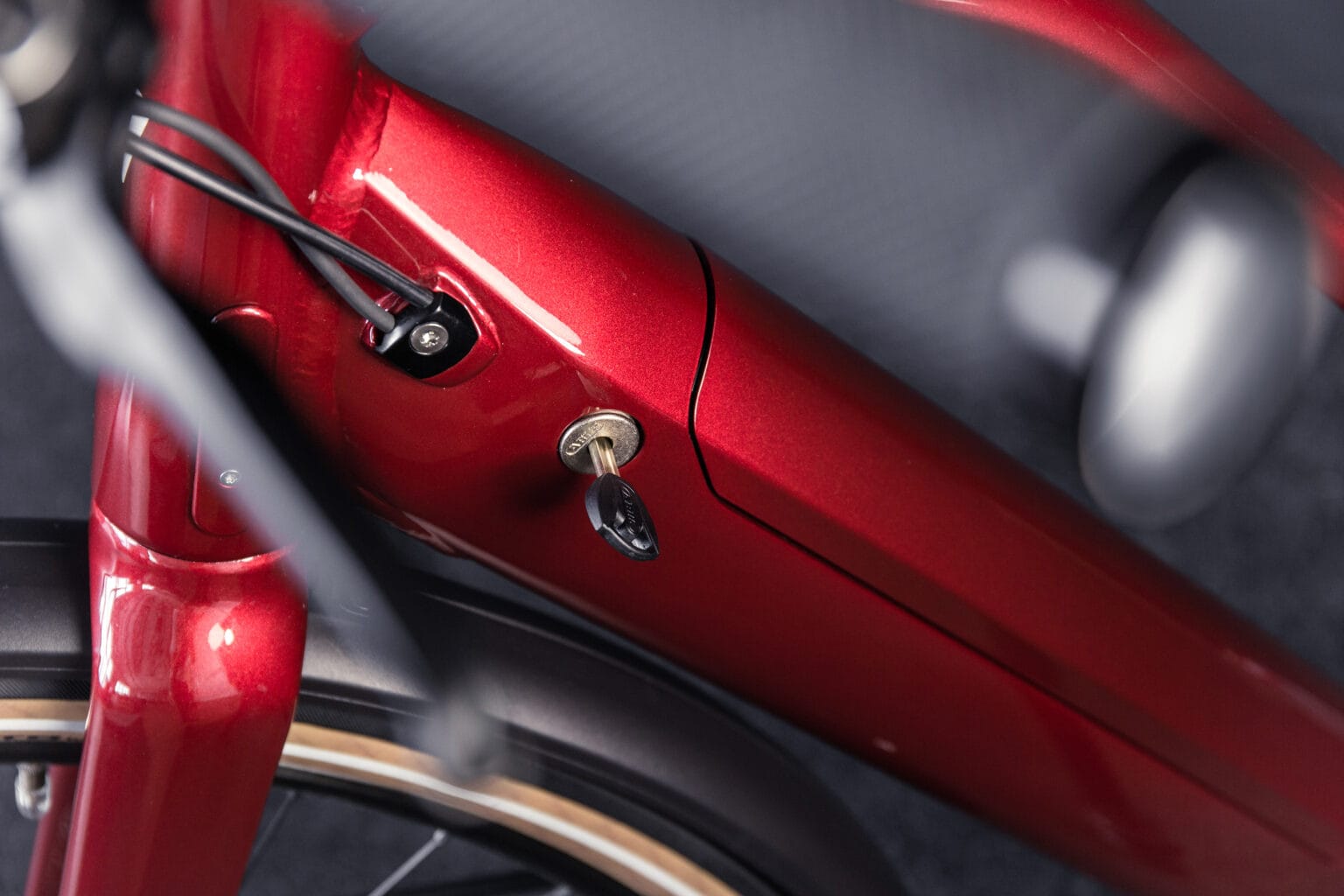

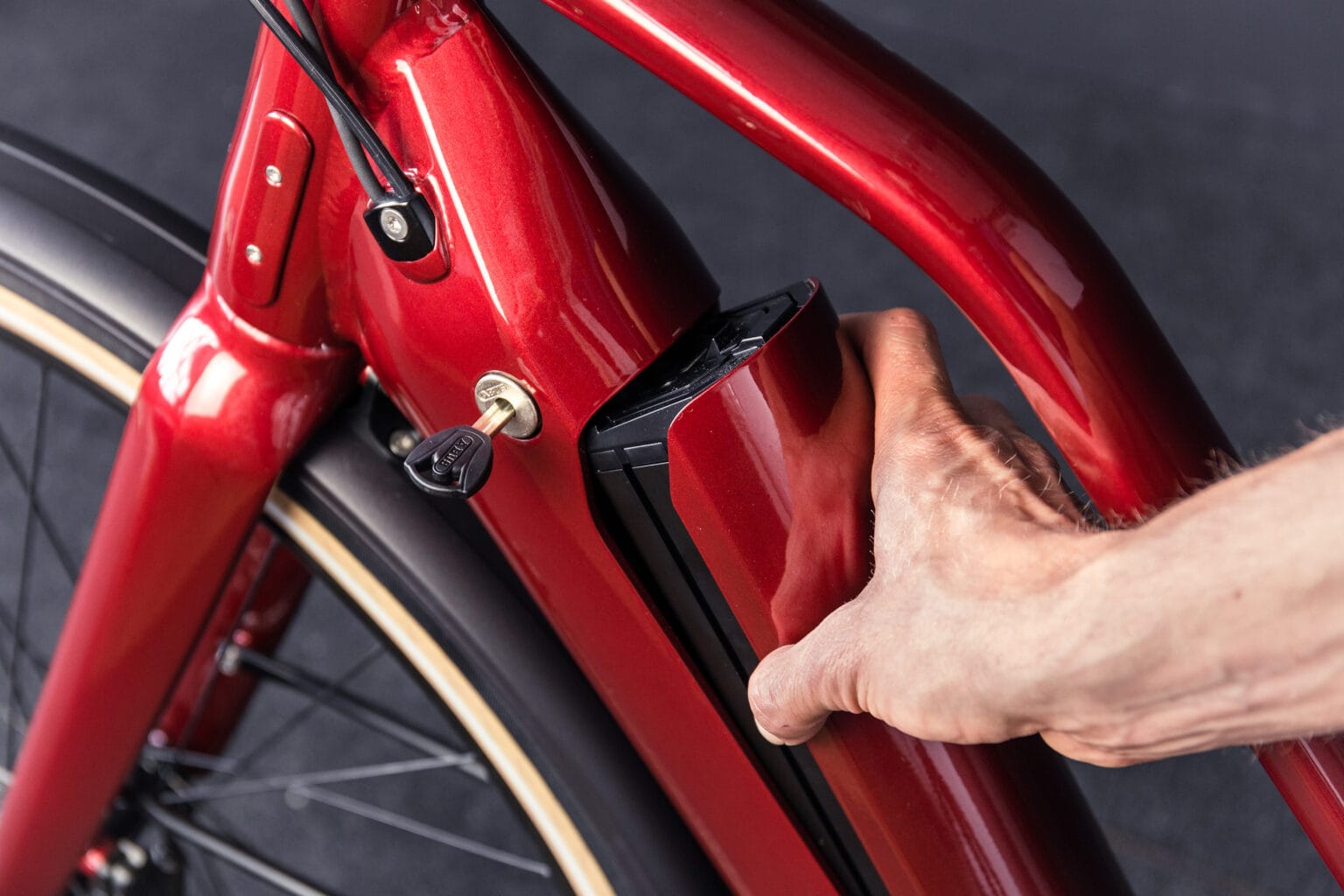

Battery
Bosch – Powertube 500, intube battery, energy: 500 Wh

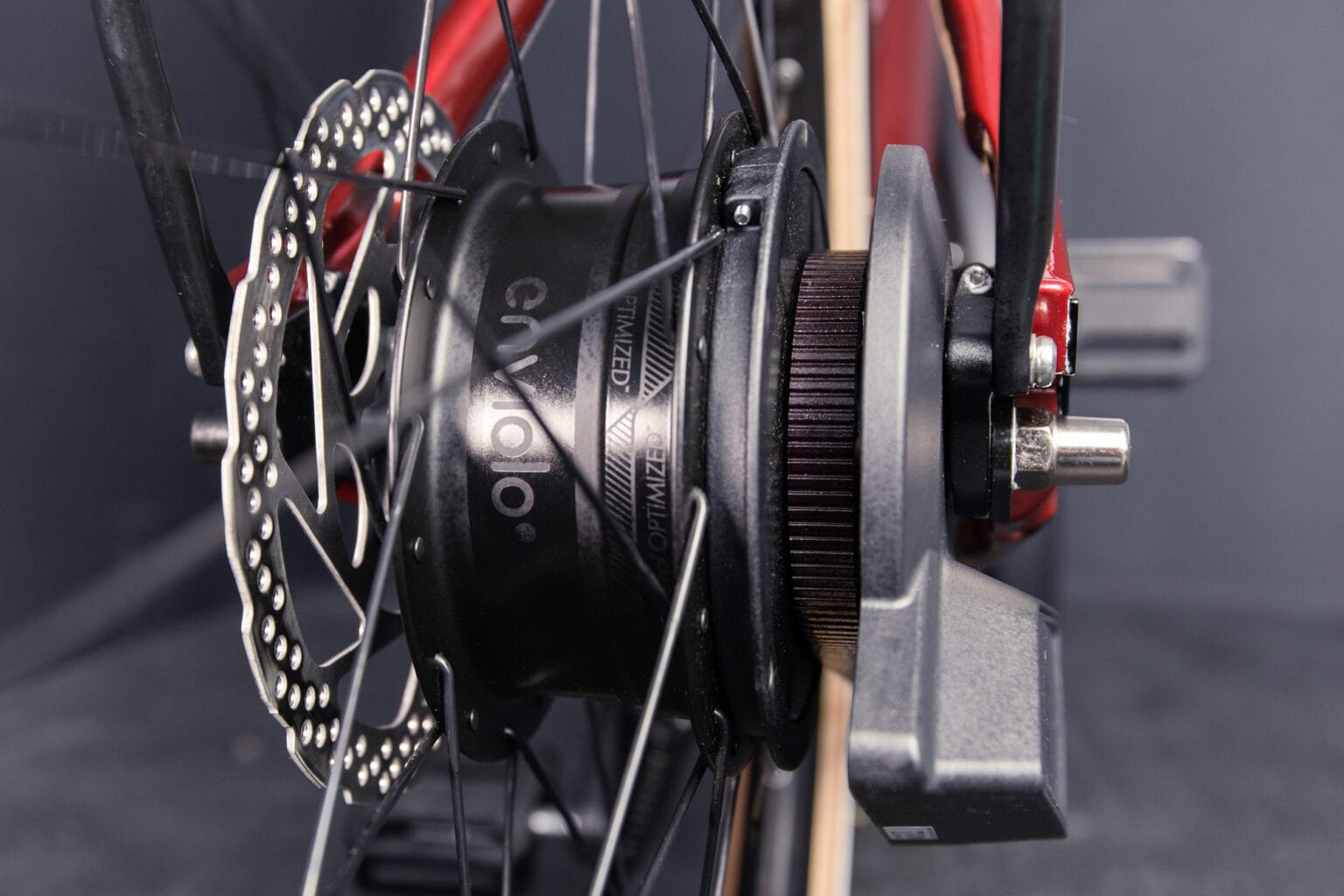

Gear shift
ENVIOLO TR (steples shifting) – AUTOMATiQ (eShift)
Crank set
Miranda – Delta

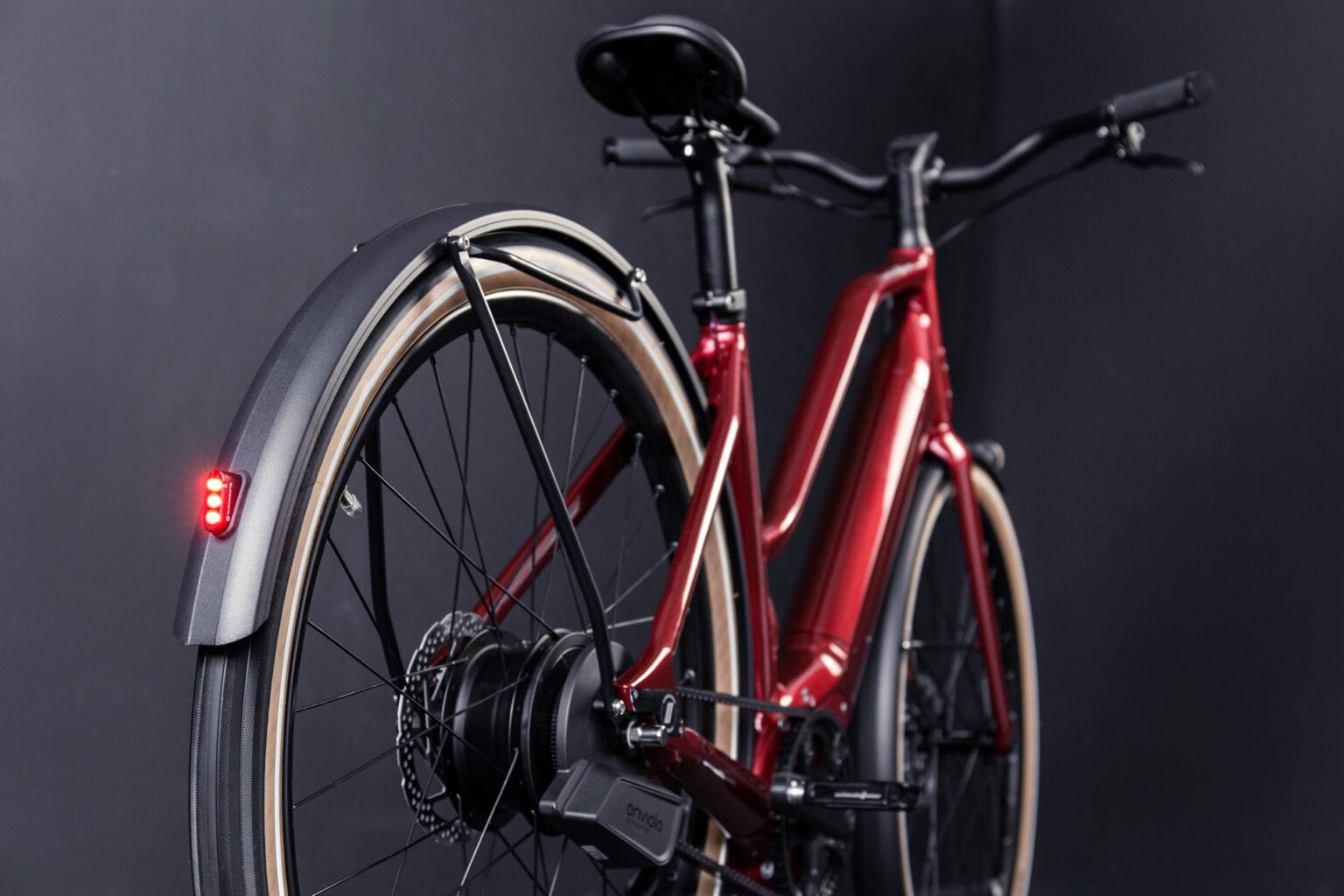

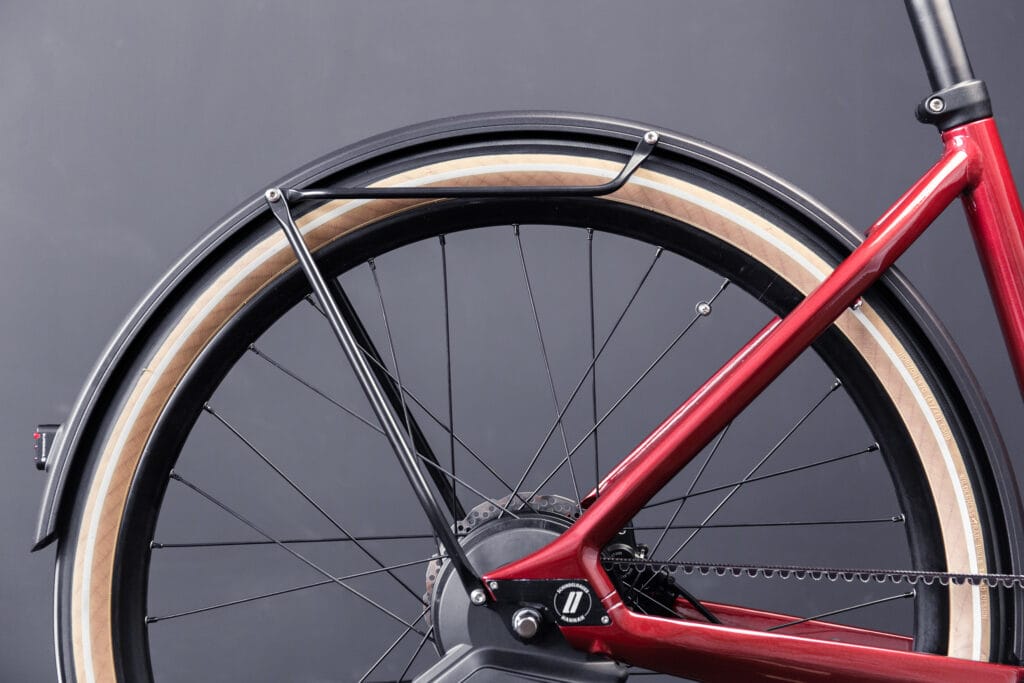

Pannier rack
Rear mudguard with integrated luggage stays
Motor

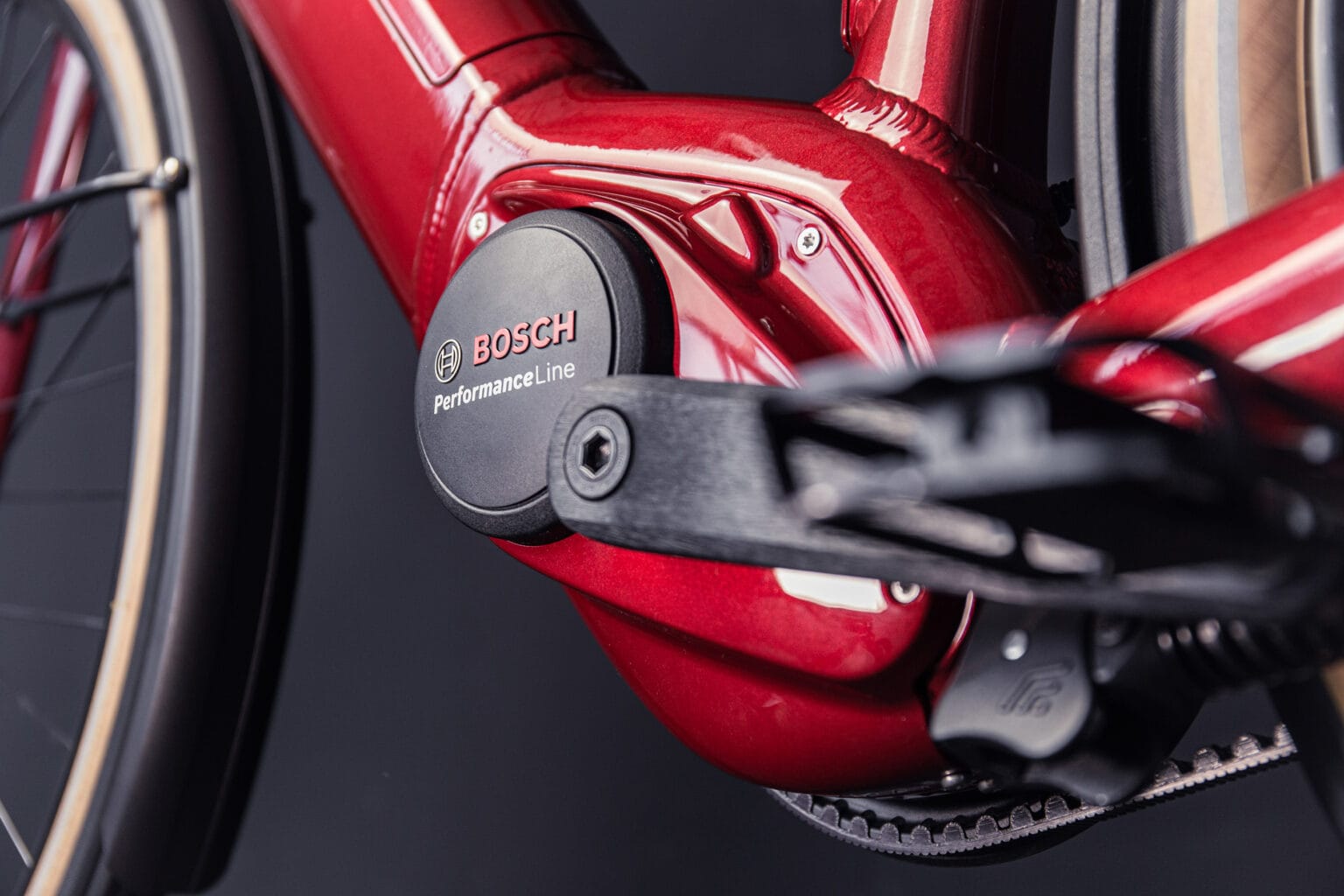

Bosch – Performance Line (Cruise), power: 250 W, torque: 65 Nm, max. support up to 25 km/h
Additional features
Hebie – side stand 663 FIX18 lock holster mounting possible frame lock mounting possible attaching a child seat onto the seat tube is possible installing a bicycle trailer onto the rear axle is possible but will require a hub hitch adapter. Please consult the trailer manufacturer or dealer for further information
Wheels
Schindelhauer – high flange front hub disc, ENVIOLO TR, Alexrims – EXR25 rims with eyelets, Sapim – Race spokes, 3-cross and 2-cross laced
Weight
24.7 kg (size M)
Pedals
Schindelhauer – Urban Pedal, aluminium, CNC machined
Seat post
Schindelhauer
Tyres
WTB – Horizon 47-584, with reflex stripes

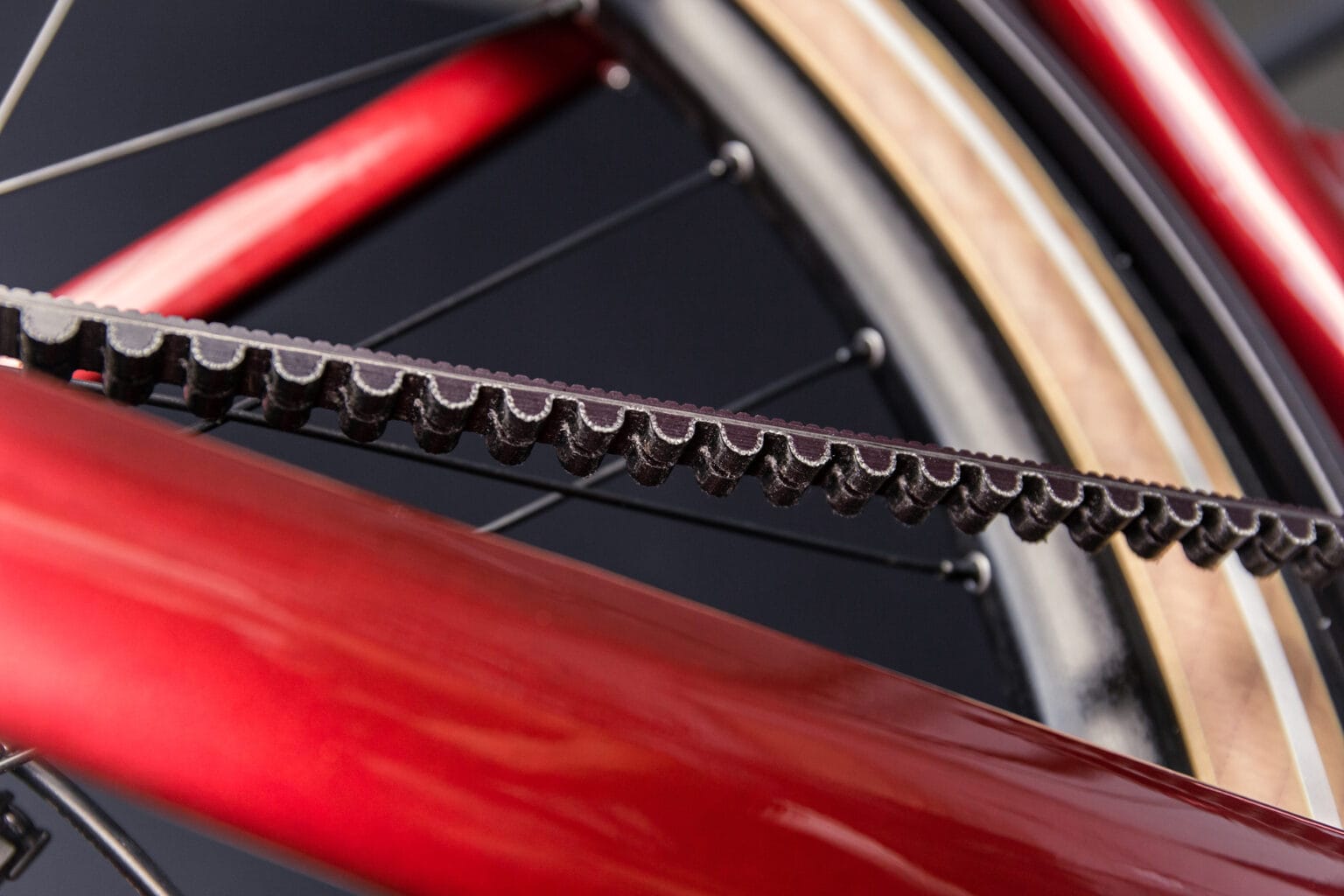

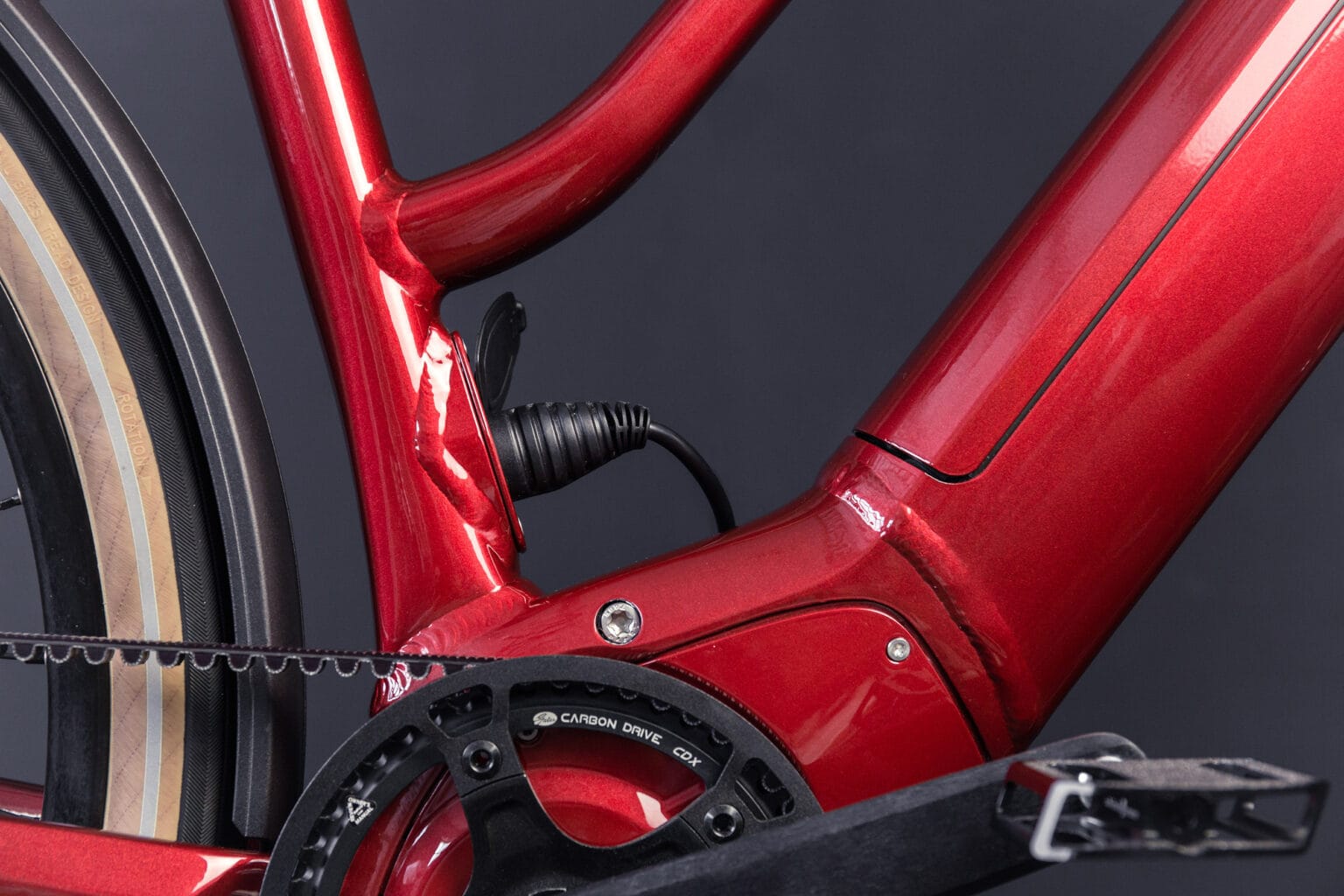

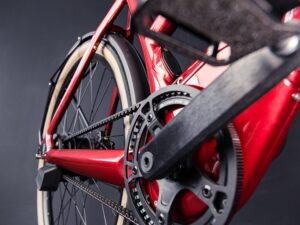

Power transmission

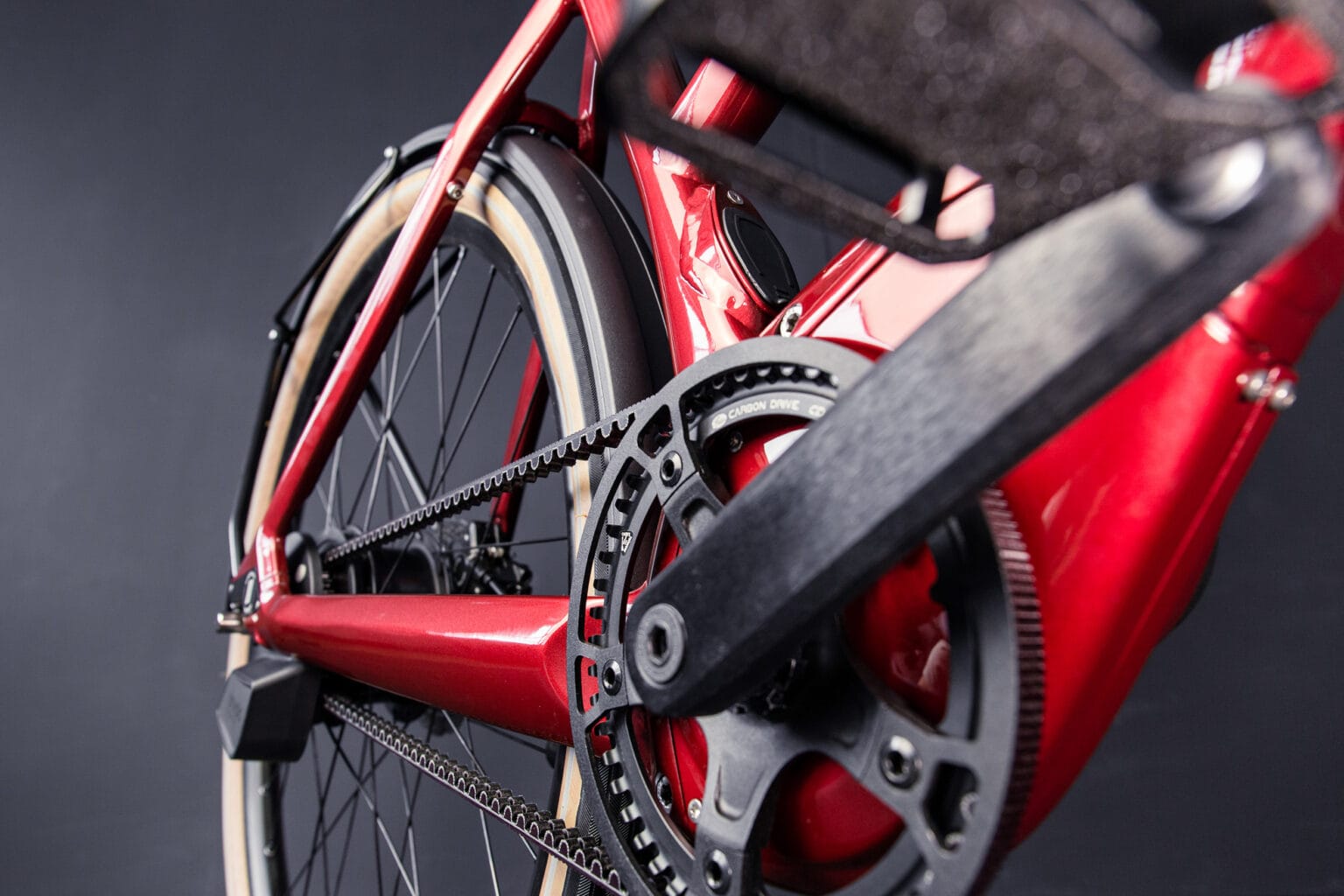

Gates Carbon Drive – CDX, front 50T, rear 22T, belt 118T
