Prisområde: kr 64999,00 til kr 69999,00

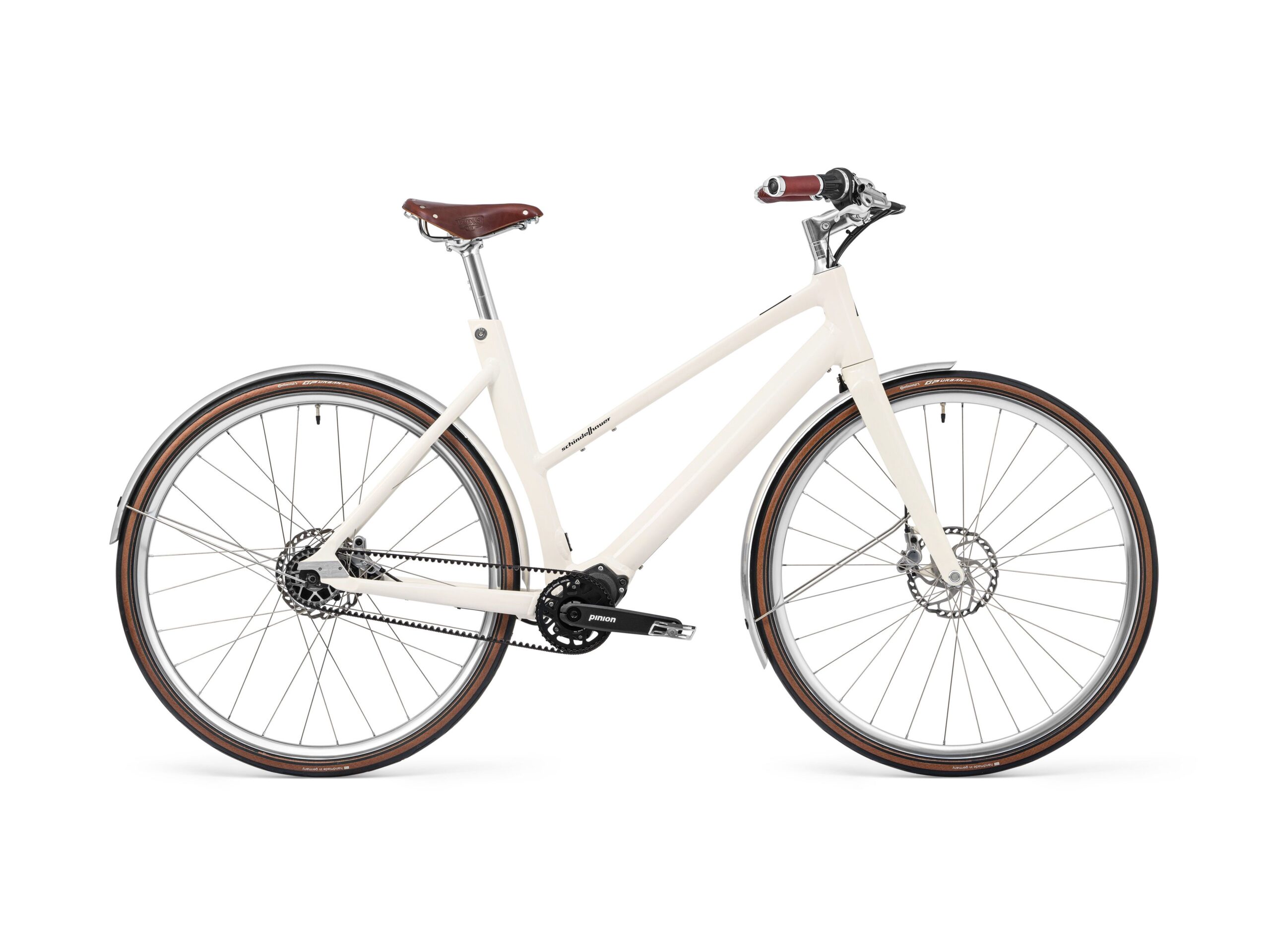

Antonia tar elektrifiseringen av den klassiske Schindelhauer-sykkelen til et nytt nivå. På sykkelen nyter du fullt utstyr med de beste teknologiene fra sykkelindustrien, som tilbyr en harmonisk sykkelopplevelse. Elektrisk assistanse i flere trinn, din muskelkraft og en avansert girkasse samhandler perfekt med hverandre.
Vekt 15.7 kg
På leverandørlager. Ta kontakt for levering
Frame Size | 48 (XS) | 52 (S) | 56 (M) |
|---|---|---|---|
| A size c-t (mm) | 480 | 520 | 560 |
| B top tube horiz. (mm) | 600 | 600 | 620 |
| C head tube (mm) | 165 | 165 | 180 |
| D chain stay (mm) | 449 | 449 | 449 |
| E head tube angle (°) | 72,5 | 72,5 | 72,5 |
| F seat tube angle (°) | 73 | 73 | 73 |
| G wheelbase (mm) | 1081 | 1081 | 1101 |
| H standover height (mm) | 670 | 670 | 760 |
| I Reach | 429 | 429 | 445 |
| J Stack | 576 | 576 | 590 |
| headset | 1 1/8 – 1,5 | 1 1/8 – 1,5 | 1 1/8 – 1,5 |
| seatpost size (mm) | 31,6 | 31,6 | 31,6 |
grips
Schindelhauer – ergo leather grips
fork
Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes
display
Mahle X20 – Head Unit in top tube, with Bluetooth und ANT+
headset
Acros – ICR 1,5”
seatpost
LightSKIN – seat post integrated LED-rear-light
saddle
Brooks – B17 S Lady (chrome rails)
brakes
Shimano – Alfine S7000 disc brake (hydraulic), 160mm
stem
Satori – Stealth, aluminium
mudguards
Curana – Clite
handlebar
LightSKIN CITY – handlebar integrated LED-front-light
lighting
LightSKIN – handlebar integrated LED-front-light, seat post integrated LED-rear-light
frame
Aluminium (AL6061-T6), triple butted aero tubing, forged bottom bracket shell, forged dropouts with slider belt tensioning system and Schindelhauer – belt port, integrated motor connection, integrated seat post clamp, smooth welded, internal cable routing
battery
Mahle X20 – Intube Akku 250 Wh capacity
gear shift
Pinion C-Line gear box 9-speed (XR)
crank set
Pinion
pannier rack
rear pannier rack mounting possible
bottom bracket
Pinion
motor
Mahle X20 – Hub Drive, 250 W Power, 55 Nm, 12 mm ThroughAxle
additional features
Side stand mounting possible mounting of bottle cage or lock possible
wheels
Schindelhauer – straight-pull front hub disc, Mahle – X20 motor, Kinlin – TL23R, Sapim – Race spokes, 3-cross and 2-cross laced
weight15.9 kg (size M)
pedals
Schindelhauer – Urban Pedal, aluminium, CNC machined
tyres
Continental – GP Urban Classic 35-622
power transmission
Gates Carbon Drive CDX, front 39T, rear 28T, belt 115T

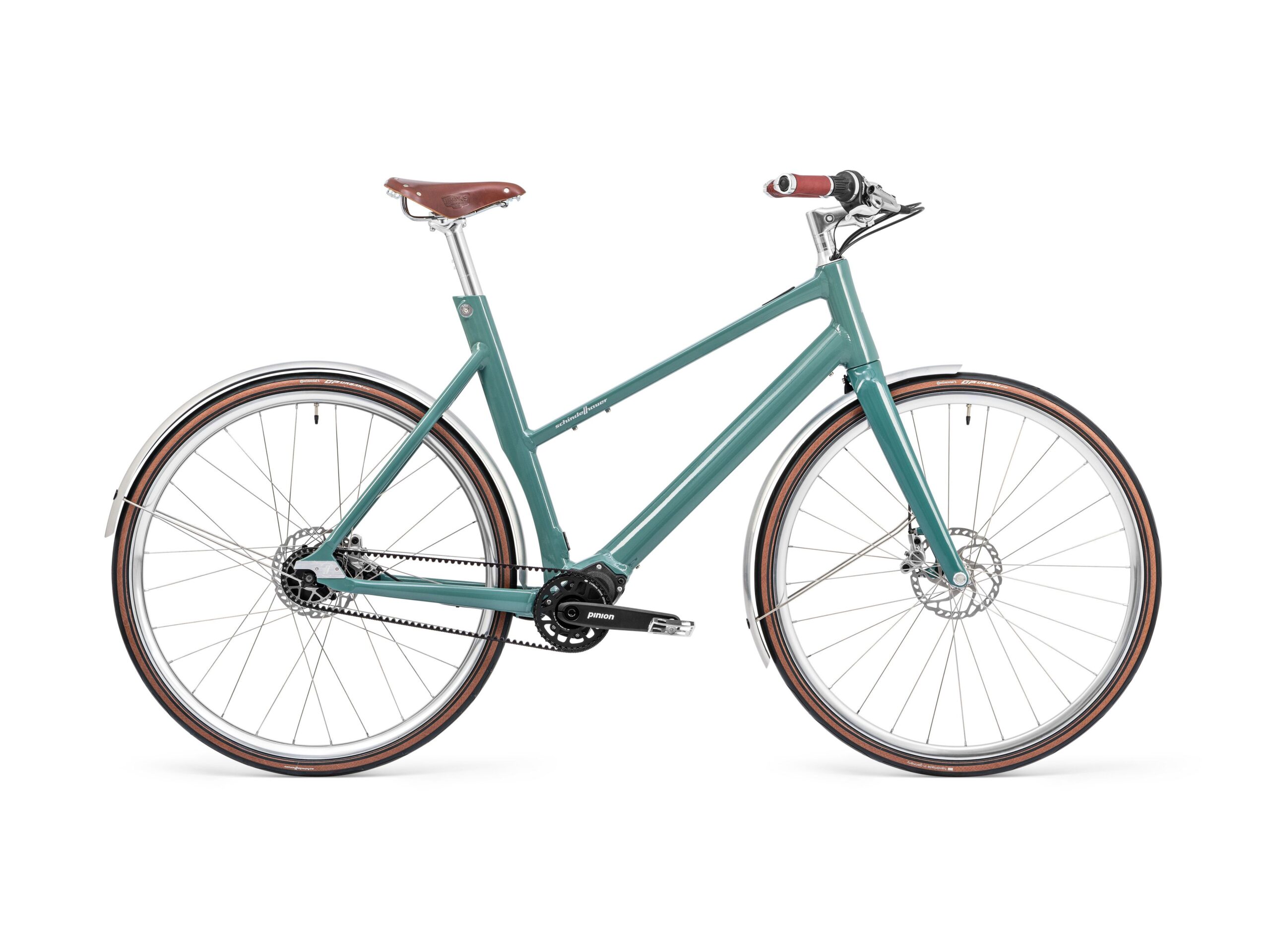

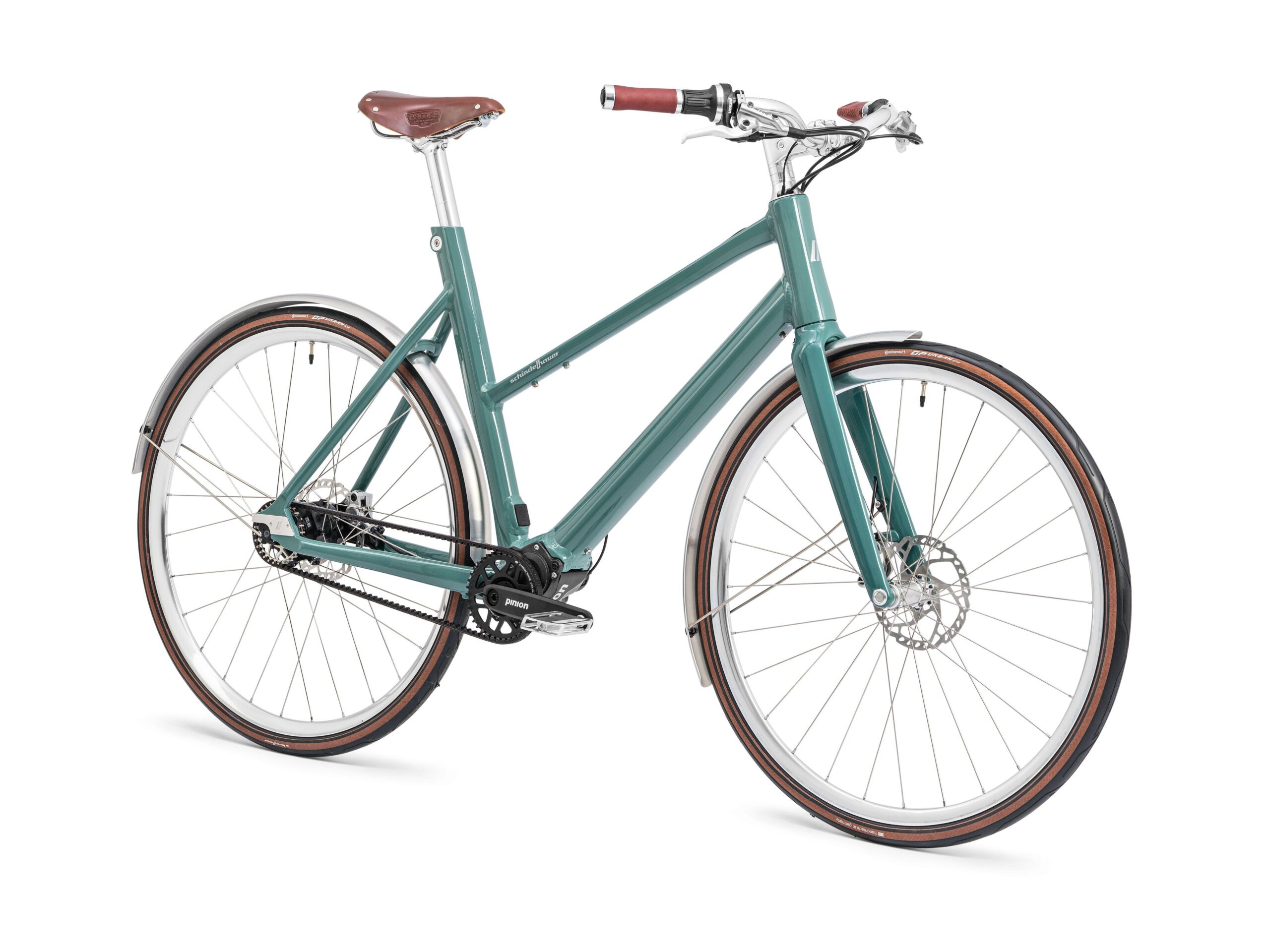

| Farge | Cream White, Sage Green |
|---|---|
| Motor | Mahle X20 |
| Girsystem | Pinion 6-speed, Pinion 9-speed |
| Størrelse | XS(48), S(52), M(56) |
