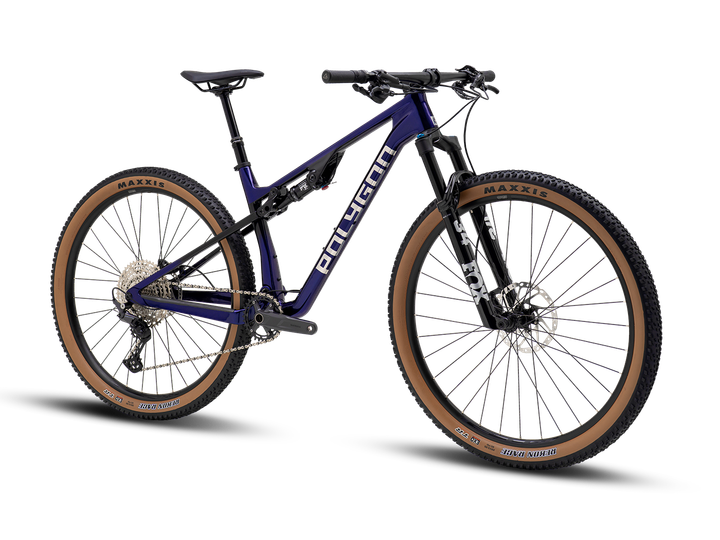

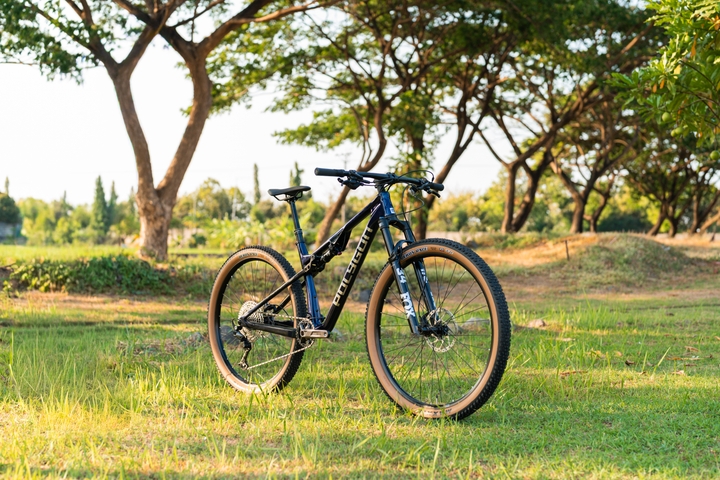

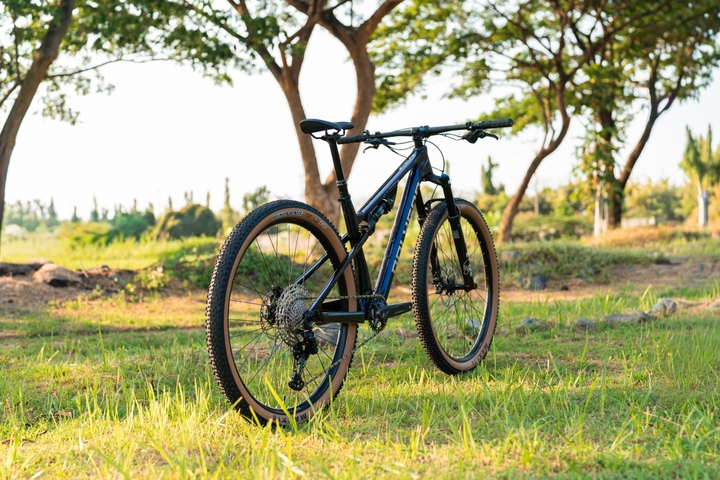

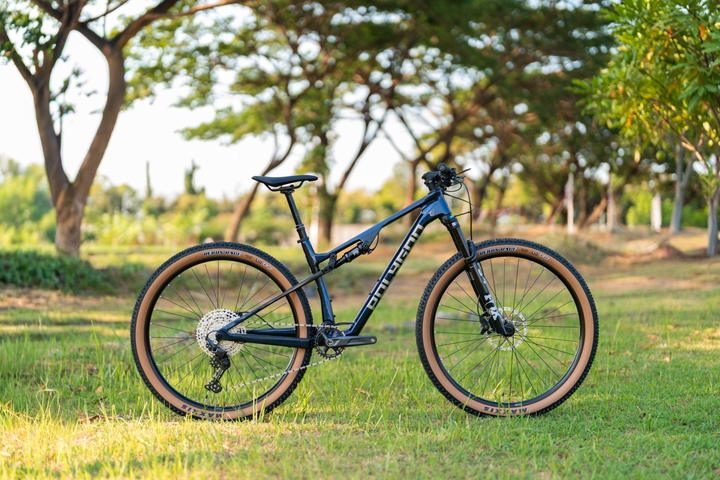

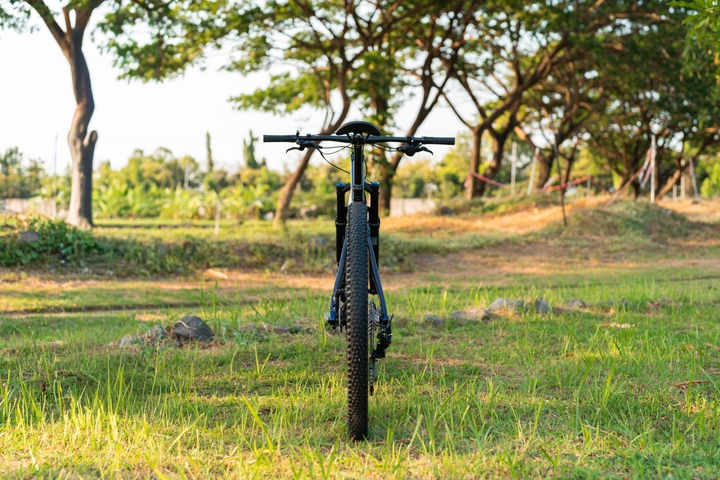

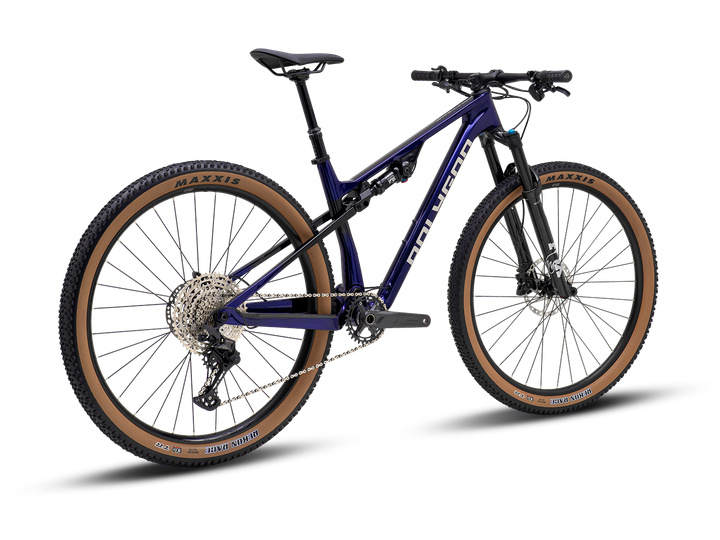

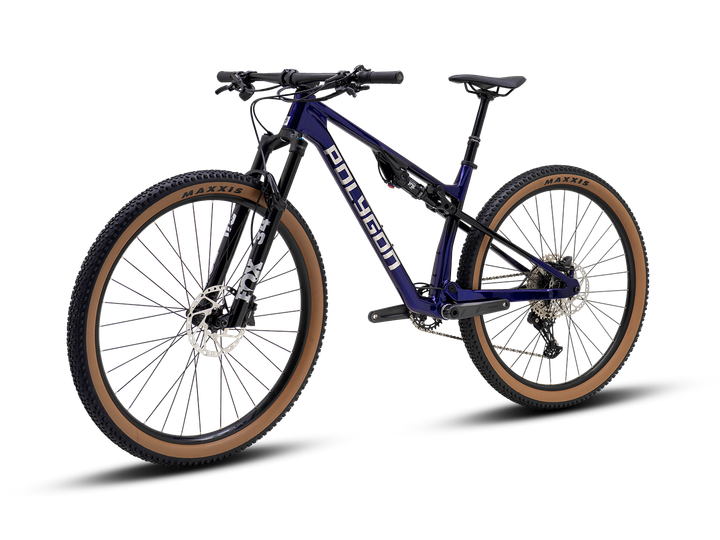

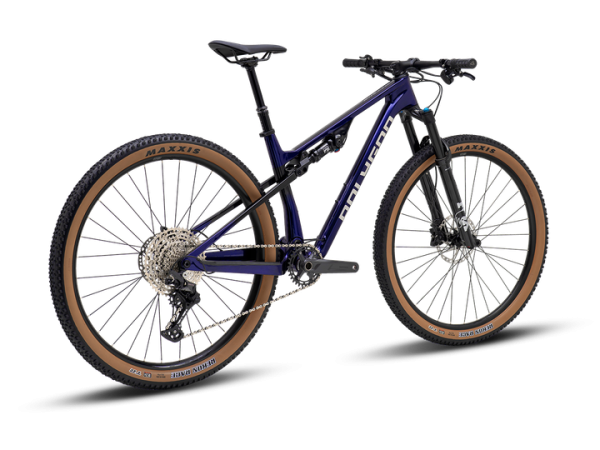

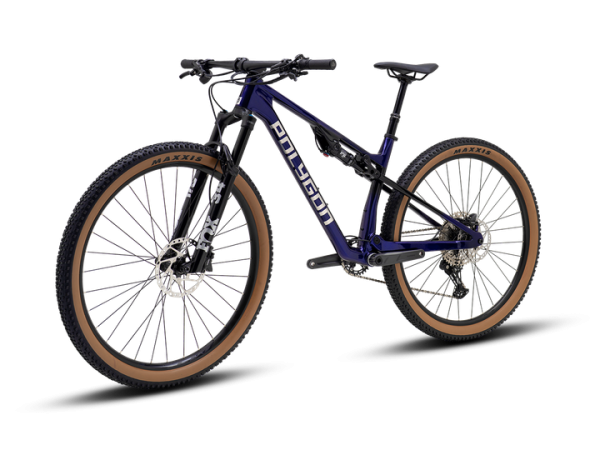

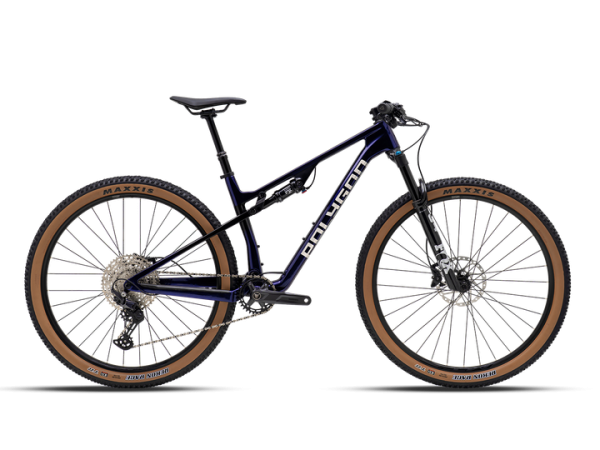

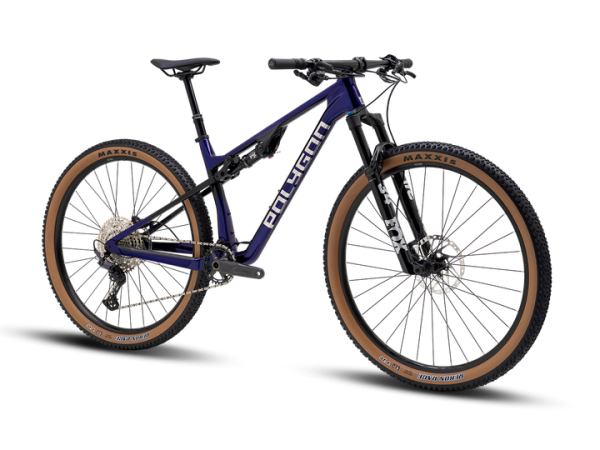

Polygon Syncline DR6

kr 35999,00

NYHET!

Fulldempet og med moderne geometri er nye Syncline DR serien klar for å takle dagens krevende XC løyper!

Fox SL Performance dempere 120/110mm
Deroe M6100 drivverk
Deore M6100 bremser
Polygon MT6 hjulsett
Vekt: 13,38kg

På leverandørlager. Ta kontakt for levering

Kategori: Fulldempet, SykkelMerke: Polygon

Geometri





























 SML
Height (cm)155-165165-175175-185185-195
Seat Tube Length (A)384432470510
Seat Tube Angle (B)74.7574.7574.7574.75
Effective Seat Tube Angle (C)71.271.271.271.2
Head Tube Length (D)95105115125
Head Tube Angle (E)67.567.567.567.5
Effective Top Tube (F)570599625653
Bb Height (G)334.5334.5334.5334.5
Bb Offset (H)38383838
Chainstay Length (I)440440440440
Wheelbase (J)1217.71188.911601131
Frame Reach (K)410435460485
Frame Stack (L)587601606615
Standover Height (M)725726725725

Spesifikasjoner



DR6

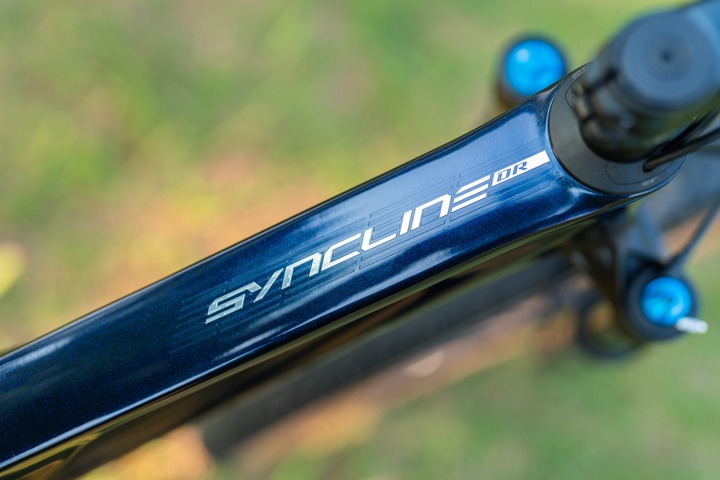

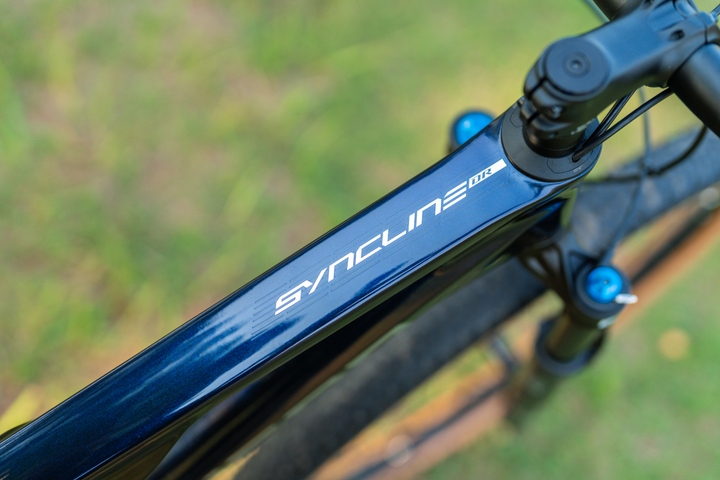

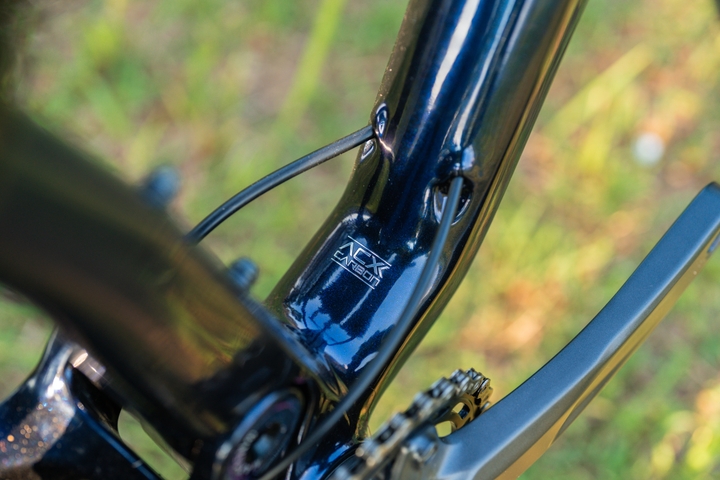

Ramme

ACX XC 110mm Travel

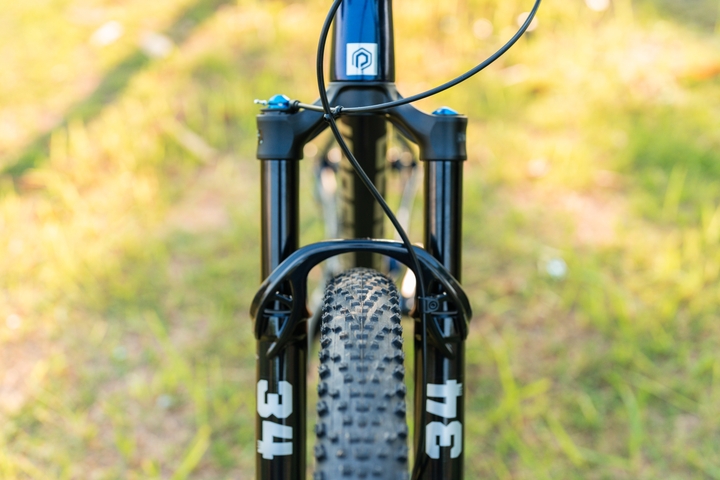

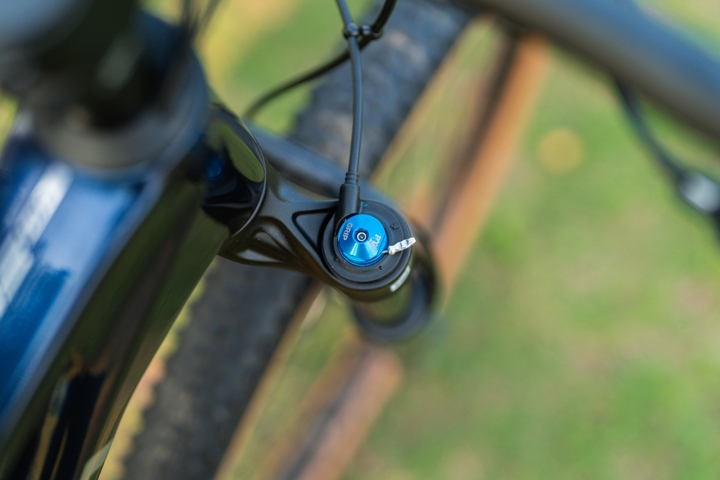

Gaffel

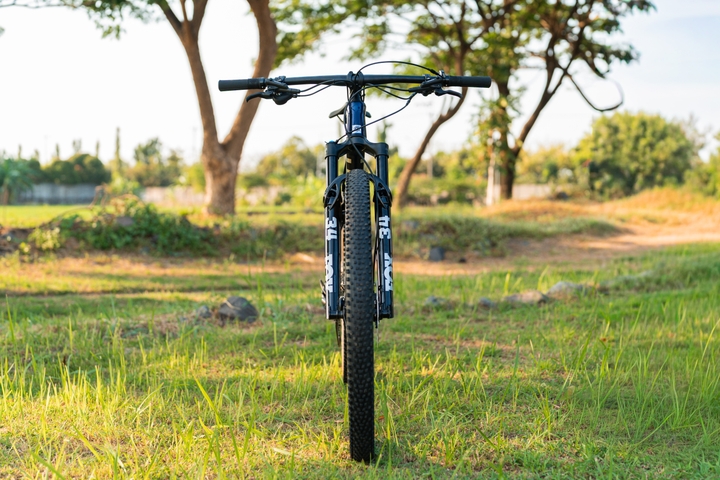

Fox 34 SL Performance 120mm

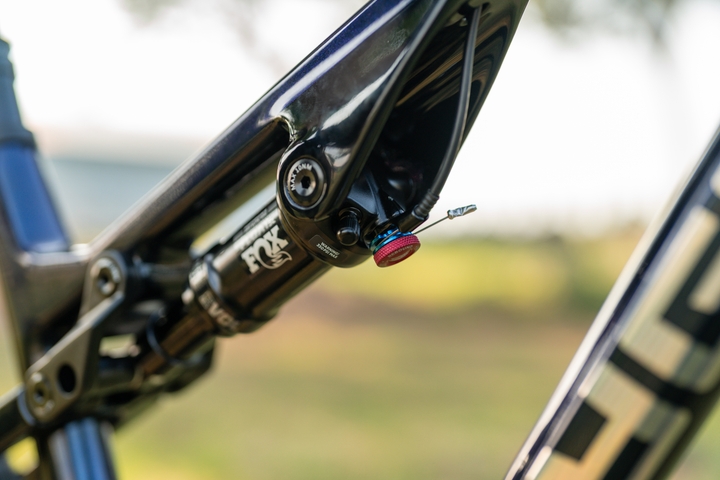

Demper

Fox Float SL Performance Elite 165x40mm

Salpinne

Tranz X JD-YSP23J 125mm 31.6mm

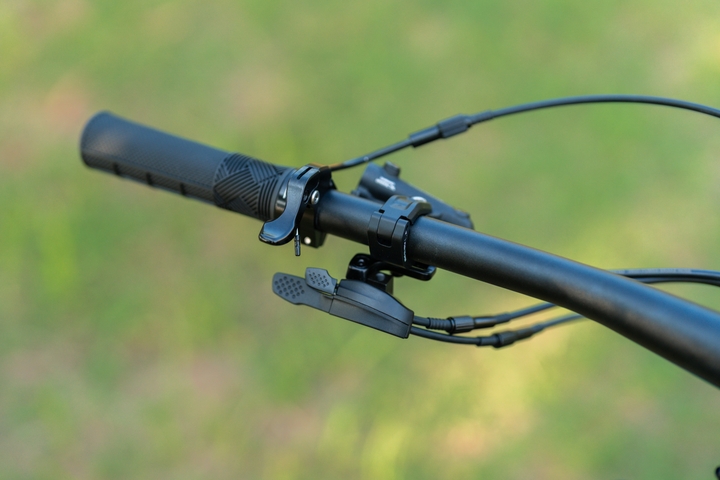

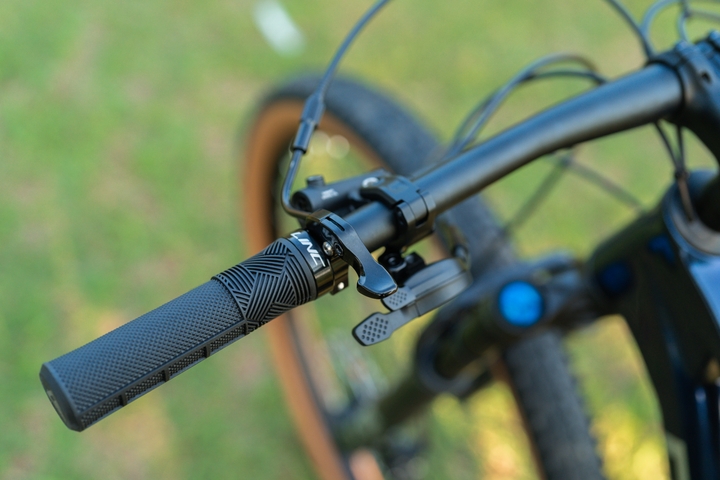

Girhendel

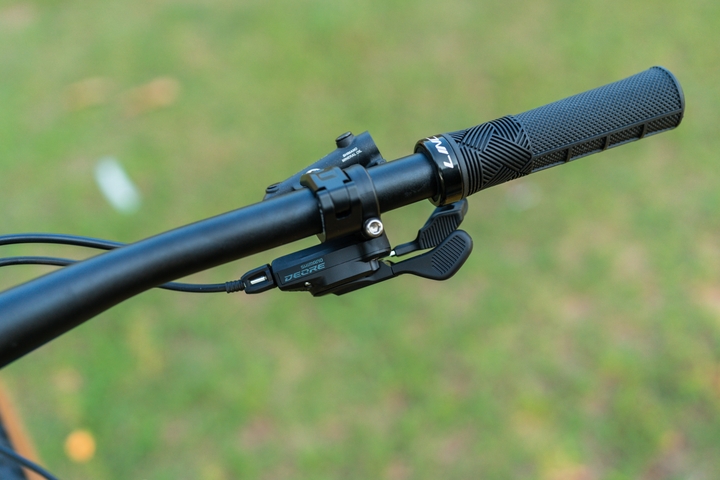

Shimano Deore M6100

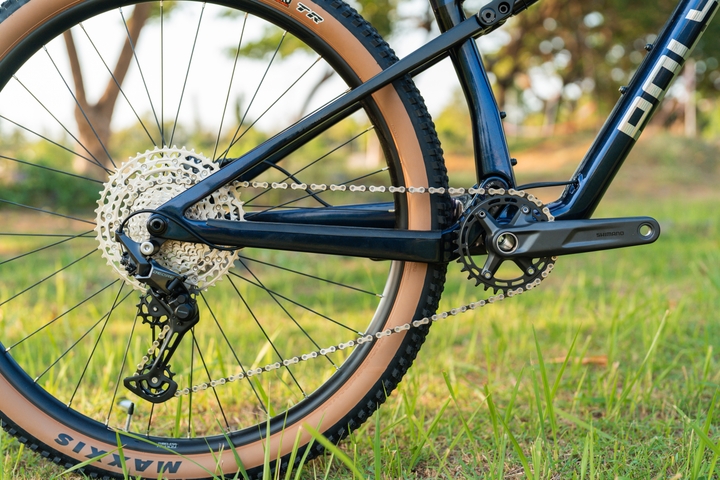

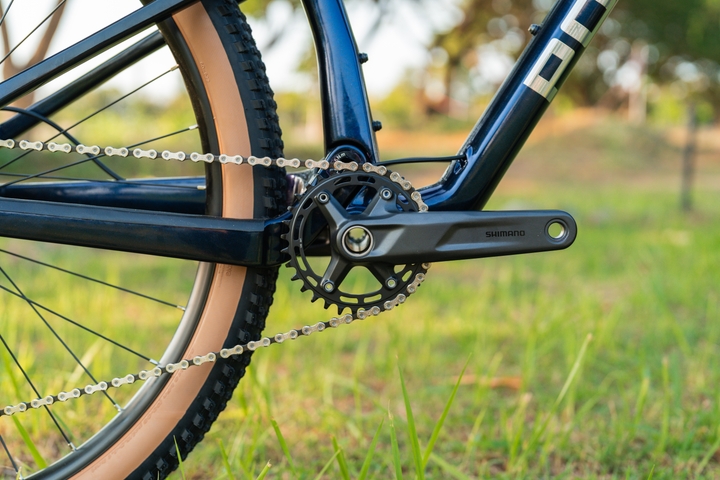

Kranksett

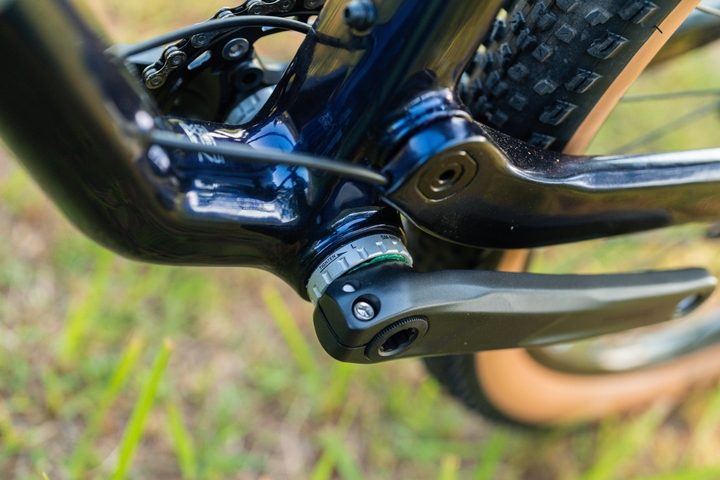

Shimano MT512, 32T

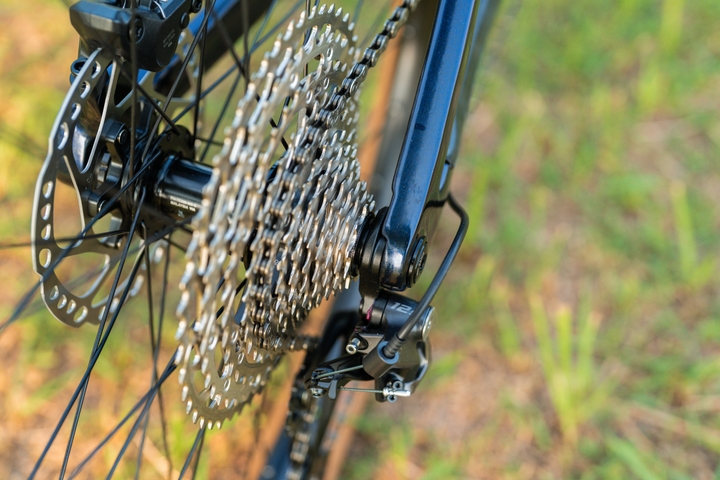

Kassett

Shimano Deore M6100, 10-51T

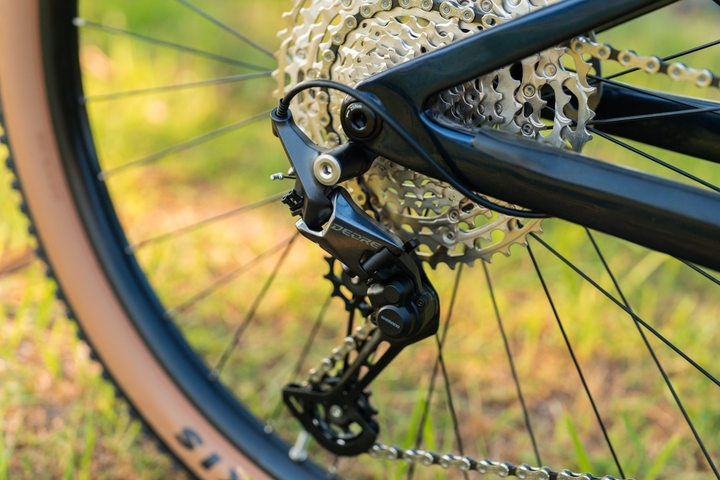

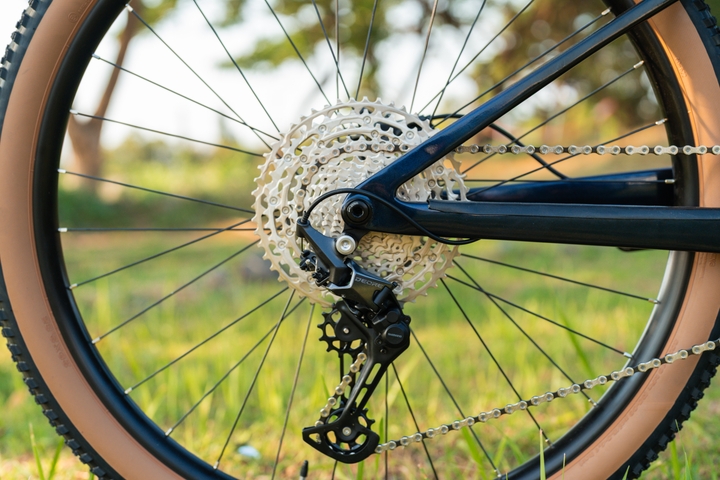

Bakgir

Shimano Deore M6100

Hjulsett

Polygon MT6

Dekk

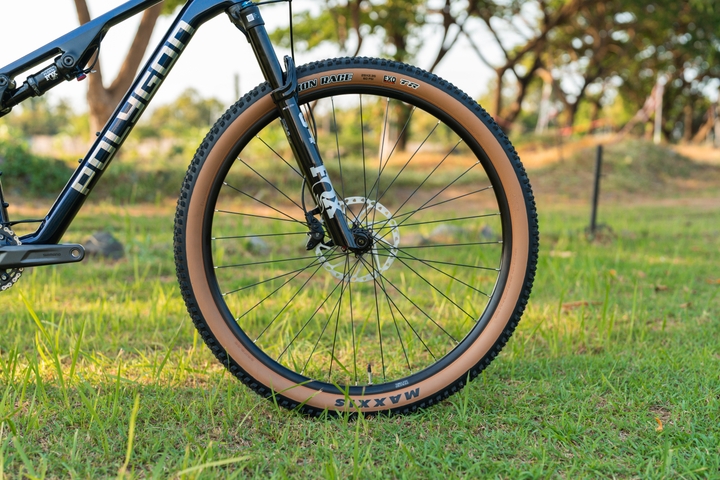

Maxxis Rekon Race 29″x2.35″

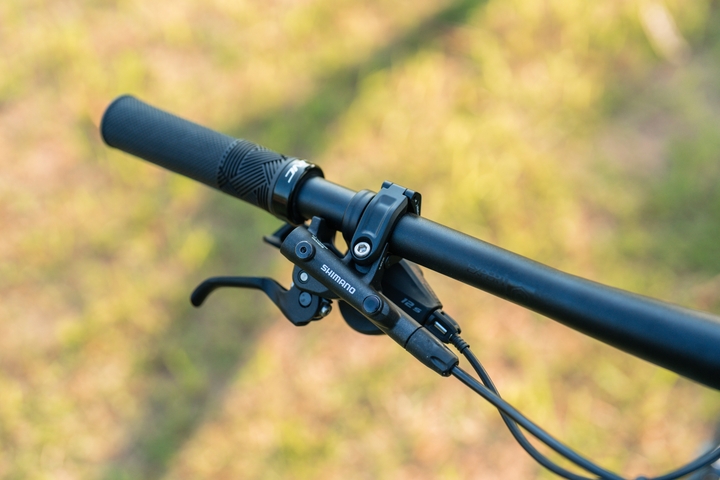

Bremser

Shimano Deore M6100

Rotor

Shimano RT64 R:160mm F:180mm

Sal

Fizik Terra Argo X7

Styre

Polygon Expert W:760mm D:31.8

Stem

Polygon Expert L:70mm D:31.6

Størrelse

S, M, L, XL

Farge

Blue
