Polygon Strattos S8X

kr 35999,00

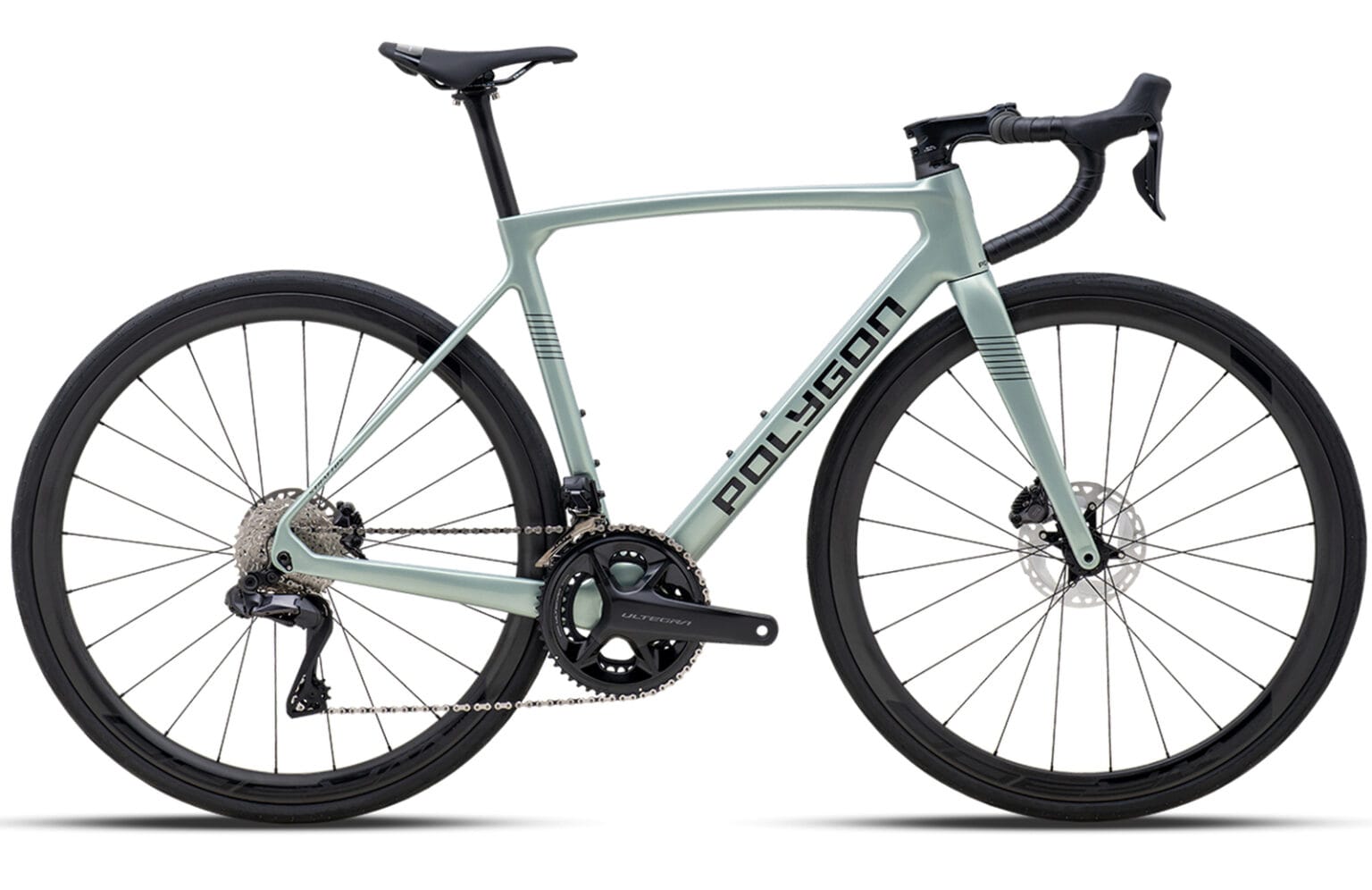

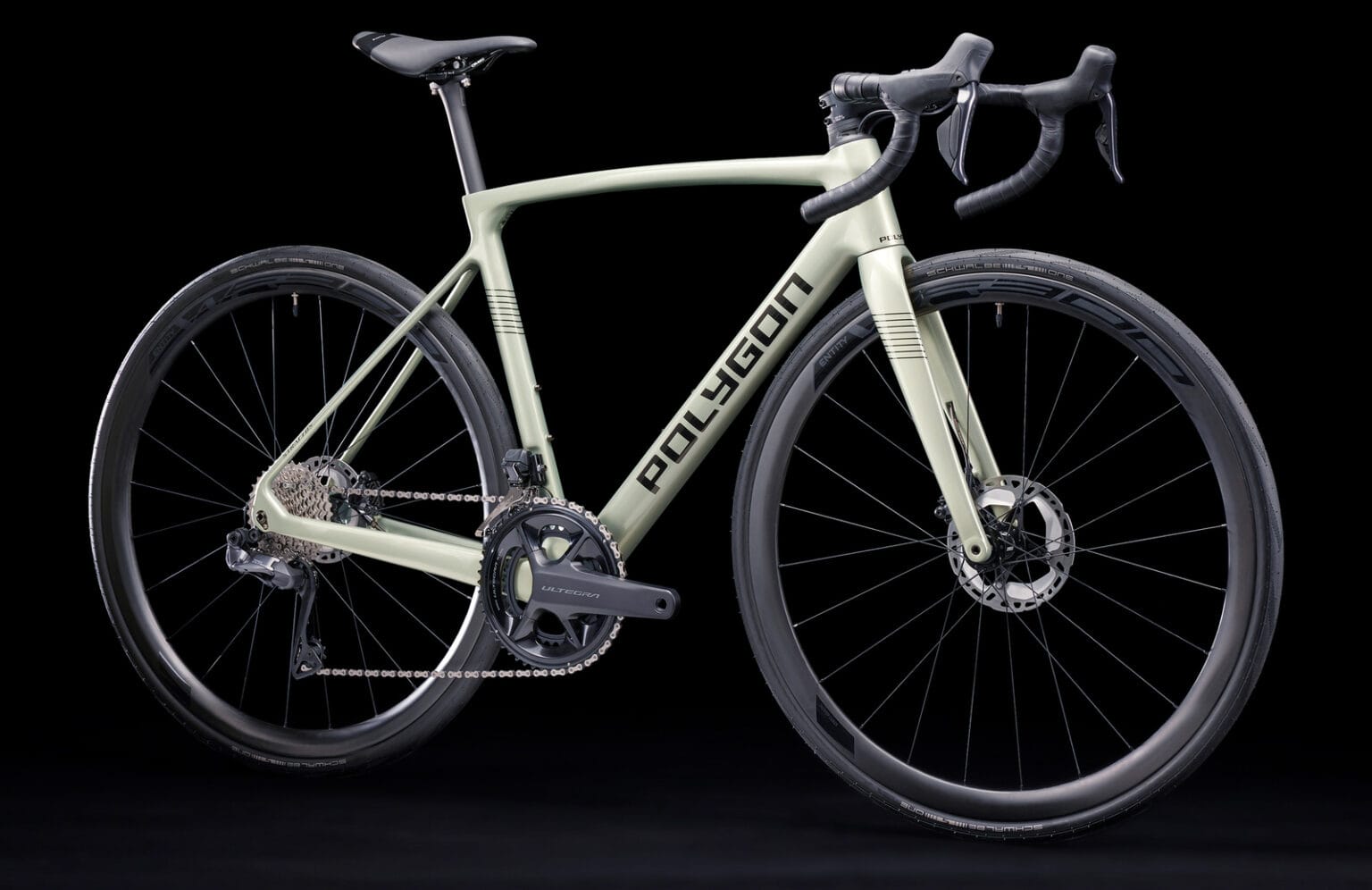

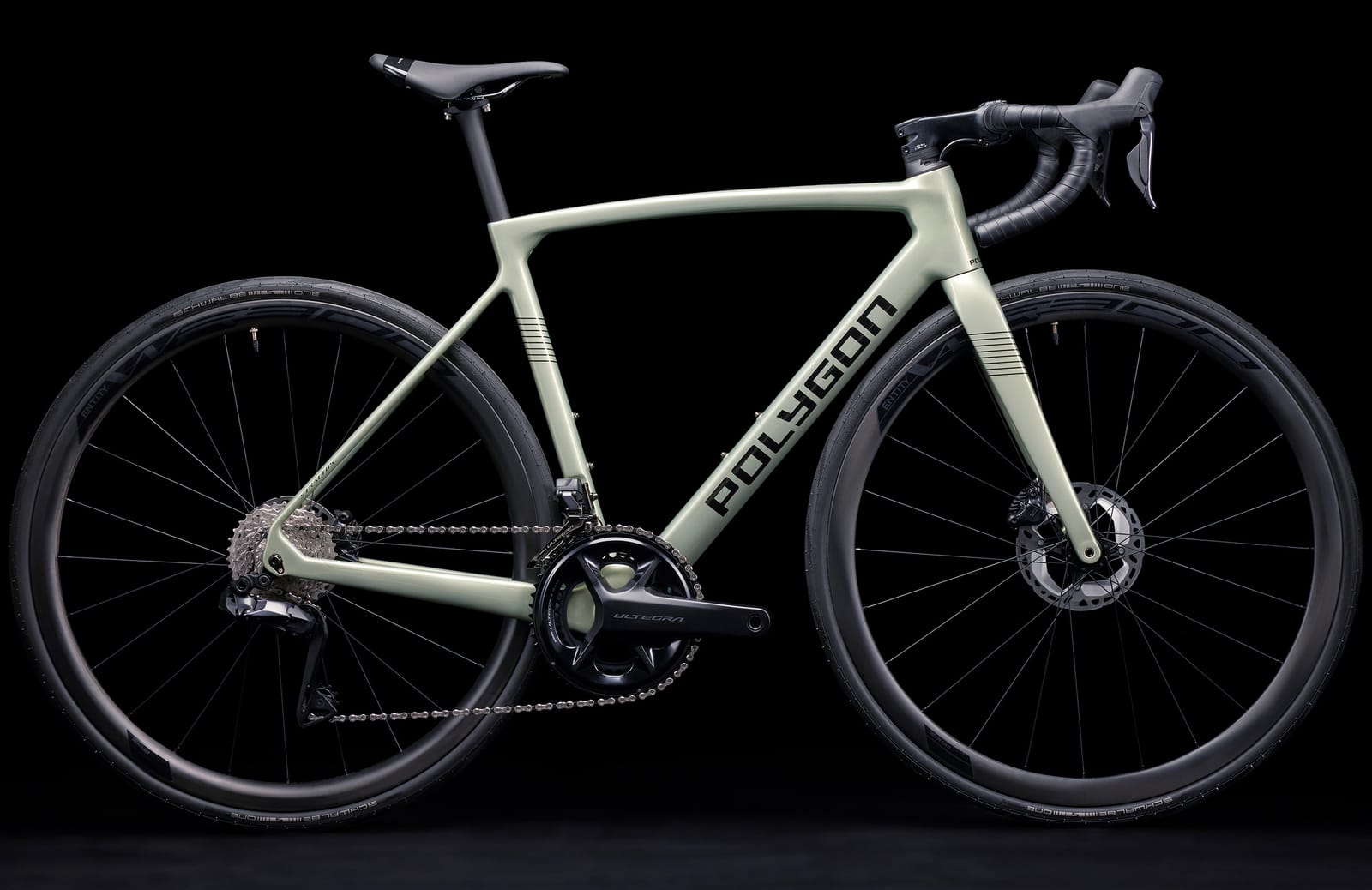

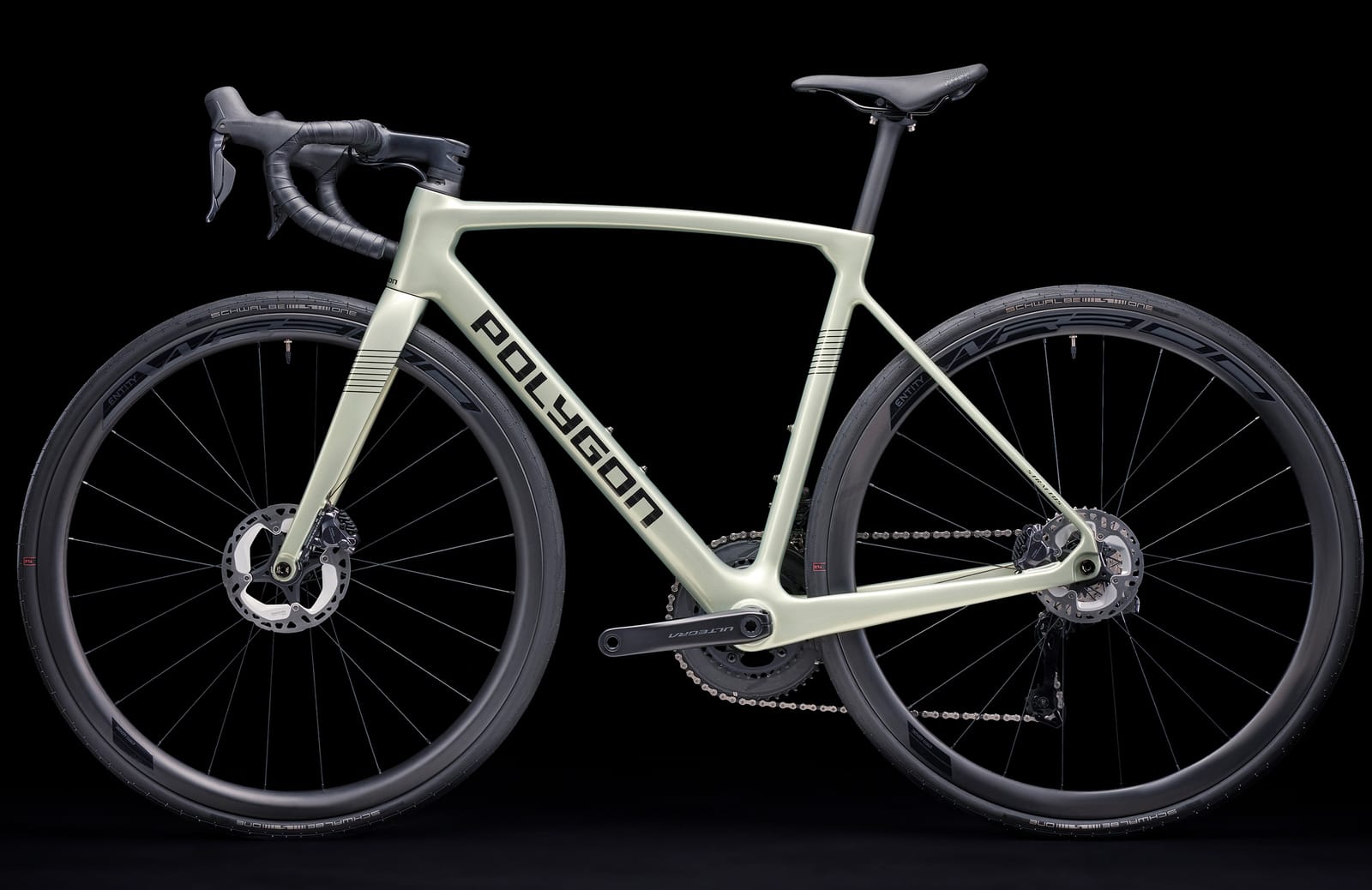

Polygon Strattos S8X er en landeveissykkel i karbon designet for lengre turer. Den er laget for å være komfortabel på lange turer, samtidig som den er aggressiv nok for rask og effektiv sykling. Sykkelen veier imponerende 8,21 kg. Shimano Ultegra Di2 elektronisk drivverk, Shimano Ultegra skivebremser og 30mm hjulsett.

På leverandørlager. Ta kontakt for levering

Spesifikasjoner

RammeACX All-Round UCI Approved, Internally Routed, Pressfit BB86, 12X142Mm
GaffelFull Carbon, Taper 1-1/8″ To 1-1/2″, Flat Mount Disc Brake
SalpinneEntity Xpert Alloy
GirhendelShimano Ultegra Di2 ST-R8170, 2×12-Speed

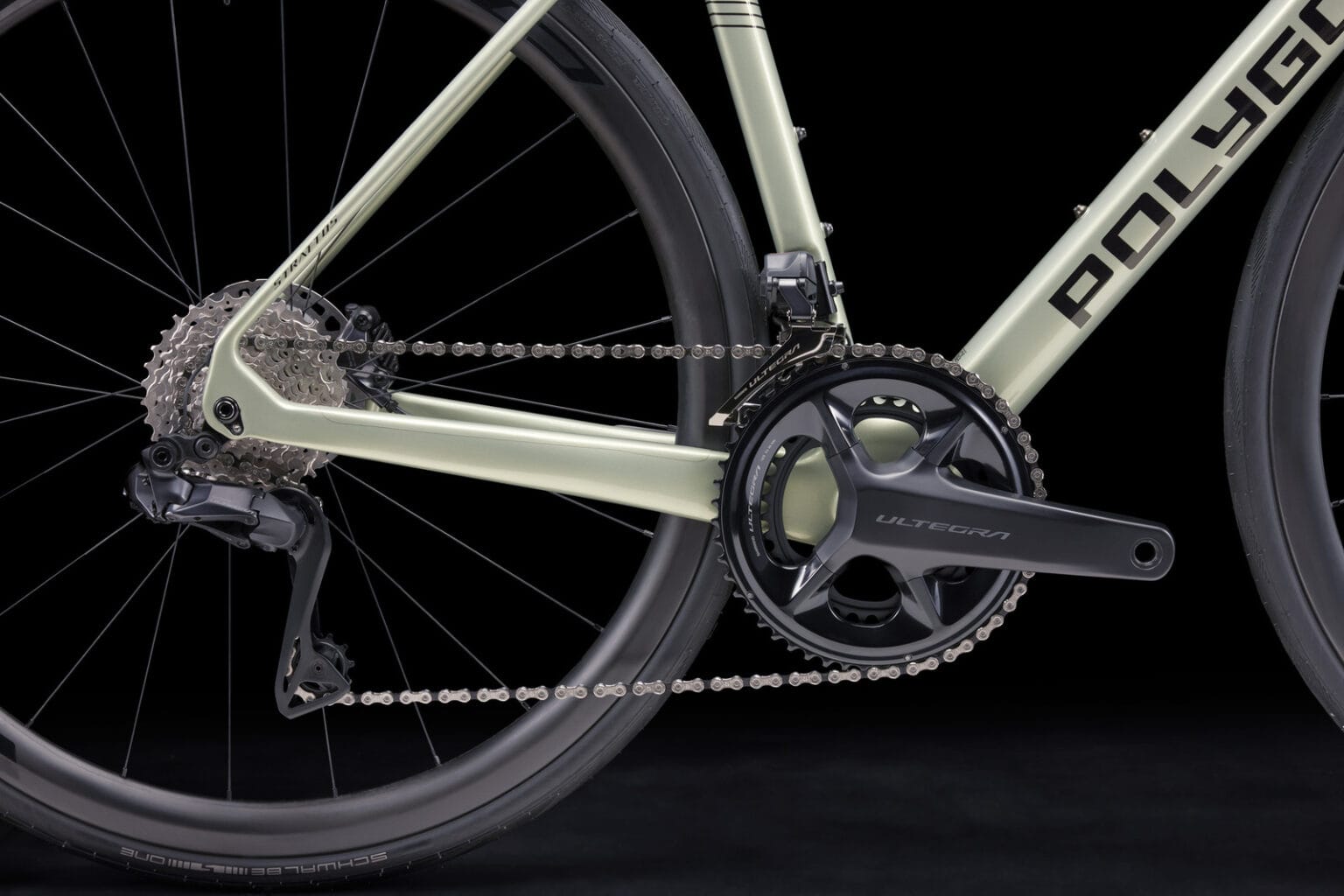

KranksettShimano Ultegra FC-R8100 52/36
KassettShimano Ultegra CS-R8101, 11-34T
BakgirShimano Ultegra Di2 RD-R8150
FramgirShimano Ultegra Di2 FD-R8150
HjulsettEntity Alloy Double Wall, 30mm Depth, 19mm Inner, 24H, Tubeless Ready
DekkSchwalbe One, Addix, Raceguard, Microskin, 700X28C, TLR

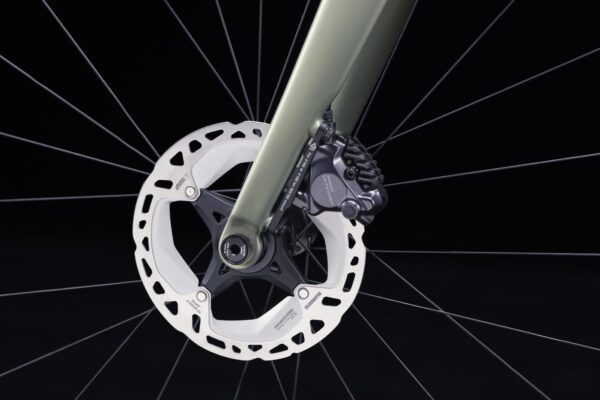

BremserShimano Ultegra BR-R8170
RotorF:160mm RT-CL800 Rotor, Center Lock, R:140mm RT-CL800 Rotor, Center Lock
SalEntity Flux2

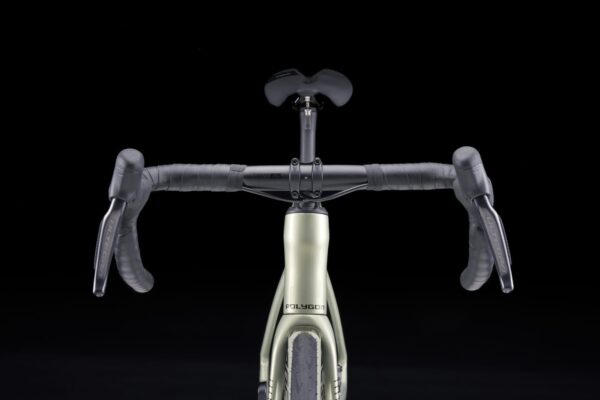

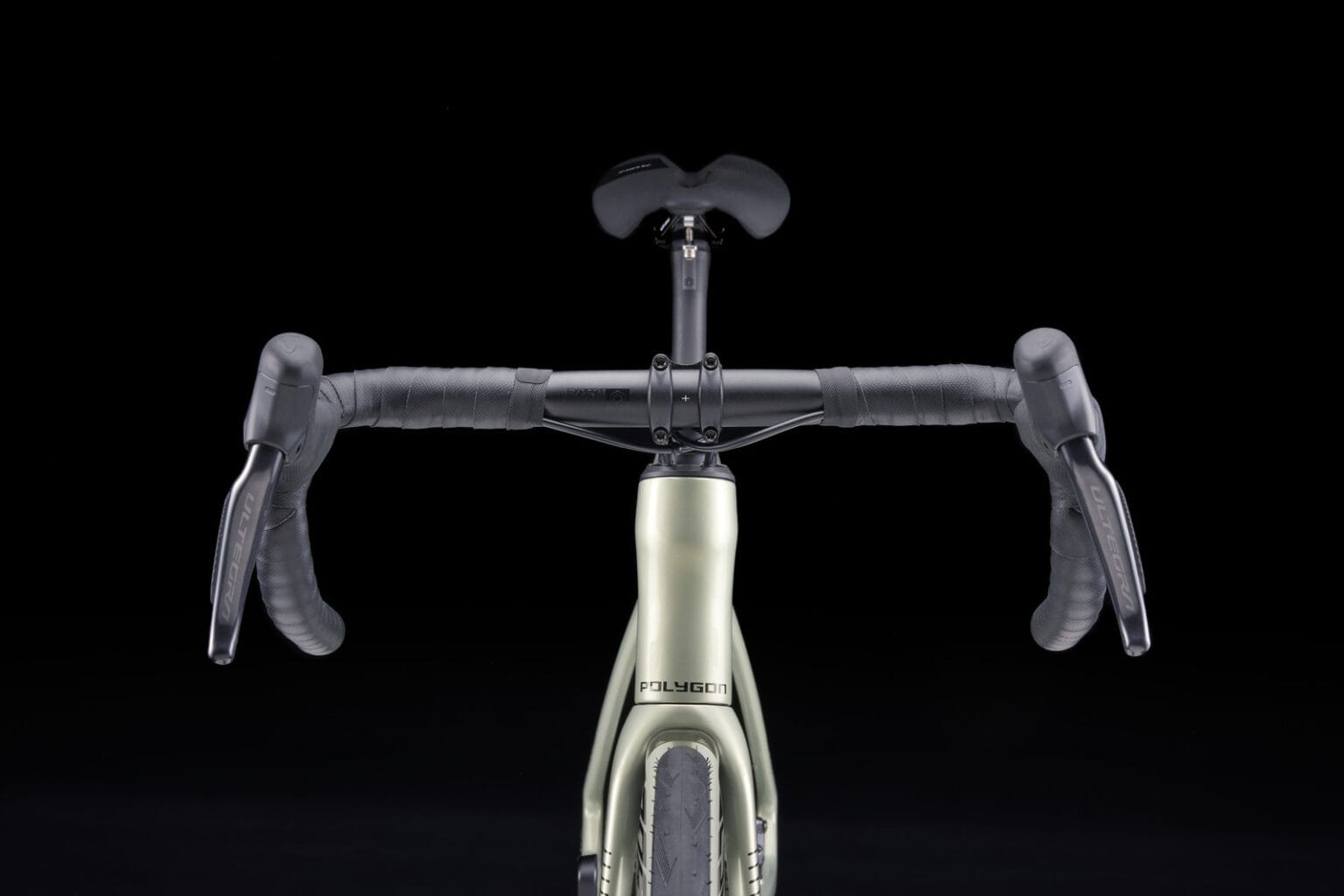

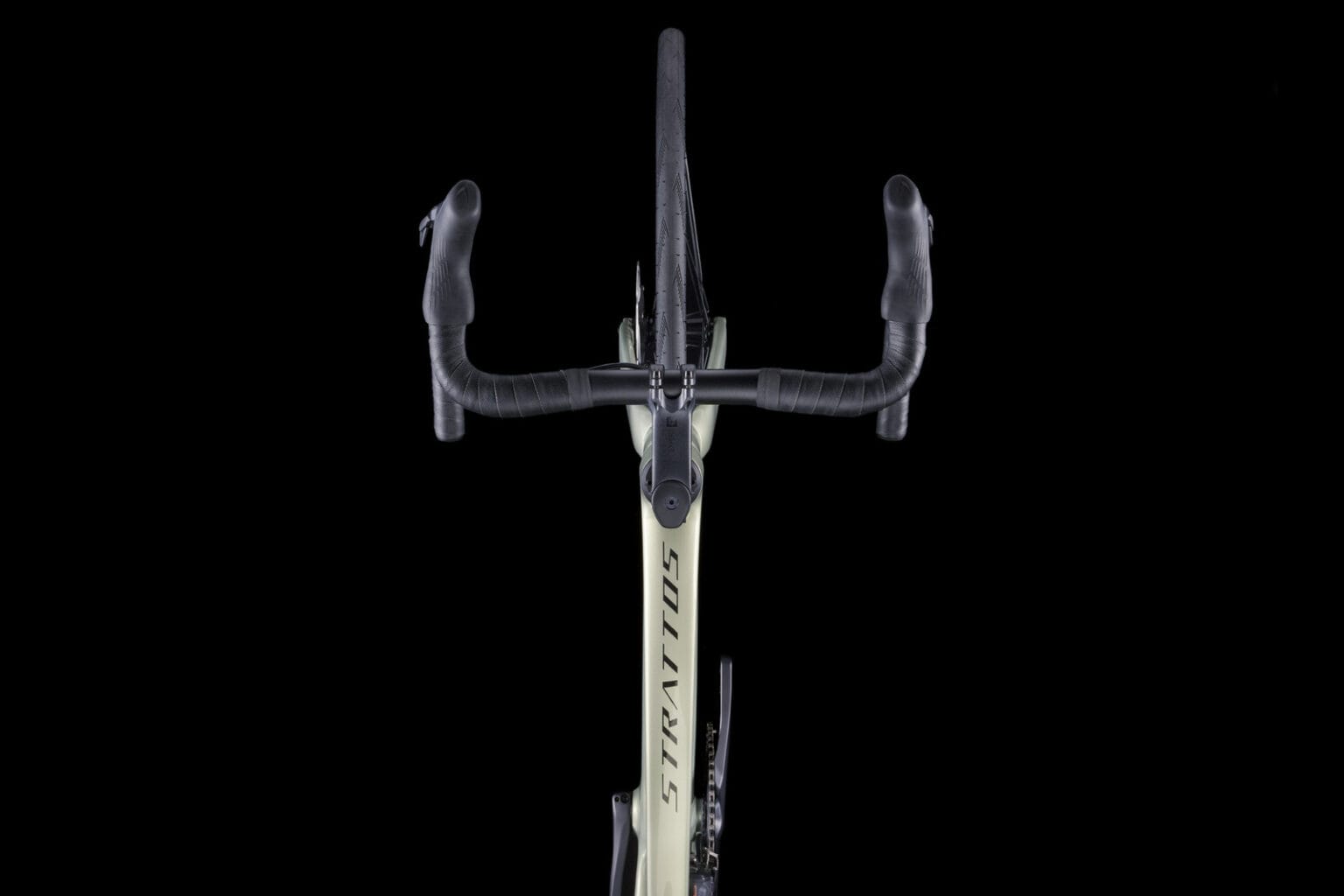

StyreEntity Xpert Alloy
StemEntity Xpert Alloy

Geometri

 XSSMLXLXXL
Rider’s height in cm154-164cm162-170cm168-176cm174-183cm180-187cm185-195cm
Crank Length170170170172.5172.5172.5
Handlebar Width400420420440440440
Stem Length9090100100110110
(A)Stack495511534558584612
(B) Reach383384387390392403
(C) Head Tube Angle7272.573737373
(D) Head Tube Length90105130155185215
(E) Seat Tube Angle7574.57473.57373
(F) Seat Tube Length454474500525554584
(G) Top Tube Effective515525540555570590
(H) Bottom Bracket Height271.5271.5274274277277
(I) Bottom Bracket Offset72.572.5707067.567.5
(J) Chainstay415415415415417417
(K) Wheel Base97697798599510081028
(L) Standover Height729749776801832862
Handlebar Width400400400420420420
Stem Length9090100100110110
Crank Length165170170170172.5172.5

Nedlastinger

STRATTOS CARBON Tech Manual V1.4

Størrelse

XXS, XS, S, M, L, XL, XXL
