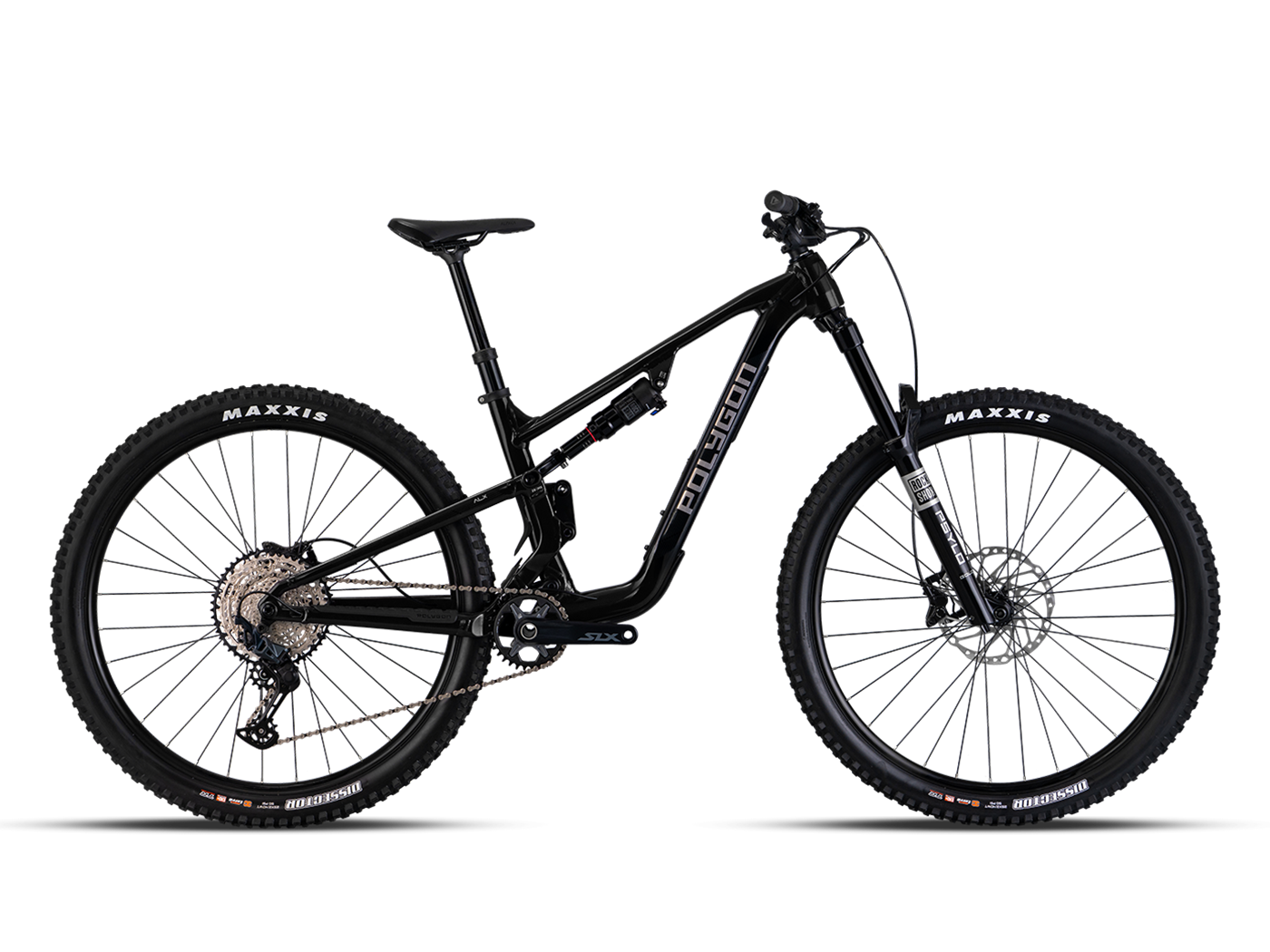

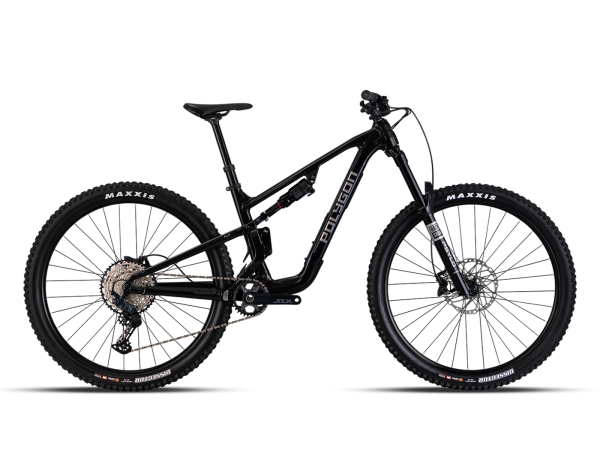

Name: Polygon Collosus T6
Brand: Polygon
SKU: 10714
Price: 29999.00 NOK
Availability: BackOrder

Geometri

	S	M	L
Height (cm)	155-165	165-175	175-185	185-195
Seat Tube Length (A)	390	400	415	430
Seat Tube Angle (B)	71	71	71	71
Effective Seat Tube Angle (C)	77	77	77	77
Head Tube Length (D)	90	95	105	120
Head Tube Angle (E)	64.5	64.5	64.5	64.5
Effective Top Tube (F)	572	598	621	646
Bb Height (G)	338	338	338	338
Bb Offset (H)	38	38	38	38
Chainstay Length (I)	430	430	435	435
Wheelbase (J)	1192	1219	1248	1274
Frame Reach (K)	440	465	485	505
Frame Stack (L)	613	618	627	640
Standover Height (M)	687	691	704	703

Nedlastinger

Manual-Owner_Collosus-T-Alloy_R1

Spesifikasjoner

SERIES : COLLOSUS T6
MODEL CATEGORY : TRAIL FULL SUSPENSION 29″
FRAME : ALX TRAIL SADDLE : FIZIK TERRA ALPACA X5
SIZES (CT) : S, M, L, XL RAIL : ALLOY ø7mm
FRAME COLOR : BLACK / PURPLE
DECAL COLOR : SILVER / RED SEATPOST : TRANZ X JD-YSP39KL 150mm (S, M) / 170mm (L, XL) TRAVEL
HEAD TUBE I.D. : 51/59mm D x L : 34.9 x 456mm (S, M) / 496mm (L, XL)
BRAKE ROUTE : INTERNAL OFFSET : 0mm
SHIFTER ROUTE : INTERNAL SEAT CLAMP : 38.9mm BOLT TYPE
FRONT DERAILLEUR : –
BB SHELL : BSA THREADED 73mm DRIVETRAIN
ISCG MOUNT : ISCG05 CRANKSET : SHIMANO SLX FC-M7120-1 BOOST, 32T
BRAKE TYPE : DISC BRAKE POST 180mm CRANKSET – MAX CHAIN RING : SINGLE, 34T
HUB SPACING : 12x148mm CRANKSET – CRANK ARM : 165mm
FOR THRU AXLE TP1.0 L:174mm PEDAL : ALLOY FLAT PEDAL W/ REPLACEABLE PIN & REFLECTOR
BOTTOM BRACKET : SHIMANO 2-PIECE CRANKSET BSA THREADED 73mm
FORK : ROCKSHOX PSYLO GOLD RC 160mm CHAIN : KMC X12
FEATURES : AIR SPRING, REBOUND ADJUSTMENT, COMPRESSION CASSETTE SPROCKET : SHIMANO SLX CS-M7100-12,10-51T
STEERER : ALLOY TAPER 1-1/8″ TO 1-1/2″ FRONT DERAILLEUR : –
BRAKE TYPE : DISC BRAKE POST 180mm REAR DERAILLEUR : SHIMANO SLX RD-M7100-SGS DIRECT ATTACH
HUB SPACING : BOOST TA15x110mm W/ MAXLE STEALTH SHIFTING LEVER : SHIMANO SLX SL-M7100-R, 12 SPEED TRIGGER
REAR SHOCK : ROCKSHOX DELUXE SELECT+ BRAKES : SHIMANO MT420 HYDRAULIC DISC
FEATURES : AIR SPRING, COMPRESSION, REBOUND BRAKE LEVER : SHIMANO BL-M4100
E2E : 210x55mm BRAKE SET : SHIMANO BR-MT420
HARDWARE : SHAFT: M8x45mm BODY: M8X15mm ROTOR : SHIMANO SM-RT64, F:203mm R:180mm CL
HANDLEBAR : POLYGON XPERT TYRE : MAXXIS DISSECTOR 29″x2.40″
WIDTH : 780mm MAXIMUM SIZE : 29″x2.60″
BAR BORE : 35mm
RISE/DROP : 30mm WHEELS : POLYGON MT6 TUBELESS READY
BEND : 9degree RIM : ALLOY DOUBLE WALL H: 18mm W: 29mm 622-29 32H FOR TYRE 622-54/76 TL READY
FRONT HUB : SHIMANO HB-TC500 BOOST 15x110mm 32H CL
HANDLE STEM : POLYGON XPERT FRONT SPOKE : 14G STAINLESS NDS:292mm DS:294mm W/ 12mm BRASS NIPPLE
EXTENSION : 35mm REAR HUB : SHIMANO FH-TC500 BOOST 12x148mm 32H CL FOR MICROSPLINE
BAR BORE : 35mm REAR SPOKE : 14G STAINLESS NDS:292mm DS:290mm W/ 12mm BRASS NIPPLE
RISE / DROP : 0degree
EXTRAS
HEADSET : FSA NO.76 ALLOY TOP COVER, THREADLESS DROPOUT : UDH
S.H.I.S. : ZS 51/28.6 | ZS 59/40 COMPARTMENT BAG
FLIP CHIP
