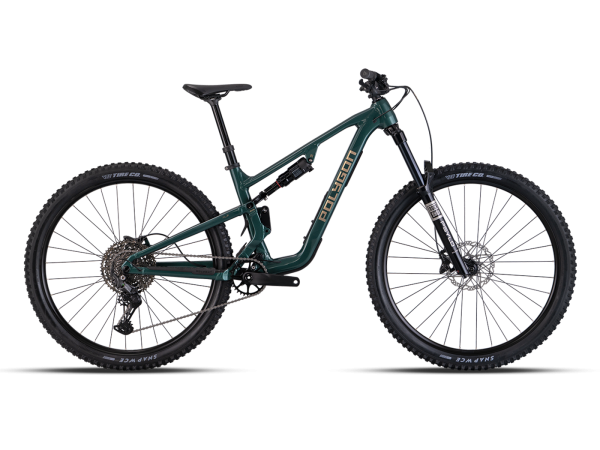

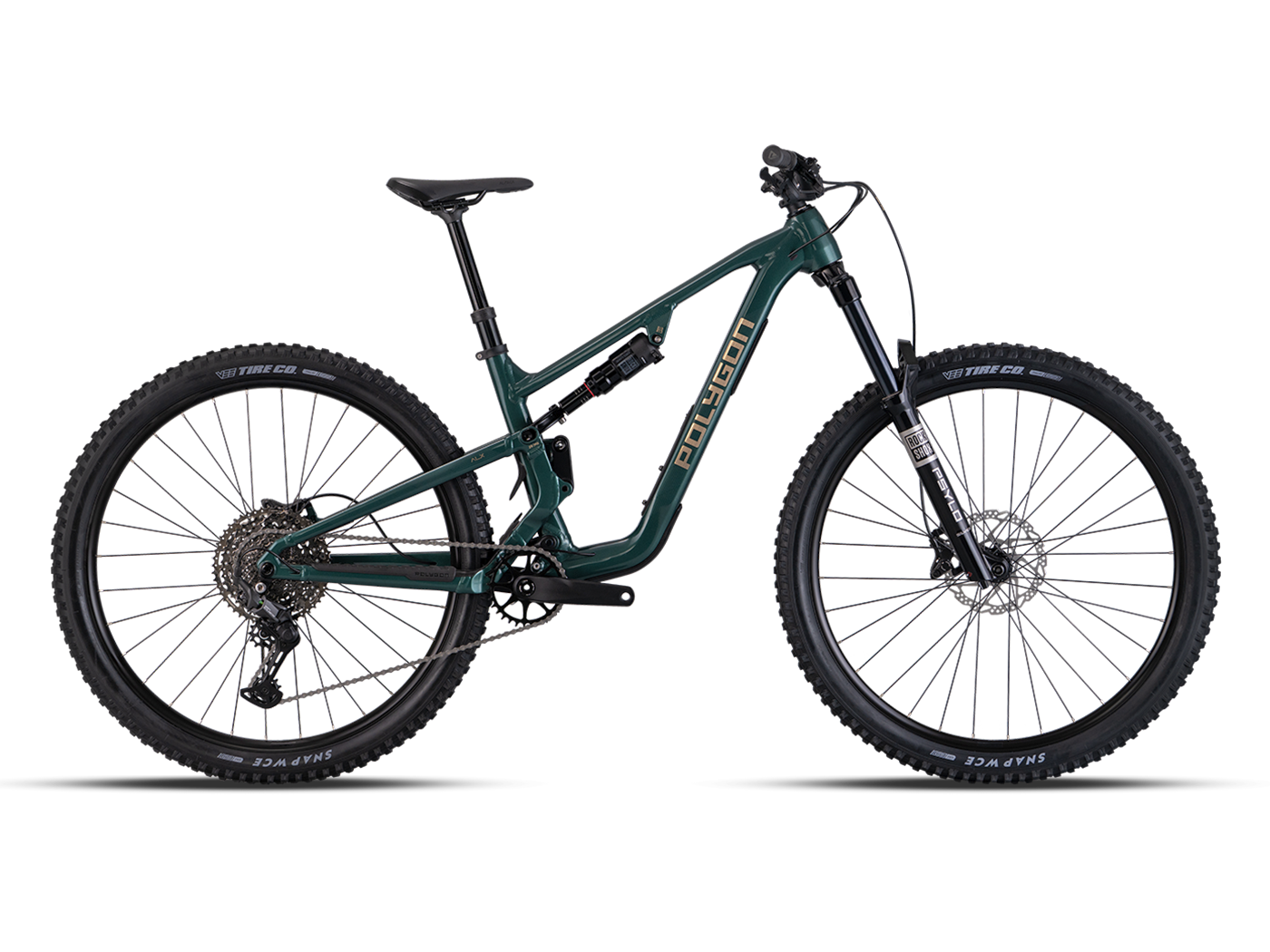

Polygon Collosus T5

Trail-orientert fulldempet terrengsykkel med aluminiumramme og leken geometri og 140/160mm vandring.

kr 26999,00

På leverandørlager. Ta kontakt for levering

Kategori: Fulldempet, SykkelMerke: Polygon
00
Sporing / tyveriforsikring
kr 1979,00
Tillegg: kr 0,00
Totalpris: kr 0,00

  S M L
Height (cm) 155-165 165-175 175-185 185-195
Seat Tube Length (A) 390 400 415 430
Seat Tube Angle (B) 71 71 71 71
Effective Seat Tube Angle (C) 77 77 77 77
Head Tube Length (D) 90 95 105 120
Head Tube Angle (E) 64.5 64.5 64.5 64.5
Effective Top Tube (F) 572 598 621 646
Bb Height (G) 338 338 338 338
Bb Offset (H) 38 38 38 38
Chainstay Length (I) 430 430 435 435
Wheelbase (J) 1192 1219 1248 1274
Frame Reach (K) 440 465 485 505
Frame Stack (L) 613 618 627 640
Standover Height (M) 687 691 704 703

Manual-Owner_Collosus-T-Alloy_R1

SERIES : COLLOSUS T5
MODEL CATEGORY : TRAIL FULL SUSPENSION 29″
FRAME : ALX TRAIL SADDLE : FIZIK TERRA ALPACA X5
SIZES (CT) : S, M, L, XL RAIL : ALLOY ø7mm
FRAME COLOR : GREEN / BLUE
DECAL COLOR : BROWN / SILVER SEATPOST : XFUSION MANIC LC 150mm (S, M) / 170mm (L, XL) TRAVEL
HEAD TUBE I.D. : 51/59mm D x L : 34.9 x 432mm (S, M) / 474mm (L, XL)
BRAKE ROUTE : INTERNAL OFFSET : 0mm
SHIFTER ROUTE : INTERNAL SEAT CLAMP : 38.9mm BOLT TYPE
FRONT DERAILLEUR : –
BB SHELL : BSA THREADED 73mm DRIVETRAIN
ISCG MOUNT : ISCG05 CRANKSET : SAMOX RAC61C CL55, 32T
BRAKE TYPE : DISC BRAKE POST 180mm CRANKSET – MAX CHAIN RING : SINGLE, 34T
HUB SPACING : 12x148mm CRANKSET – CRANK ARM : 165mm
FOR THRU AXLE TP1.0 L:174mm PEDAL : ALLOY FLAT PEDAL W/ REPLACEABLE PIN & REFLECTOR
BOTTOM BRACKET : SAMOX EB2401C BSA THREADED 73mm
FORK : ROCKSHOX PSYLO SILVER RC 160mm CHAIN : KMC XGLIDE
FEATURES : AIR SPRING, REBOUND, LO CASSETTE SPROCKET : SHIMANO CUES CS-LG400-11, 11-50T
STEERER : ALLOY TAPER 1-1/8″ TO 1-1/2″ FRONT DERAILLEUR : –
BRAKE TYPE : DISC BRAKE POST 180mm REAR DERAILLEUR : SHIMANO CUES RD-U6000-GS DIRECT ATTACH
HUB SPACING : BOOST TA15x110mm W/ MAXLE STEALTH SHIFTING LEVER : SHIMANO CUES SL-U6000-11R, 11-SPEED TRIGGER
REAR SHOCK : ROCKSHOX DELUXE SELECT BRAKES : SHIMANO MT420 HYDRAULIC DISC
FEATURES : AIR SPRING, REBOUND ADJUST, COMPRESSION BRAKE LEVER : SHIMANO BL-M4100
E2E : 210x55mm BRAKE SET : SHIMANO BR-MT420
HARDWARE : SHAFT: M8x45mm BODY: M8X15mm ROTOR : SHIMANO SM-RT54, 180mm CL
HANDLEBAR : POLYGON XPERT TYRE : VEE SNAP WCE 29″x2.35″
WIDTH : 780mm MAXIMUM SIZE : 29″x2.60″
BAR BORE : 35mm
RISE/DROP : 30mm WHEELS : POLYGON MT6 TUBELESS READY
BEND : 9degree RIM : ALLOY DOUBLE WALL H: 18mm W: 29mm 622-29 32H FOR TYRE 622-54/76 TL READY
FRONT HUB : SHIMANO HB-TC-500 BOOST 15x110mm 32H CL
HANDLE STEM : POLYGON XPERT FRONT SPOKE : 14G STAINLESS NDS:292mm DS:294mm W/ 12mm BRASS NIPPLE
EXTENSION : 35mm REAR HUB : SHIMANO FH-TC500 BOOST 12x148mm 32H CL FOR SPROCKET
BAR BORE : 35mm REAR SPOKE : 14G STAINLESS NDS:292mm DS:290mm W/ 12mm BRASS NIPPLE
RISE / DROP : 0degree
EXTRAS
HEADSET : FSA NO.76 ALLOY TOP COVER, THREADLESS DROPOUT : UDH
S.H.I.S. : ZS 51/28.6 | ZS 59/40 COMPARTMENT BAG
FLIP CHIP

Størrelse

S, M, L, XL
Farge

Grønn
